In IP Address, enter the IP Address you obtained from your Network Administrator for the WAN
Port of SARVAM UMG. Make sure that the IP Address does not conflict with that of any other
device on the LAN. Default: 192.168.1.100
•
In Subnet Mask, enter the Subnet Mask you obtained from your Network Administrator for the
WAN Port. Default: 255.255.255.0
•
In Gateway, enter the IP Address of the Router's LAN Interface as the Default Gateway IP Address.
Default: 192.168.1.254
•
Select DHCP, if your network uses DHCP Addressing. Whenever SARVAM UMG is restarted, the
DHCP server will dynamically assign an IP Address, Subnet Mask and Gateway Address to the WAN
Port. You have to configure the Domain Name Server (DNS) Address only, if not already provided by
your Internet Service Provider.
•
Select PPPoE, if your network uses PPPoE addressing. The PPPoE server will automatically assign an
IP Address, Subnet Mask and Gateway Address to the WAN Port of SARVAM UMG. You need to
configure the following parameters provided by your Internet Service Provider:
•
In PPPoE User ID, enter the User Name provided by the Internet Service Provider. The User ID can
be a maximum of 64 characters.
•
In PPPoE Password, enter the User Password provided by the Internet Service Provider. The
password can be a maximum of 64 characters.
•
In PPPoE Service Name, enter the Service Name, if provided by your Internet Service Provider.
The Service Name may be a maximum of 64 characters. If Service Name is not provided, leave this
blank.

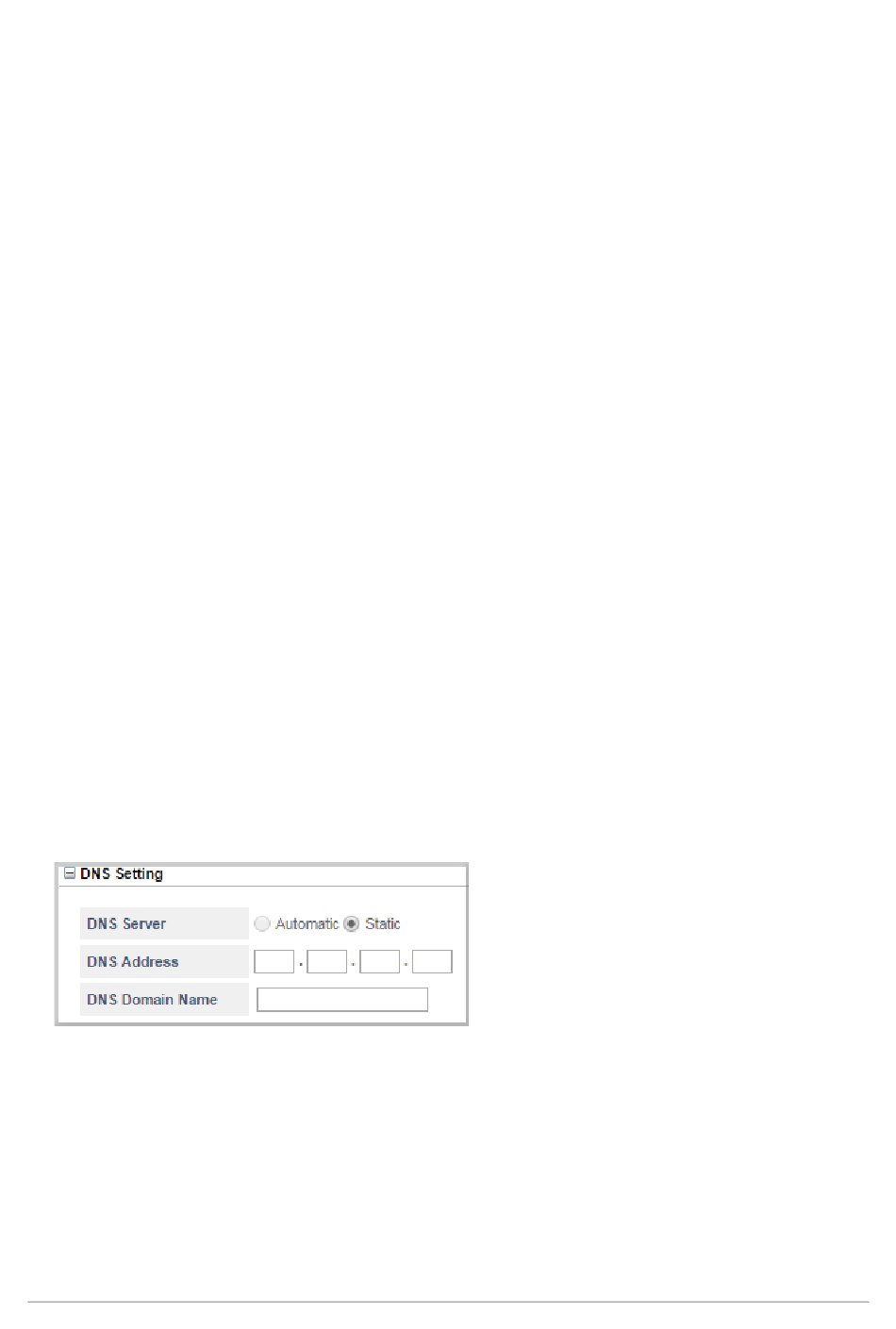

DNS Setting
Configure the Domain Name Server (DNS) settings as provided by your Internet Service Provider. You may consult
your Network Administrator.
•
Click DNS Setting to expand.
•
Select DNS Server as Automatic or Static according to the Connection Type (IP Addressing scheme)
used by the network.
•
Select Static if:
•
your network uses Static IP Addressing.
•
your network uses DHCP or PPPoE, but the DHCP/ PPPoE server does not provide DNS Address
automatically.
Matrix SARVAM UMG System Manual
92
