Matrix Telecom SARVAM UMG System Manual page 470

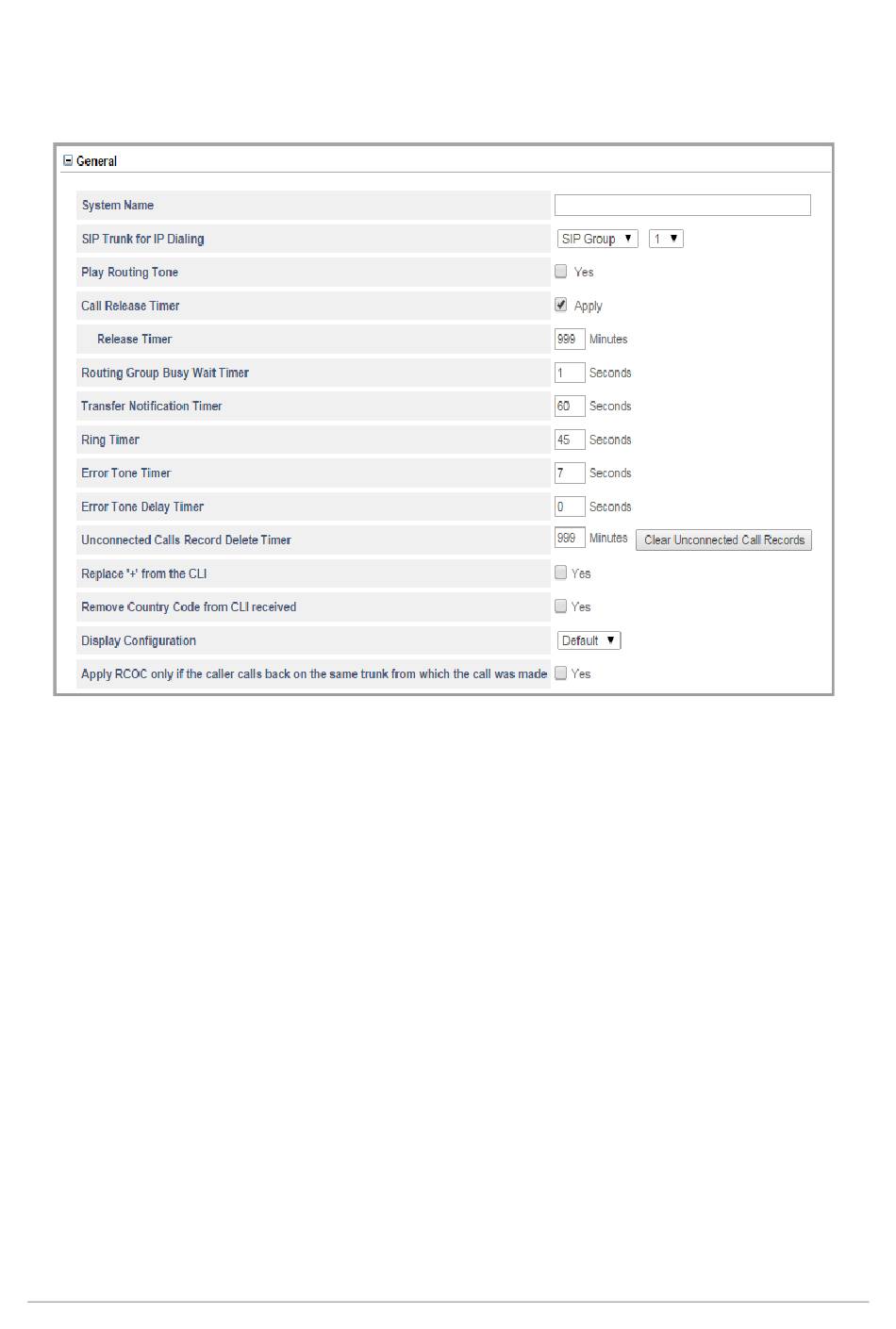

General Parameters
• Click General to expand and configure the following.
• In System Name, enter a name that you wish to assign to SARVAM UMG. Naming SARVAM UMG will
serve as an identifier when there are more than one SARVAM UMGs connected in the same LAN
network.
Valid range is 40 characters. Default: Blank.
• To use the IP Dialing feature, that is, to directly dial IP Addresses, in SIP Trunk for IP Dialing select a
SIP Trunk or SIP Group for routing the call to the IP Address.
The valid range for the SIP Trunk is 001 to 250 and for SIP Group is 1 to 9.
When you assign a SIP Trunk, make sure you have enabled the SIP Trunk and configured its
necessary parameters. For further details, see
When you assign a SIP Group, make sure you have configured the SIP Group. For further details, see
"Group".
Default: SIP Group 1
To know more about this feature, see
Matrix SARVAM UMG System Manual
"SIP Trunk" under Basic Settings.
"IP Dialing".
464
