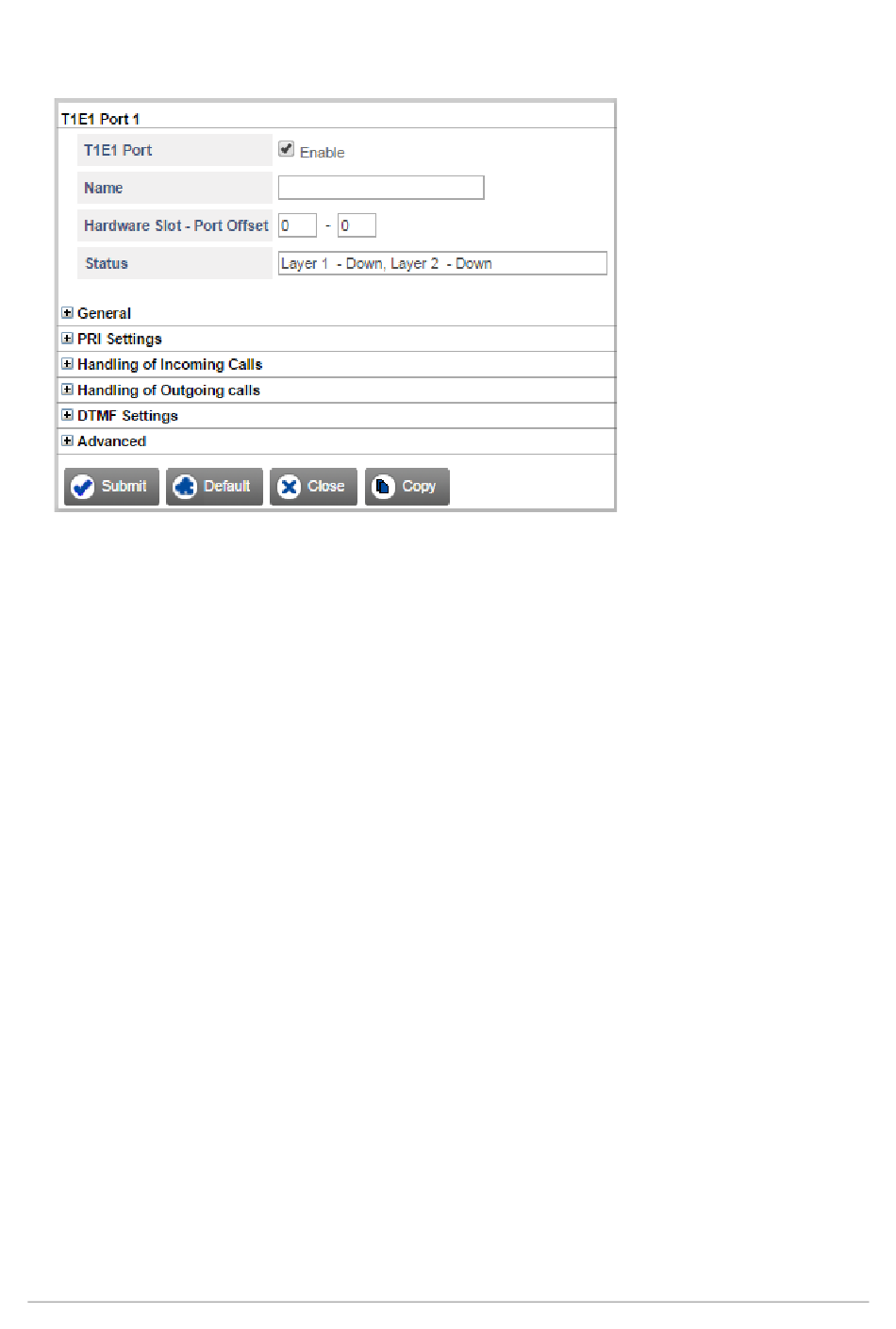

The T1E1 Port-1 window opens.
• Keep the T1E1 Port check box enabled.
Clear the T1E1 Port Enable check box only when you do not want to use this T1E1 Port. Default:
Enabled.
• You can assign a Name to the T1E1 Port, which will be displayed to the called party, if the called party
telephone instrument supports name display.
The name you assign may consist of a maximum of 24 characters. Default: Blank.
• SARVAM UMG will assign the Hardware Slot - Port Offset automatically, when any card is inserted in
the system.
Hardware slot is the number of the universal slot of SARVAM UMG in which the T1E1 Card is inserted.
Range of slot number is 1-12. Port is the number of T1E1 hardware port on the card to which the T1E1
line is connected.
However, if required, you may change the Hardware Slot and Port assigned to the T1E1 software port.
In this case, enter the desired Hardware Slot and Port number.
If you want to de-assign the Hardware Slot and Port, enter '00' in both fields. By default, Hardware Slot-
Port is 00–00.
• Status displays the status of the T1E1 Port.
