FXS Port

SARVAM UMG supports FXS Ports to which you can connect a Gateway or any standard telephone instrument.
To configure the parameters of the FXS Port,
• Click the Basic Settings link to expand.
• Click the FXS Port link.

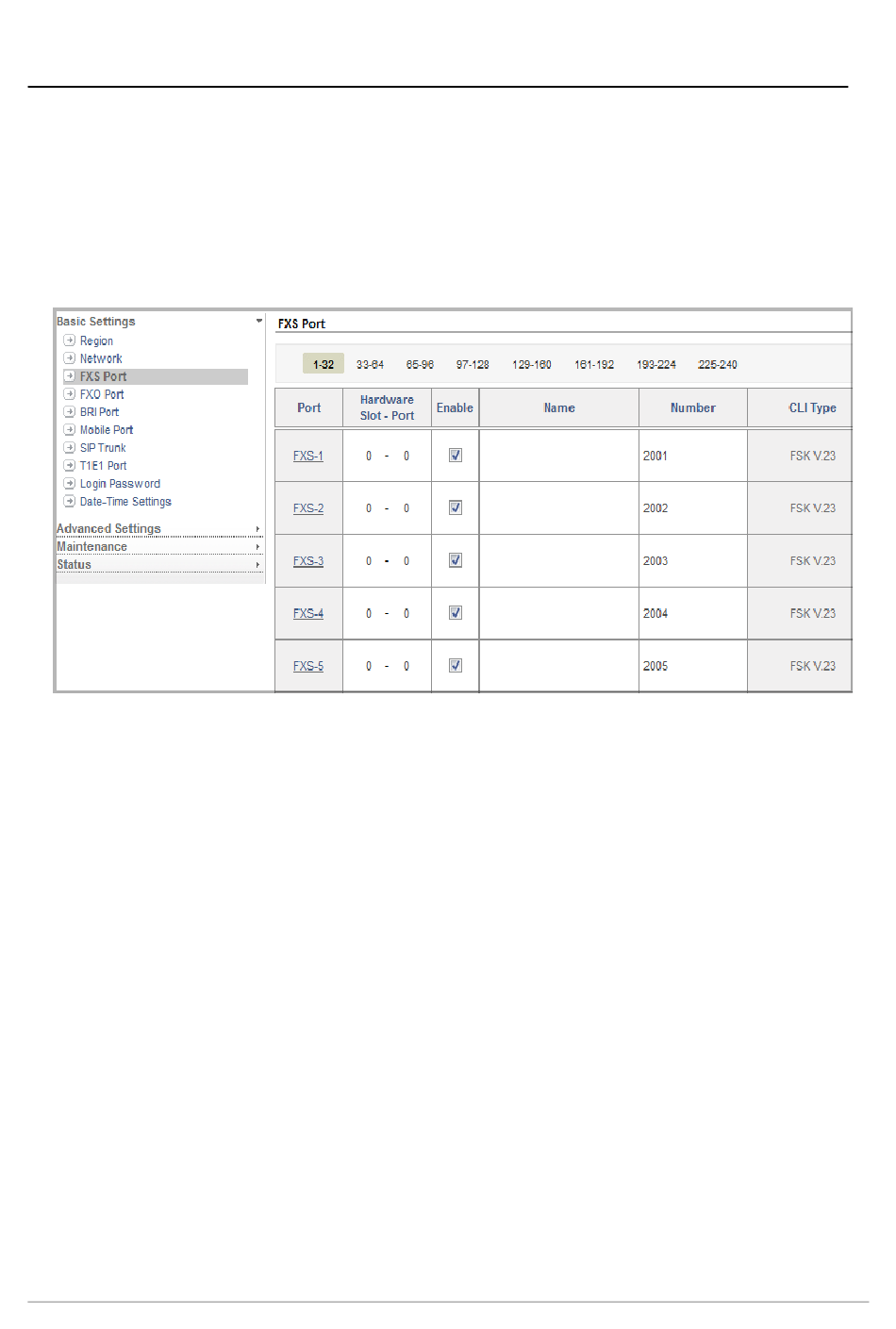

The FXS Port page displays the following parameters:
• Port: It displays the FXS Port numbers. Click on the desired FXS Port number to configure the Port
Parameters.
• Hardware Slot-Port: The SARVAM UMG can automatically detect and assign the Hardware Slot and Port
numbers to the FXS software ports. However, if required you may change the Hardware Slot and Port
assigned to the FXS software port. In this case, enter the desired Hardware Slot and Port number.
• Enable: Keep the FXS Ports enabled. Clear the FXS Port Enable check box, only if you do not want to
use the respective port. Default: Enabled.
• Name: Assign a Name to the FXS Port for identification. The Name can be a maximum of 24 characters.
• Number: Assign a Number to the FXS Port for identification. The Number can be a maximum of 16 digits.
• CLI Type: It displays the type of CLI you select — DTMF, FSK V2.3, FSK Bellcore.
• Outgoing Call Routing: It displays the Outgoing Call Routing Method you select.
To configure the FXS Port parameters,
• Click FXS-1.
