Matrix Telecom SARVAM UMG System Manual page 121

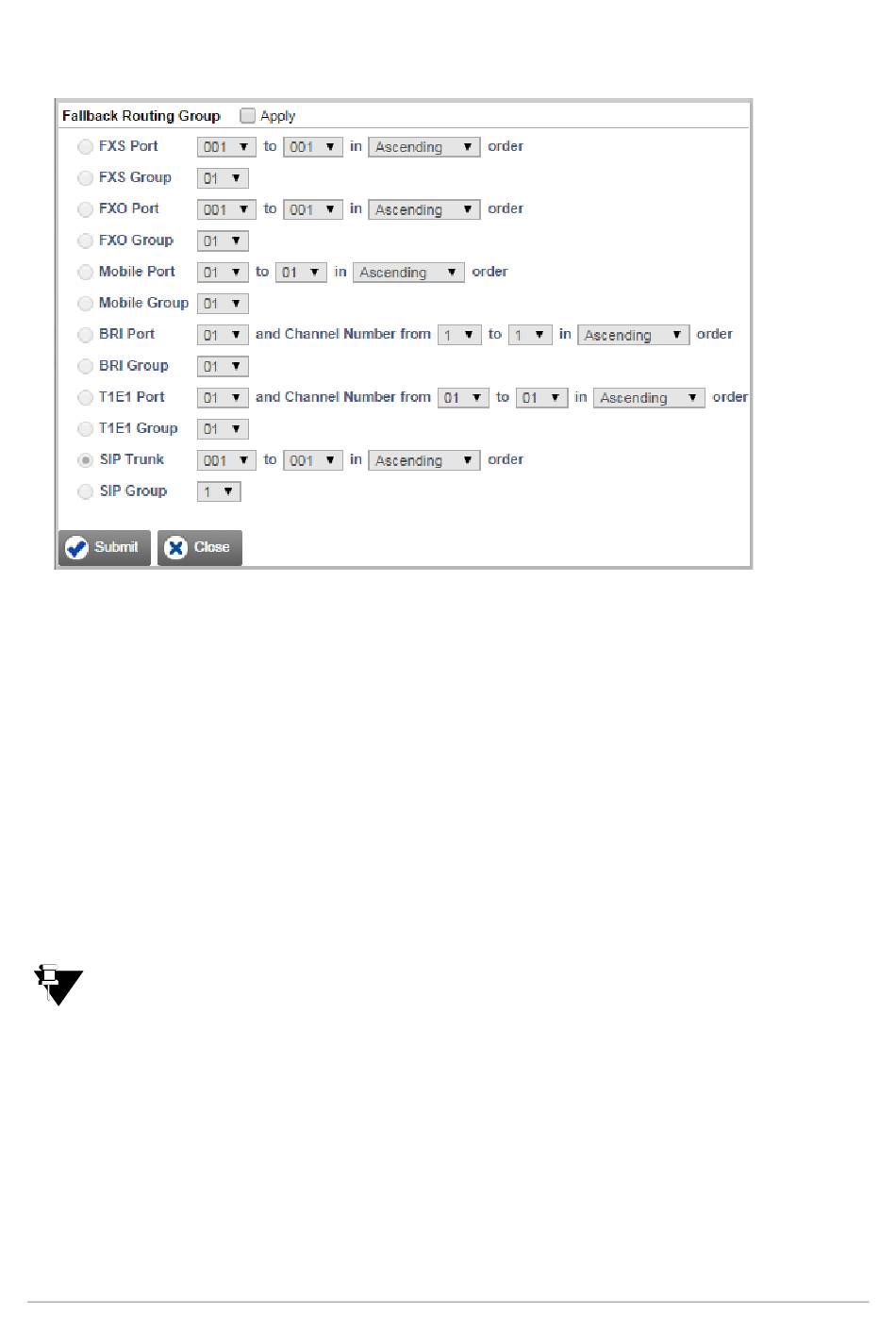

• You may create the Fallback Routing Group.
• To do this,
• Select the Apply check box.
• Follow the same instructions provided earlier for creating sequential and not-sequential groups of FXS
Ports, FXO Ports, Mobile Ports, BRI Ports, T1E1 Ports and SIP Trunks.
• Click Submit to save changes. The Edit Entry window closes.
• The changes appear in the FXS Port - Destination Port Determination - Destination Number Based
table.
• Follow the same steps as above to edit another entry to this table.
• To delete an entry, select the check box and click the Delete button.
If there are multiple entries in the Destination Number Based table, to search a particular entry in the table,
under Testing enter the desired number to know which entry would be selected for routing.
• The table can have a maximum of 300 entries. In the case of T1E1 and BRI Ports, the table can have a
maximum of 250 entries.
115 Matrix SARVAM UMG System Manual
