SIP Trunking with Elastix

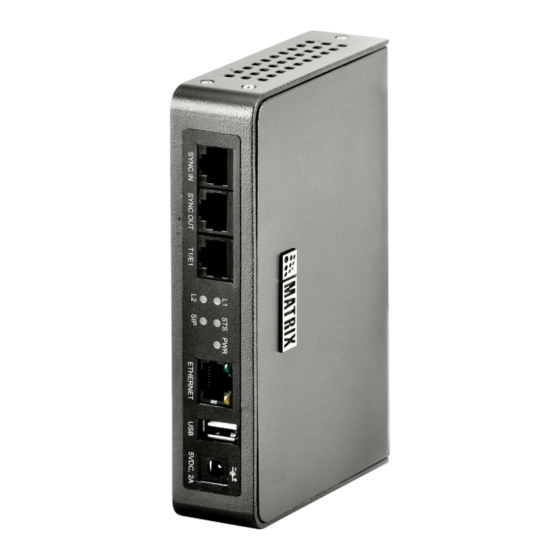

Configuration Guide for Matrix SETU VTEP

Advertisement

Table of Contents
loading

Related Manuals for Matrix Telecom SETU VTEP

Summary of Contents for Matrix Telecom SETU VTEP

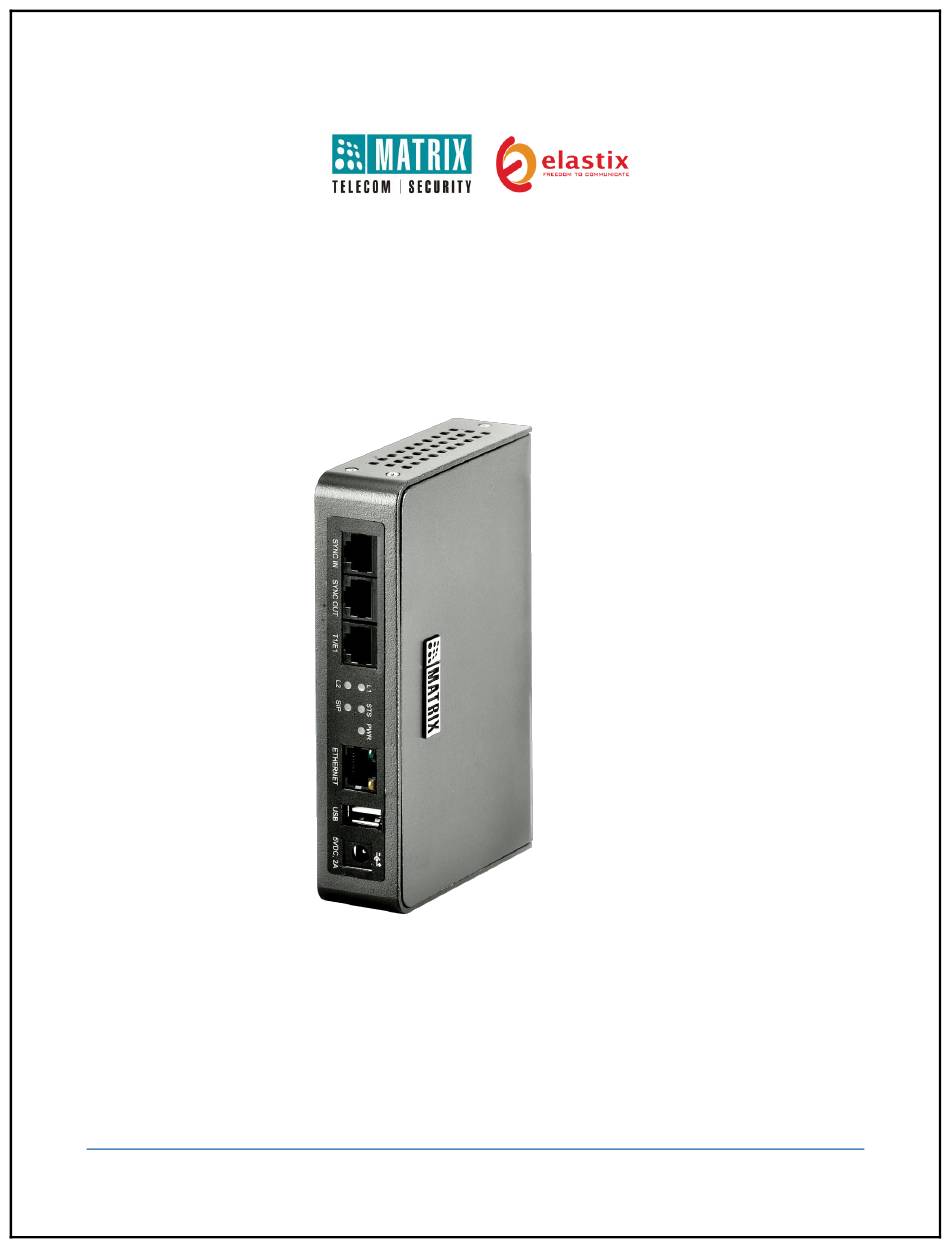

  • Page 1 SIP Trunking with Elastix Configuration Guide for Matrix SETU VTEP...

  • Page 2: Table Of Contents

    Contents Setup Diagram SIP Trunk Configuration in Elastix for SETU VTEP Outgoing Call configuration in Elastix Incoming call configuration in Elastix SIP Trunk Configuration in SETU VTEP for Elastix E1 to SIP Routing Configuration in SETU VTEP FAX Configuration in SETU VTEP...

  • Page 3: Setup Diagram

    Description Server OS CentOS release 5.7 (Kernel 2.6.18-274.e15 on an i686) Software Type Elastix 2.4.0 Elastix (2.4.0) Elastix-2.4.0-Stable-i386-bin-04Feb2013 Software version Test Setup Equipment: Equipment Model Version SETU VTEP V1R9 Analog Telephone SETU VTEP configuration guide for Elastix Page | 3...

  • Page 4: Sip Trunk Configuration In Elastix For Setu Vtep

    SIP Trunk configuration in Elastix for SETU VTEP  Open the Web GUI of Elastix server in web browser as shown below (IP of server will be same as IP of System on which Elastix is installed). (here, 192.168.51.6 IP is allocated for Elastix WEB http://192.168.51.6/admin/config.php#...
  • Page 5 IP address of VTEP. (i.e. 192.168.51.238) o type=peer  Peer to Peer trunk between VTEP and Elastix o dtmfmode=rfc2833  DTMF detection and Out-dial mode is set to rfc2833(OUTBAND)  Click on Submit changes. SETU VTEP configuration guide for Elastix Page | 5...
  • Page 6  Click on Apply Configuration Changes Here  New configuration setting will be saved and Elastix will be reloaded SETU VTEP configuration guide for Elastix Page | 6...

  • Page 7: Outgoing Call Configuration In Elastix

     In Trunk Sequence for Matched Routes configure the SIP trunk which we created.(In this example, we have created VTEP)  Click on Submit Changes and Apply Configuration Changes Here as well. SETU VTEP configuration guide for Elastix Page | 7...
  • Page 8 SETU VTEP configuration guide for Elastix Page | 8...

  • Page 9: Incoming Call Configuration In Elastix

     Configure Description field as name of Incoming route. (In this example it is configured as Incoming_VTEP )  Set Destination for Incoming call Router ( selected 7700 extension in Example)  Click on Submit  Click on Apply Configuration Changes Here. SETU VTEP configuration guide for Elastix Page | 9...
  • Page 10 SETU VTEP configuration guide for Elastix Page | 10...

  • Page 11: Sip Trunk Configuration In Setu Vtep For Elastix

     Open the browser, Internet Explorer/Mozilla Firefox, on the standalone computer/LAN PC to which the Network Port of SETU VTEP is connected  Enter the current IP address of Network Port of your SETU VTEP in the address bar of the browser.
  • Page 12  For the SIP Trunk number you select, make sure the SIP Trunk Enable check box is selected.  Assign a Name to the SIP trunk as identification; for example, Elastix. SETU VTEP configuration guide for Elastix Page | 12...
  • Page 13 Registrar settings:  Click Registrar Settings to expand. In SIP Trunk Mode, select Peer to peer.  Click on Arrow Button beside peer to peer. A second window will pop-up SETU VTEP configuration guide for Elastix Page | 13...
  • Page 14  Third window will open. Configure IP of Asterisk in Destination Address Field  Click Submit and Close to close 3 window  Close 2 windows by clicking on Close button  Click on Submit in main window to save SETU VTEP configuration guide for Elastix Page | 14...
  • Page 15  Make sure only G.711 (A-law) and G.711 (μ- Law) remain in the Selected Codecs list box. You may set one of these codecs as the First preference, by selecting it and using the UP ARROW  Click Submit to save SETU VTEP configuration guide for Elastix Page | 15...
  • Page 16  In Route all Incoming calls( with CLI & without CLI ) option configure to the called party number  In Select Destination for Routing Calls Configure Fixed  Click on submit SETU VTEP configuration guide for Elastix Page | 16...
  • Page 17  Tick mark flag Connect Source Port When 183 ( Session Progress) is received on SIP  In SIP ID FROM Header of Invite message field configure Caller Id Received on Source Port  Click on submit SETU VTEP configuration guide for Elastix Page | 17...

  • Page 18: E1 To Sip Routing Configuration In Setu Vtep

    E1 to SIP Routing Configuration in SETU VTEP  Under Basic Settings on the left navigation bar, click the T1E1 Port. The T1E1 parameters page opens.  Click Handling of Outgoing Calls to expand.  Select Radio button Port Wise ...
  • Page 19  Tick mark flag Connect Source Port when Progress Indicator is Received on T1E1 Port  Click on Submit in main window to save SETU VTEP configuration guide for Elastix Page | 19...

  • Page 20: Fax Configuration In Setu Vtep

    Fax Configuration in SETU VTEP:  Click Advanced Settings to expand.  Default Fax protocol is T.38. You can configure Pass-through or T.38 FAX by selecting respective Radio Button. SETU VTEP configuration guide for Elastix Page | 20...

  • Page 21: Fax Configuration In Elastix

     After allocating above commands Fax with T.38 protocol works if same is set at client device also. Viewing SIP Trunk Status in SETU VTEP Once you have completed configuring the SIP Trunk, you may view its status. To do this, ...
