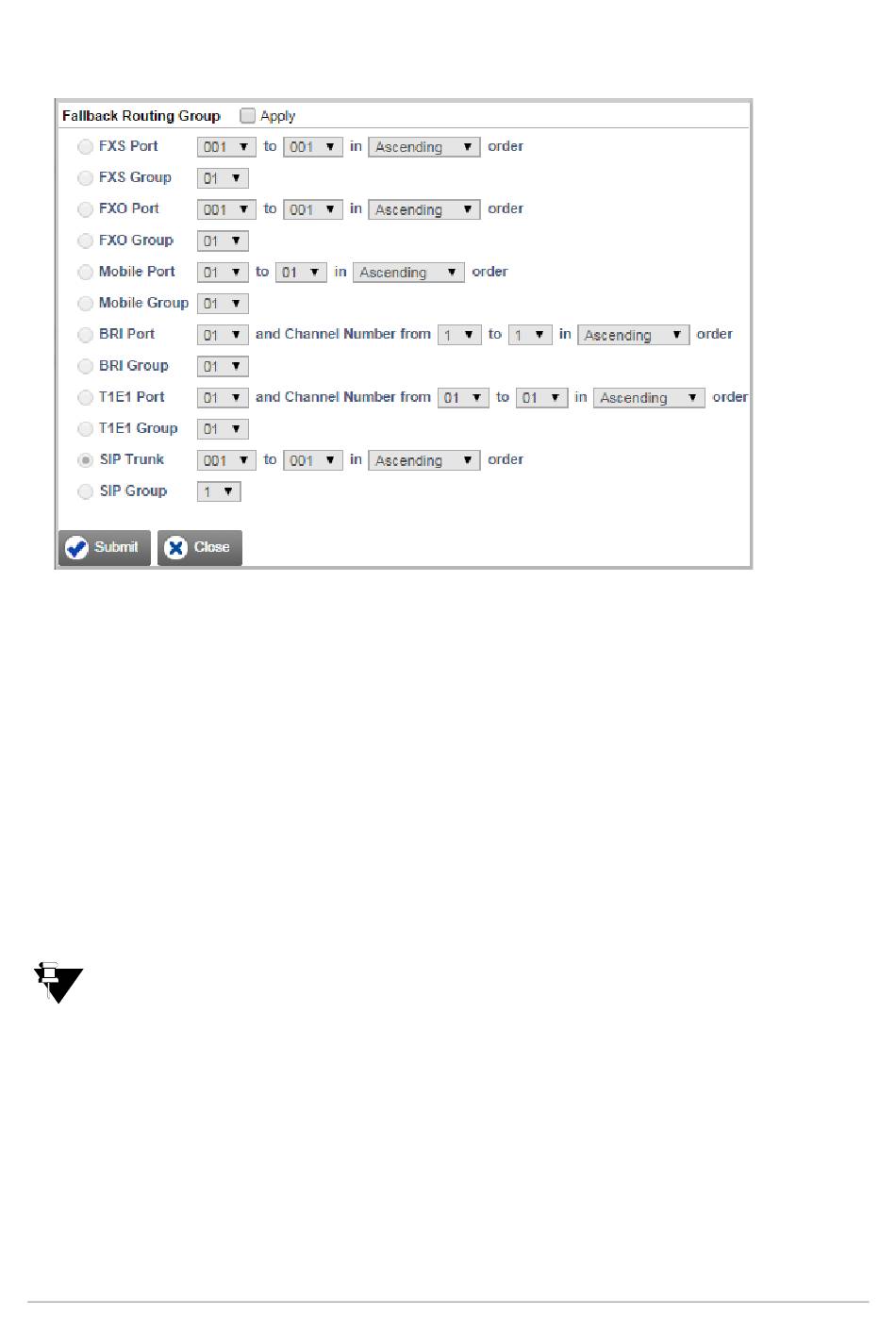

• You may create the Fallback Routing Group.
• To do this,
• Select the Apply check box.
• Follow the same instructions provided earlier for creating sequential and not-sequential groups of FXS
Ports, FXO Ports, Mobile Ports, BRI Ports, T1E1 Ports and SIP Trunks.
• Click Submit to save changes. The Add Entry window closes.
• The entry you added appears in the T1E1 Port - Destination Port Determination - Destination Number
Based table.
• Follow the same steps as above to add another entry to this table.
• To delete an entry, select the check box and click the Delete button.
If there are multiple entries in the Destination Number Based table, to search a particular entry in the table,
under Testing enter the desired number to know which entry would be selected for routing.
• By default, SIP Trunk 1-1 (Ascending) is assigned as the Routing Group, for routing calls from numbers
that do not match with any of the destination numbers you configured (No Match Found).
To change the default Routing Group and to create the Fallback Routing Group for the No Match Found
numbers entry,
