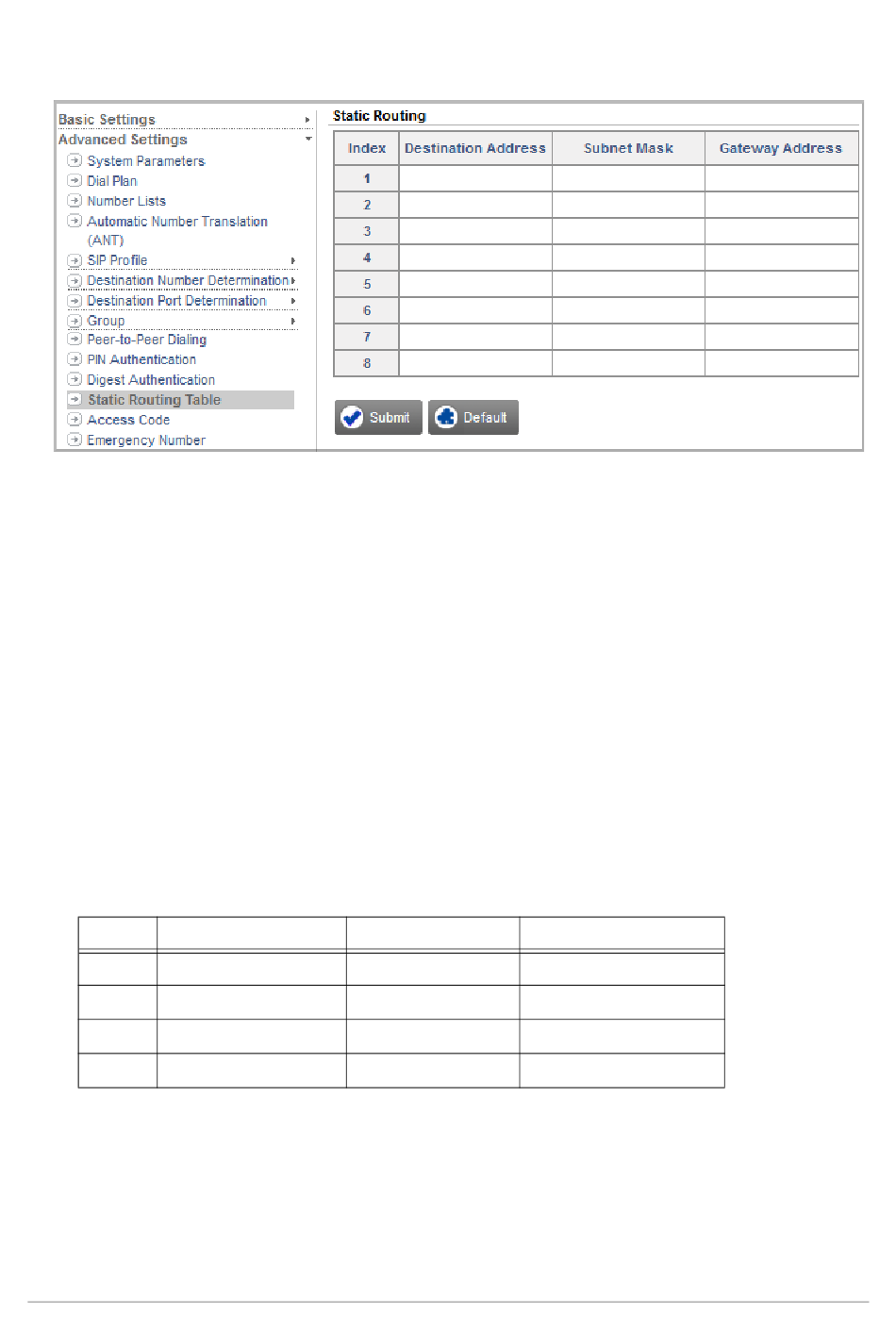

• The Static Routing Table page opens.
The Static Routing Table allows you to configure upto 8 entries. Each entry is stored against an Index
number.
For each entry, you must configure the following:
• In Destination Address, enter the address of the final destination where the call is to be made. This
can be a device IP Address or Network Address.
• In Subnet Mask, enter the subnet mask to be applied on the destination address.
• In Gateway Address, enter the IP address of the node where the IP packets are to be sent. Generally,
it is the IP address of the LAN interface of the Router.
The Gateway Address must be in the same subnet as SARVAM UMG.
• Click Submit to save your entries.
As per the above example, the Static Routing Table of SARVAM UMG at Location A should be configured as:
Index Destination Address
1
2
:
8
• The Destination Address 192.168.2.0 specifies the network address of Location B.
• The Subnet Mask is the mask to be applied on the Destination address.
• The Gateway Address 192.168.1.1 specifies the LAN address of the Router A which connects location A
and location B.
541
192.168.2.0
Subnet Mask
255.255.255.0
Gateway Address
192.168.1.1
