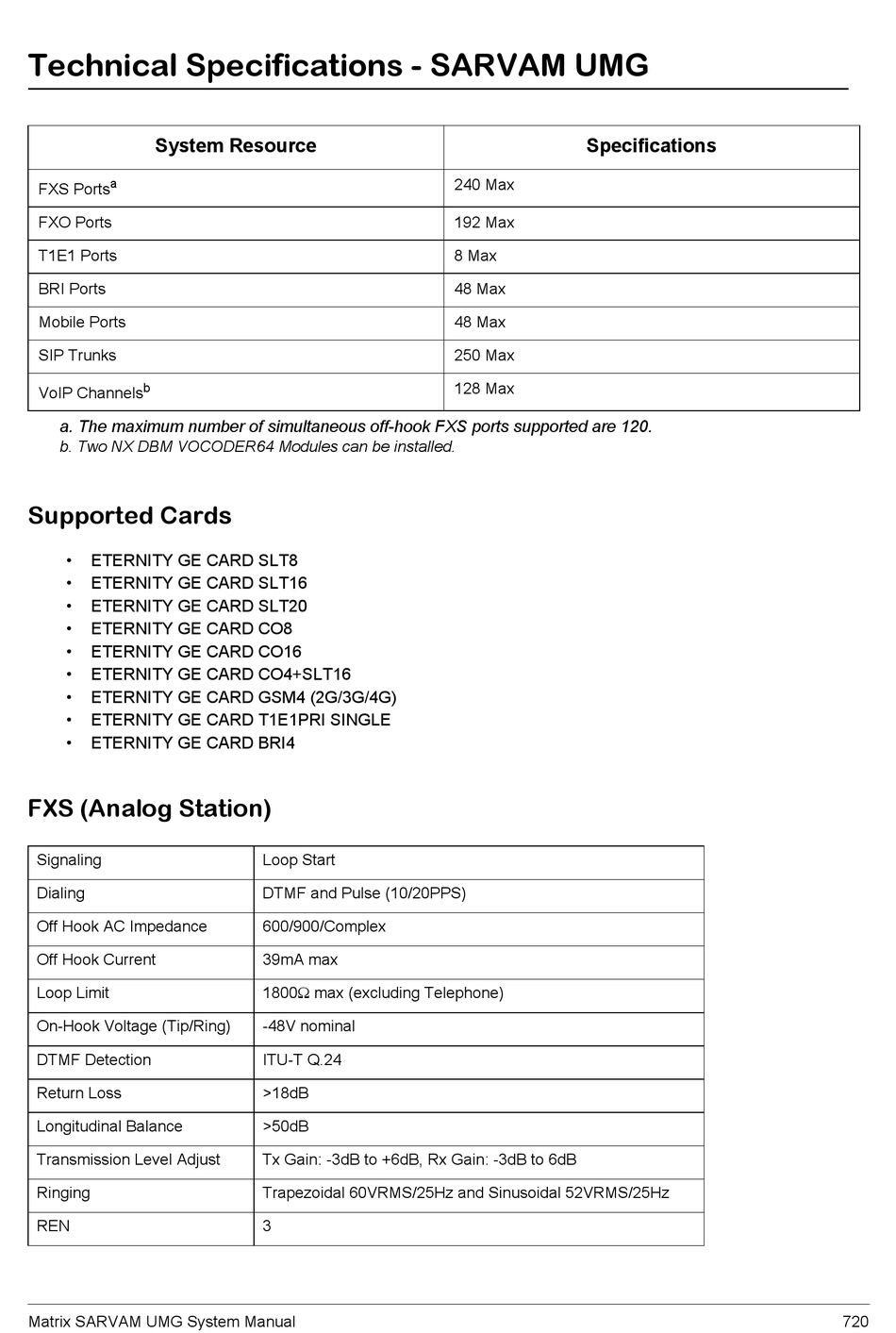

Technical Specifications - SARVAM UMG

System Resource
a
FXS Ports
FXO Ports
T1E1 Ports
BRI Ports
Mobile Ports
SIP Trunks
b
VoIP Channels
a. The maximum number of simultaneous off-hook FXS ports supported are 120.
b. Two NX DBM VOCODER64 Modules can be installed.
Supported Cards
• ETERNITY GE CARD SLT8
• ETERNITY GE CARD SLT16
• ETERNITY GE CARD SLT20
• ETERNITY GE CARD CO8
• ETERNITY GE CARD CO16
• ETERNITY GE CARD CO4+SLT16
• ETERNITY GE CARD GSM4 (2G/3G/4G)
• ETERNITY GE CARD T1E1PRI SINGLE
• ETERNITY GE CARD BRI4
FXS (Analog Station)
Signaling
Dialing
Off Hook AC Impedance
Off Hook Current
Loop Limit
On-Hook Voltage (Tip/Ring)
DTMF Detection
Return Loss
Longitudinal Balance
Transmission Level Adjust
Ringing
REN
Matrix SARVAM UMG System Manual
Loop Start
DTMF and Pulse (10/20PPS)
600/900/Complex
39mA max
1800 max (excluding Telephone)
-48V nominal
ITU-T Q.24
>18dB
>50dB
Tx Gain: -3dB to +6dB, Rx Gain: -3dB to 6dB
Trapezoidal 60VRMS/25Hz and Sinusoidal 52VRMS/25Hz
3
Specifications
240 Max
192 Max
8 Max
48 Max
48 Max
250 Max
128 Max
720
