• Name: Assign a Name to the Mobile Port for identification. The Name can be a maximum of 24 characters.
• Activity Status: This displays the port activity status — Module Initialization, SIM PUK Required, SIM PIN
Wrong, SIM Absent, SIM Present, Network Absent, Network Present.
• Incoming Call Routing: It displays the Incoming Call Routing Method you select.
To configure the Mobile Port,
• Click MOB-1.

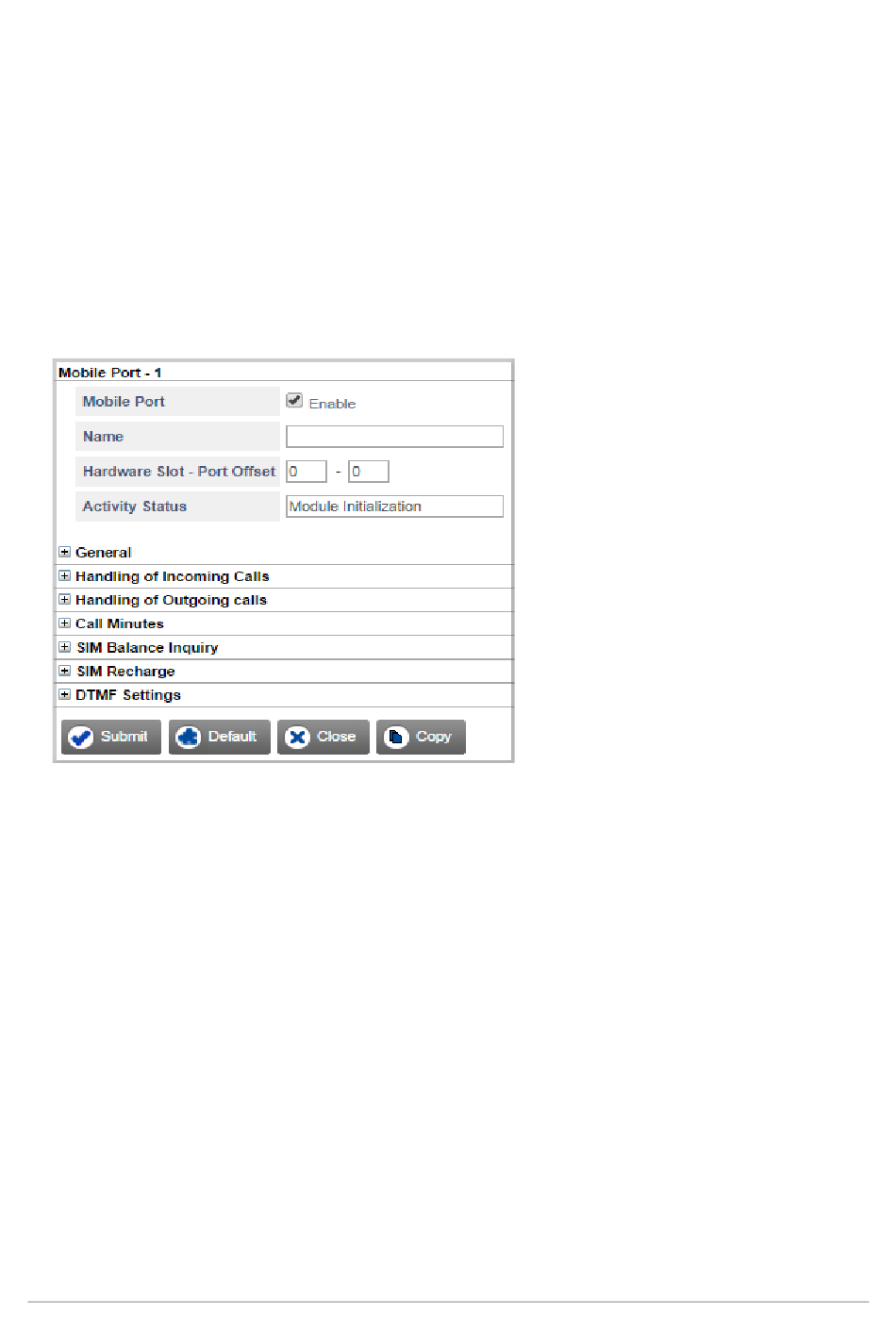

The Mobile Port-1 window opens.
• Keep the Mobile Ports enabled.
Clear this check box, only if you do not want to use the respective port. Default: Enabled.
• You can assign a Name to each Mobile Port. The name will be displayed as CLIP during incoming
calls. The Name can be of maximum 24 characters. Default: Blank.
• SARVAM UMG will assign the Hardware Slot - Port Offset automatically, when any card is inserted in
the system.
Hardware Slot is the number of the universal slot of SARVAM UMG in which the Mobile Card is
inserted. Range of slot number is 1-12. 'Port' is the number of the Mobile port in which you have
inserted the SIM card.
For example: if you have inserted the Mobile4 Card in Slot number 02 of SARVAM UMG, the system
will assign the hardware slot 02 and port numbers 01-04 to the Mobile Software Ports from 01 to 04
respectively.
However, if required, you may change the Hardware Slot and Port assigned to the Mobile software
port. In this case, enter the desired Hardware Slot and Port number.
