• Click Settings

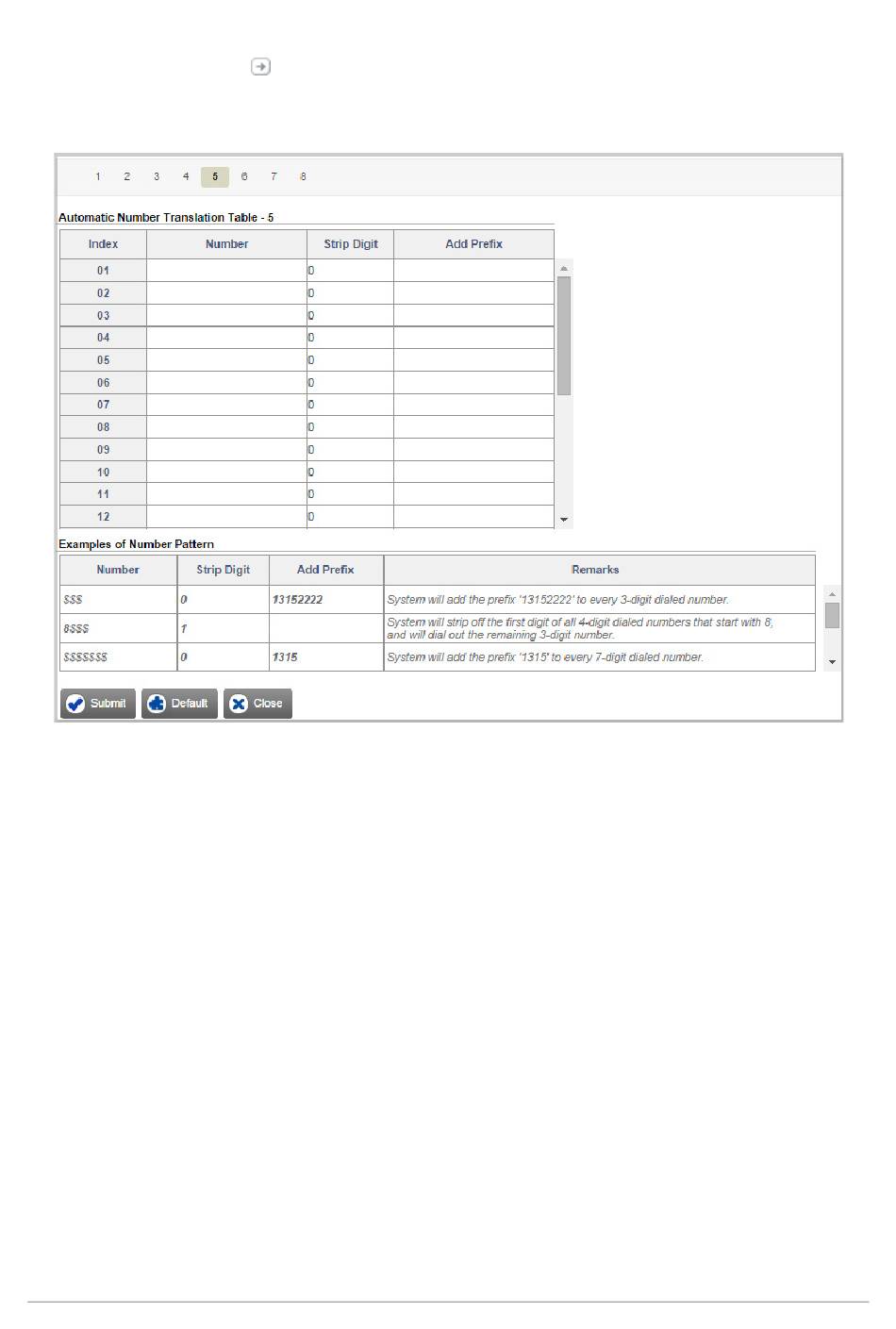

• The Automatic Number Translation Table window opens.
• You may configure the default Automatic Number Translation Table - 5 or any other Table. See
"Automatic Number Translation (ANT)"
• Click Submit to save the ANT Table and close the window.
• Return to ANT parameter and assign the ANT Table you configured.
• To enable the feature Disconnect Call using Access Code on the T1E1 Port, select the Allow Call
Disconnection using Access code check box. To know more about this feature, see
Call using Access Code".
• To customize the pulse width option and set the pulse shapes configure the Custom Pulse parameters.
SARVAM UMG generates pulse shapes which match the country standard, where it is installed. However,
if the standard pulse shape does not match, SARVAM UMG enables you to customize the pulse width to
match your exact requirements.
To use customize pulse width option and set the pulse shape in 1 to 4 phases, keep the T1/E1 Custom
Pulse Width (CPW) flag enabled.
• In Custom Pulse Width Word 1, set the pulse width for setting pulse shape in the 1st phase. Valid
range is 0 to 127. Default: 63.
385
.
to configure the ANT Table.
"Disconnecting a
