Mount the system at the selected site. Make sure that the system is placed such that you have full access
4.
to the front and back panels. The holes in the panels are provided for ventilation; Make sure that these are
not blocked, to prevent overheating.
Connecting Input Power Supply
Ensure that a proper electrical earth and telecom earth are in place.
5.
Check the voltage at the power point from where the supply is to be given to the system. It should be as
6.
per the specifications. Earth the system properly. (Refer
Inserting Cards
Make sure that the ETERNITY GENX power is off and the power cord is unplugged.
7.
Select a free slot from the universal slots.
8.
Unscrew and remove the filler bracket that covers the card-slot opening of the slot you intend to use.
9.
Hold the card with the connectors facing you. Do not grab the card from both ends.
10.
Slide the card into the slot, along the guide rails provided for each slot at the top and bottom planes.
11.
Ensure that the cards are inserted deep enough for all the connector pins on the cards make complete
12.
contact with those of the motherboard on the backplane.
Do not force the card into the slot. Doing so can damage the card or the slot connector.

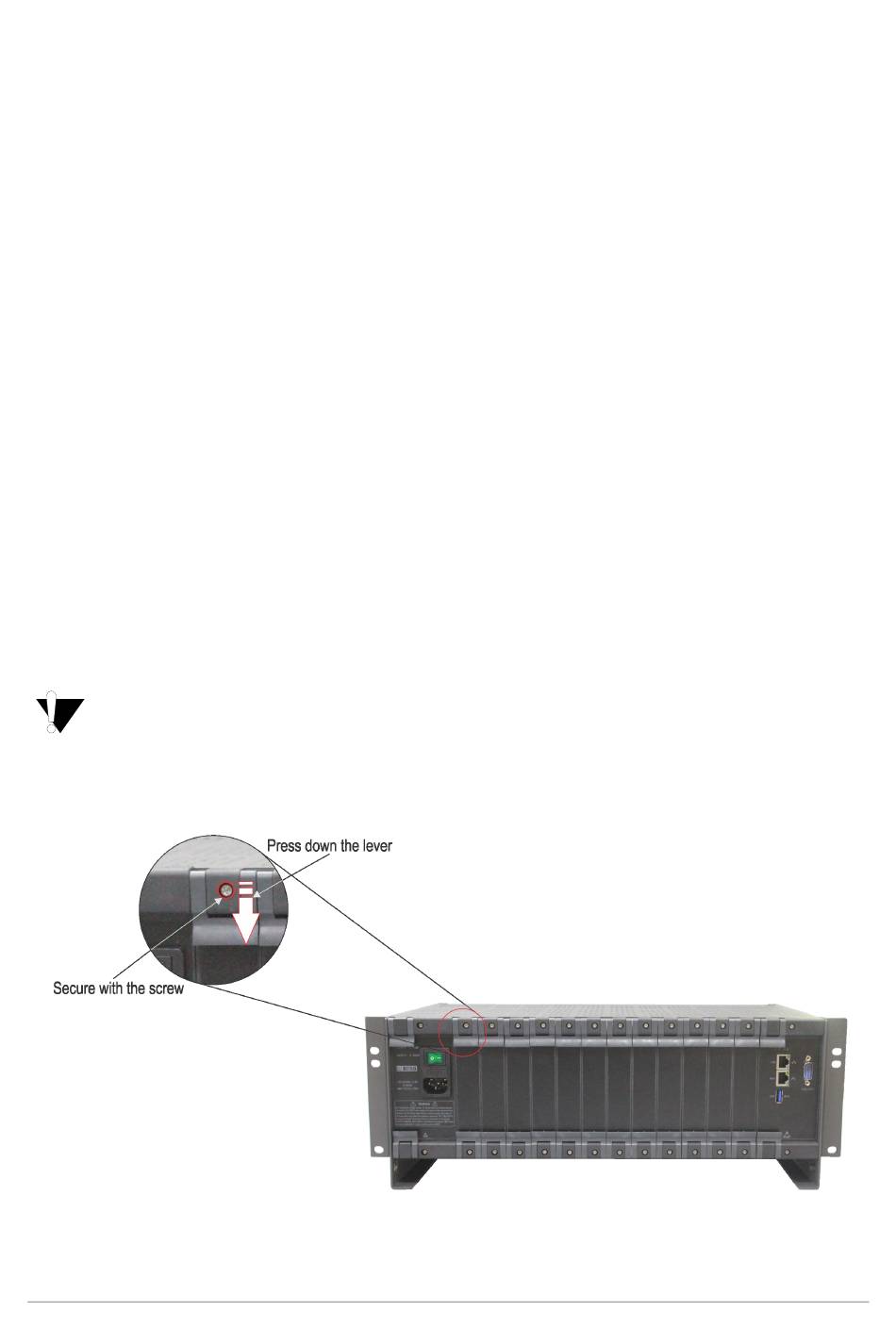

When the card is firmly seated in the connector, push down the levers on the card mounting bracket and
13.
secure the card with the screw provided.
Tighten the screws on either side of the bracket.
14.
Matrix SARVAM UMG System Manual
"How to Make the Telecom Earth").
