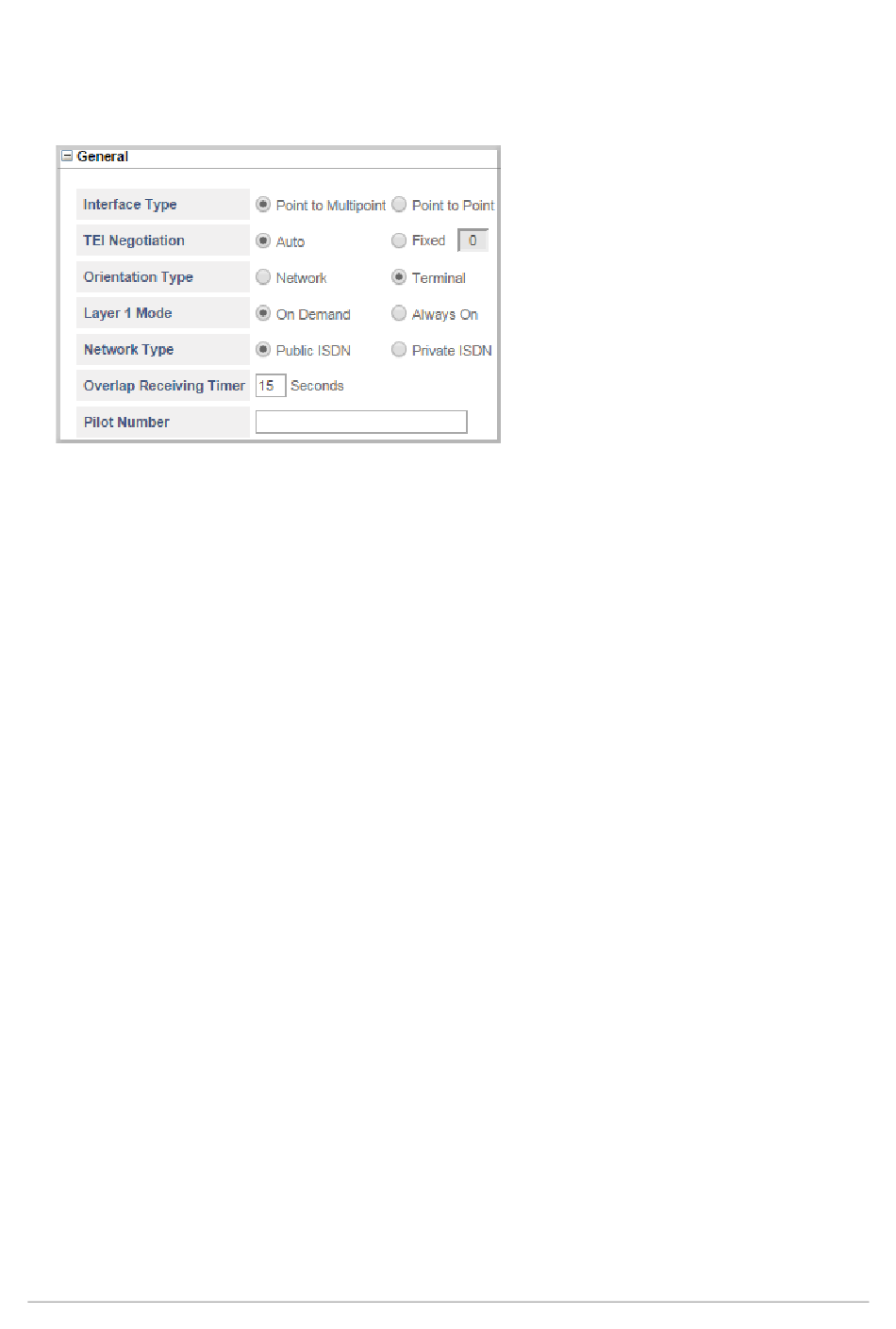

General Parameters

Click General to expand.

Select the Interface Type as Point-to-Point or Point-to-Multipoint according to your installation. Default:

Point-to-Multipoint.

Select TEI Negotiation for the BRI Port as Auto or Fixed. Default: Auto.

TEI (Terminal Endpoint Identifier) Negotiation mode is used to integrate the SARVAM UMG with a specific

ISDN-System. The TEI value programmed for BRI-NT Port should match the TEI value programmed in the

Terminal Equipment connected to it.

If you set TEI Negotiation to Fixed, enter the value of the Fixed TEI Negotiation from 00 to 63. Default:

Select the Orientation Type of the BRI Port as Terminal.

Select the required Layer 1 Mode as On Demand or Always On as supported by your Service Provider.

Default: On Demand.

Select the Network Type according to your installation. Default: Public ISDN.

Select Public ISDN, if the BRI Port is directly connected to the ISDN network.

Select Private ISDN, if the BRI Port is connected to the NT Port of an ISDN System.

The calling party number sent while routing the call through the BRI Port will depend on the Network Type,

whether Public Network or Private.

Set the duration (in seconds) of the Overlap Receiving Timer. On expiry of this timer the system will

process the incoming call as per the Incoming Call Routing logic configured.

The Overlap Receiving Timer is applied only while receiving the called party number information in the

overlap receiving mode. The Timer is not relevant for the port in overlap sending mode.

The range of Overlap Receiving Timer is from 01 to 99 seconds. Default: 15 seconds.
