Matrix Telecom SARVAM UMG System Manual page 251

• Set the duration of the Pause Timer, if you have configured ^ (Pause) in the Add Prefix column of the
ANT Table. Valid range is 1 to 9 seconds. Default: 2 seconds.

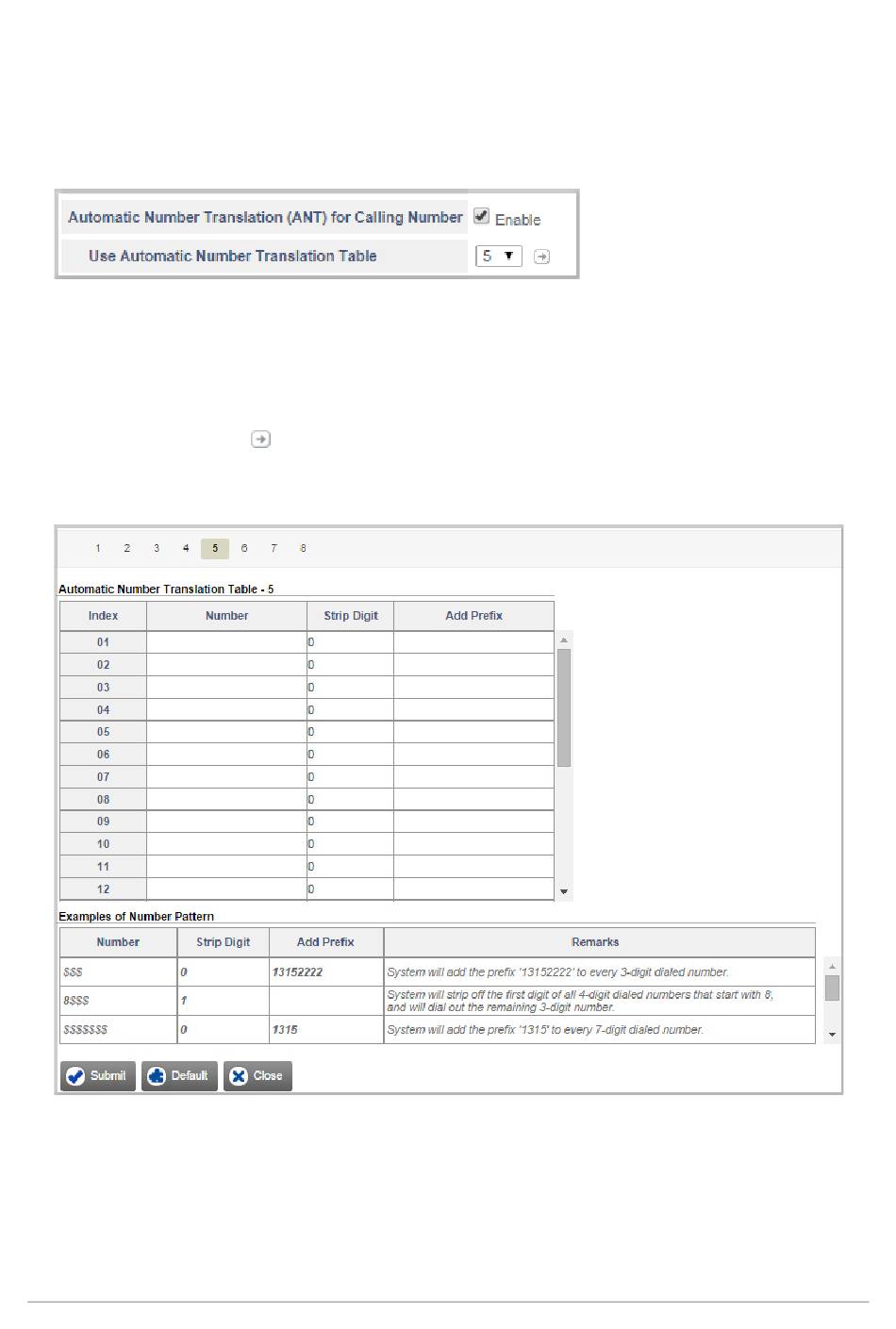

• To apply ANT logic on the Calling Numbers, select the Automatic Number Translation (ANT) for Calling
Number check box. Default: Disabled.
• In Use Automatic Number Translation Table, select the ANT Table number you have configured for
the Calling Numbers. Default: Table 5.
If you have not configured the Automatic Number Translation Table,
• Click Settings
• The Automatic Number Translation Table window opens.
• You may configure the default Automatic Number Translation Table - 5 or any other Table. See
"Automatic Number Translation (ANT)"
• Click Submit to save the ANT Table and close the window.
• Return to ANT parameter and assign the ANT Table you configured.
245
.
to configure the ANT Table.
Matrix SARVAM UMG System Manual
