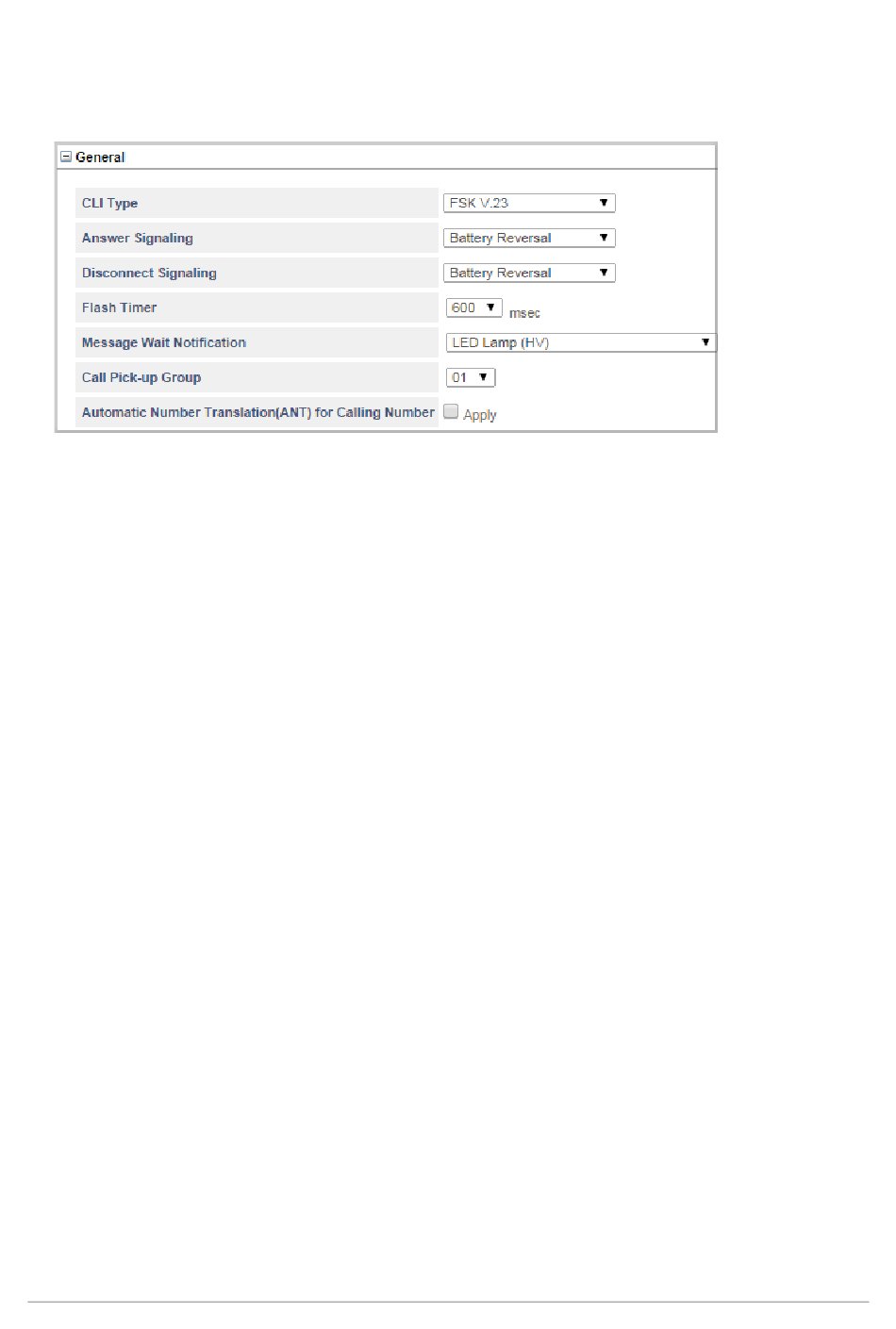

Click General to expand.

Select the appropriate CLI Type, according to the CLI Type supported by the telephone instrument/

Gateway connected to the FXS Port.

SARVAM UMG supports three signaling protocols for CLI on the FXS Port — DTMF, FSK V.23 and FSK

BellCore. Default: FSK V.23

Select the appropriate Answer Signaling Type on the FXS Port.

Answer Signaling is a signal generated on the FXS Port to indicate that the called party has answered (call

Select None, if no answer signaling is to be generated on the FXS Port.

Select Battery Reversal, if answer signaling is to be generated in the form of Battery Reversal on the

Default: Battery Reversal

Select the appropriate Disconnect Signaling Type on the FXS Port.

A Disconnect Signal is the signal generated on the FXS port to indicate that the called party has

disconnected the call.

Select None, if no signaling is to be generated on the FXS Port for call disconnection.

Select Battery Reversal, if call disconnection is to be signaled in the form of Battery Reversal.

Select Open Loop Disconnect, if call disconnection is to be signaled in the form of Open Loop

Disconnect signal. If you select this option, you must configure the Open Loop Disconnect Timer.

Set the duration of Open Loop Disconnect Timer as per your requirement. Valid range is 001 to

999 msec. Default: 500 msec.

Default: Battery Reversal.
