FXO Port

SARVAM UMG supports FXO Ports, which may be either
• interfaced with the analog trunk from CO and used to route incoming calls to FXS Ports, BRI Ports, T1E1
Ports, SIP Trunks and Mobile Ports.
- or -
• interfaced with FXS Port of the System.
To configure the parameters of the FXO Port,
• Click the Basic Settings link to expand.
• Click the FXO Port link.

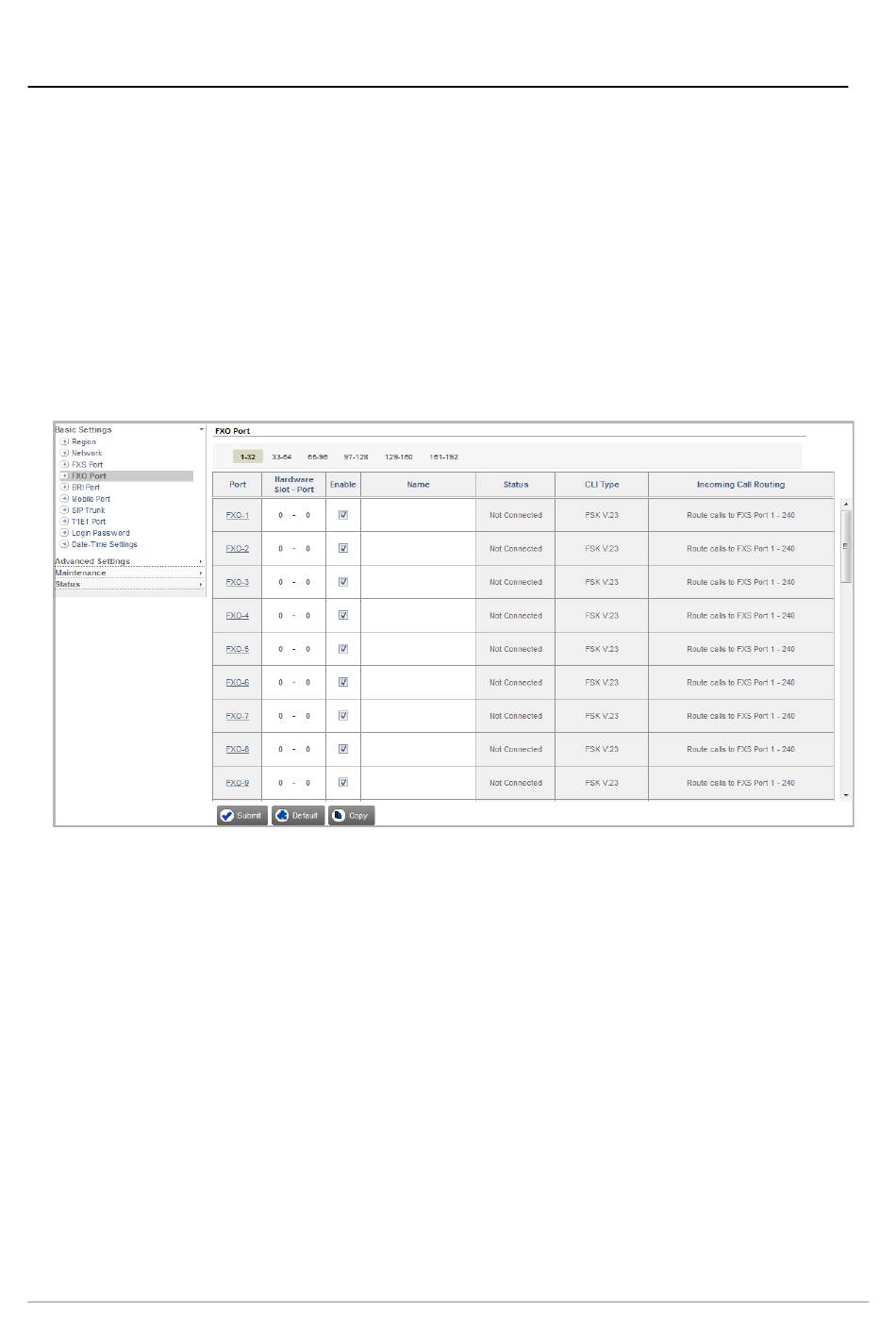

The FXO Port page displays the following parameters:
• Port: It displays the FXO Port numbers. Click on the desired FXO Port number to configure the Port
Parameters.
• Hardware Slot-Port: The SARVAM UMG can automatically detect and assign the Hardware Slot and Port
numbers to the FXO software ports. However, if required you may change the Hardware Slot and Port
assigned to the FXO software port. In this case, enter the desired Hardware Slot and Port number.
• Enable: Keep the FXO Ports enabled. Clear the FXO Port Enable check box, only if you do not want to
use the respective port. Default: Enabled.
• Name: Assign a Name to the FXO Port for identification. The Name can be a maximum of 24 characters.
• Status: This displays the status of connectivity.
• CLI Type: It displays the type of CLI you select — DTMF, FSK V2.3, FSK Bellcore.
