Matrix Telecom SIMADO GFX44 Quick Start Manual

Gsm fxs gateway
Hide thumbs

Advertisement

Quick Links

Download this manual
SIMADO GFX44
Quick Start

Advertisement

loading

Related Manuals for Matrix Telecom SIMADO GFX44

Summary of Contents for Matrix Telecom SIMADO GFX44

  • Page 1 SIMADO GFX44 Quick Start...
  • Page 3 SIMADO GFX44 SIMADO GFX44 SIMADO GFX44 SIMADO GFX44 SIMADO GFX44 Multi-port Mobile-FXS Gateway with LCR Quick Start...

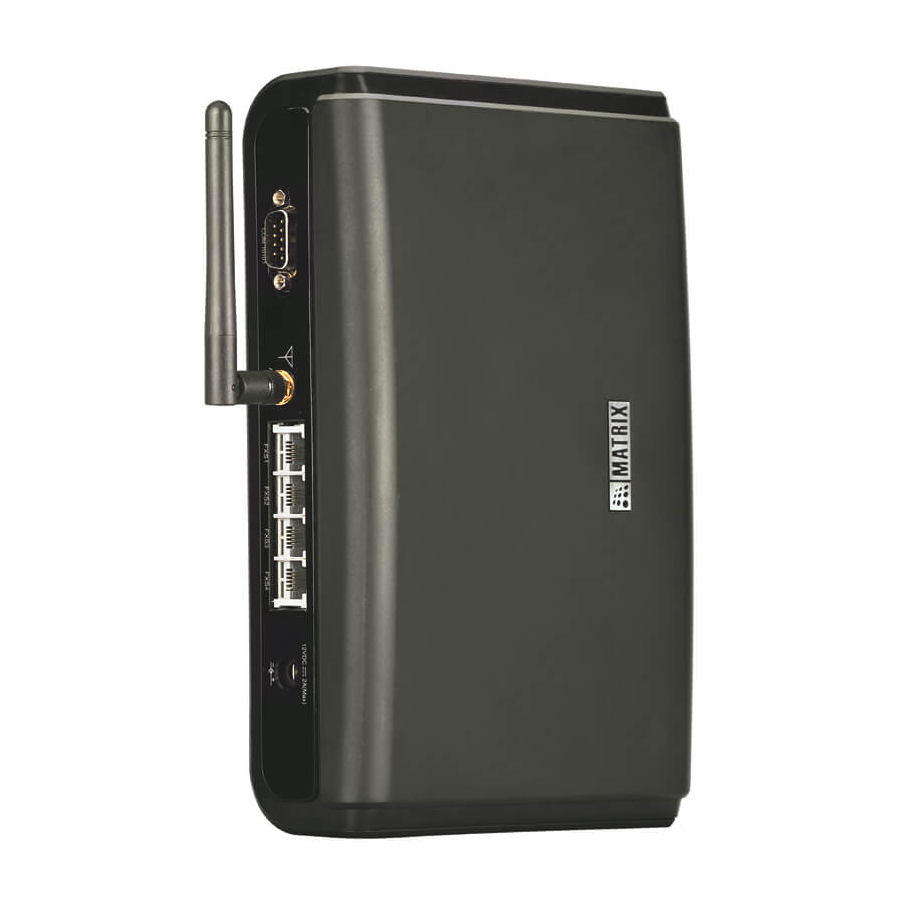

  • Page 4 Mobile Port else the current call will be disconnected if another call is detected by the module. Know your SIMADO GFX44 SIMADO GFX44 has 4 FXS Ports, a Communication Port, 4 Mobile Ports, an Antenna Connecter, a Power Socket and 9 LEDs (8 Port LEDs + 1 Power LED).
  • Page 5 Applications of SIMADO GFX44 SIMADO GFX44 finds its applications in corporate offices, factories, call centers, hotels and such other establishments. SIMADO GFX44 can be used as stand- alone system as well as it can also be interfaced with the PBX.

  • Page 6: Before You Start

    Make sure that all the above mentioned components are present when you open the Sales Kit of SIMADO GFX44. In case any of the part is damaged or is missing, contact the Vendor/Service Provider from whom you have purchased the system.

  • Page 7: Precautions And Safety Instructions

    Hang SIMADO GFX44 on the wall. Connecting SIMADO GFX44: SIMADO GFX44 can be used as stand-alone system as well as it can also be interfaced with the PBX. It should be installed at the airy, dust free and moisture free place.
  • Page 8 Mobile 4 LEDs When SIMCOM 3G module is used in SIMADO GFX44 then the call waiting service must be disabled in the SIM Card inserted in the Mobile Port else it will result in call disconnection in speech condition if another call is detected by the module.
  • Page 9 The following table shows LED indications during various events and error conditions: Event Colour Cadence in ms (1 Cadence = approx. 3000 ms.) During GSM Initialization Orange 200ms ON-200ms Off 200ms ON-200ms Off 200ms ON-200ms Off 200ms ON-200ms Off 200ms ON-1200ms Off (5 Blinks) If PUK Required Orange 200ms ON-200ms Off 200ms ON-200ms Off...
  • Page 10 CD Drive of your computer. It is an auto-run CD. • CD drive window will open. It contains two folders viz. 'Documents' and 'SIMADO GFX44 Jeeves VxRy'. (If CD does not open by itself, click on 'My Computer'  ‘CD Drive’ to exaplore the CD. •...
  • Page 11 Select the language in which you want Jeeves content to be displayed. • Help: In Help, you will be able to access: 1) SIMADO GFX44 System Manual 2) SIMADO GFX44 Quick Start and 3) About Jeeves. Click File  New, main menu of the Jeeves will open up. On main menu •...
  • Page 12 • Save the configurations in your computer and upload the same on to your system. (Refer SIMADO GFX44 System Manual for more details) Programming SIMADO GFX44 by issuing commands from FXS Port: To program the system using commands from FXS port, you must enter the programming mode.
  • Page 13 'System Manual' if you wish to configure the system by dialing commands) Get the service provider dependent features enabled from your service provider and follow the steps given below to program various features of SIMADO GFX44 using Jeeves. Step 1: Mobile SIM PIN SIM PIN is a security feature used by the GSM network.
  • Page 14 Change the SIM PIN of the SIM Card to 1234 i.e. the default SIM PIN of the system. • Remove SIM Card from the mobile instrument and insert it in SIMADO GFX44. • Switch on the system and change the SIM PIN after GFX44 attains normal working position.
  • Page 15 System Manual for more details) Step 3: Date and Time SIMADO GFX44 has its own Real Time Clock (RTC) to store the Date and Time. First set current date and time once before you start programming the system. Then it will update itself regularly.
  • Page 16 • Click 'Upload Page' button. Jeeves will upload computers' current date and time to SIMADO GFX44 and will display the same on the screen. • Clicking on 'Download Page' button will display the date and time of SIMADO GFX44 firmware on the Jeeves screen.
  • Page 17 Step 5: Port Parameters-Mobile SE should program various Mobile port parameters for smooth and proper functioning of SIMADO GFX44. Follow the steps given below to program various mobile port parameters: • Open Jeeves of SIMADO GFX44. (Refer ‘Programming SIMADO GFX44’) •...
  • Page 18 Command’. You can select the appropriate DTMF Outdial Option. By default, DTMF Outdial option is ‘In-band’. • DTMF ON Time: This is the time for which the DTMF digits will remain On while being dialed out by SIMADO GFX44. This timer finds its...
  • Page 19 900+1800 • All Bands By default, All Bands is selected. Frequency Band selection is not supported if SIMCOM 3G module is installed in SIMADO GFX44. • Preferred Network Mode: Select Preferred Network Mode from the following options: • Dual Mode •...
  • Page 20 (Refer ‘Port Parameters-Mobile’ in System Manual for more details) Step 6: Port Parameters-FXS SE should program various FXS Port parameters for smooth and proper functioning of SIMADO GFX44. Follow the steps given below to program various FXS Port parameters: •...
  • Page 21 • First Digit Wait Timer (seconds): Program First Digit Wait Timer in this field. Range of First Digit Wait Timer is from 01 to 99 seconds. By default, it is 06 seconds. • Rx Gain (db): Program Rx Gain in this field. Valid options for Rx Gain are: •...

  • Page 22: Mobile Port

    Timetable allows SIMADO GFX44 to route the calls on different routing groups at different time of each week day. SIMADO GFX44 supports four time tables. Each timetable is divided into four time zones for each day of the week. You can program this timetable as per your requirement and assign it to the desired FXS/Mobile Ports.
  • Page 23 Step 8: Routing Group When a call is initiated from FXS or Mobile port, SIMADO GFX44 decides to route the call on the basis of routing group assigned to the port. You can program maximum 8 routing groups. Each routing group can have maximum four members.
  • Page 24 Step 9: Dialed Numbers Table Dialed number table allows SIMADO GFX44 to select the destination port on the basis of number dialed which results in the Least Cost Routing (LCR). Follow the steps given below to program Dialed Numbers Table: •...
  • Page 25 Timetable Follow the steps given below to program FXS Call Routing: • Open Jeeves of SIMADO GFX44. (Refer ‘Programming SIMADO GFX44) • Open ‘Main Menu’ page and login into the Jeeves. Click on ‘FXS Configuration’ button and program the following parameters: •...
  • Page 26 Timetable Follow the steps given below to program Mobile Call Routing: • Open Jeeves of SIMADO GFX44. (Refer ‘Programming SIMADO GFX44) • Open ‘Main Menu’ page and login into the Jeeves. Click on ‘Mobile Configuration’ button and program the following parameters: •...
  • Page 27 Step 12: SIM Balance and Recharge SIMADO GFX44 facilitates user to check balance of the prepaid SIM Card and recharge the same, if required. This feature depends on the network and also on the services provided by the service provider. This feature will work only when SIMCOM-2G, -3G and Wavecom-2G module is installed in SIMADO GFX44.
  • Page 28 Step 13: Reinstate the Default Settings SIMADO GFX44 is supplied with a pre-defined set of variables like Mobile Port Parameters, FXS Port Parameters, SIM PIN, Call Progress Tones etc. These pre-set settings are called default settings.

  • Page 29: Test Calls

    SE password gets defaulted (1234). Test Calls You will need a cell-phone to make and receive the test call and an analog phone to connect the FXS Port of SIMADO GFX44. Making a call from FXS to Mobile • Lift the handset of the analog phone connected to FXS Port (ANY) of SIMADO GFX44.
  • Page 30 From the cell-phone, dial the number of the SIM Card (inserted in SIMADO GFX44) provided by the GSM Service Provider. • The analog phone connected to the SIMADO GFX44 will ring. Please make sure that analog phone should be connected to FXS1 Port of SIMADO GFX44.
  • Page 31 Q.8. I have EPABX with FXS and FXO interface. Can SIMADO GFX44 be integrated with existing EPABX and also reduces the call cost? Ans. Yes, you can connect SIMADO GFX44 with your existing EPABX. When installed with FXO ports of EPABX, it enables you to make...
  • Page 32 MATRIX COMSEC PVT. LTD. Corporate Office: 394-GIDC, Makarpura, Vadodara - 390010, India. Tel.:+91 265 2630555, Fax: +91 265 2636598 E-mail: Info@MatrixComSec.com Factory: 39-GIDC, Waghodia - 391760, Dist. Vadodara, India. Tel.: +91 2668 262056/57 Technical Support: Tel.: +91 2668 263172/73, Fax: +91 2668 262631 E-mail: Support@MatrixComSec.com www.MatrixComSec.com...
