T1 Port

SARVAM UMG supports the T1/E1 Ports to which you can connect the T1 or E1 line.
• Click the Basic Settings link to expand.
• Click the T1E1 Port link.

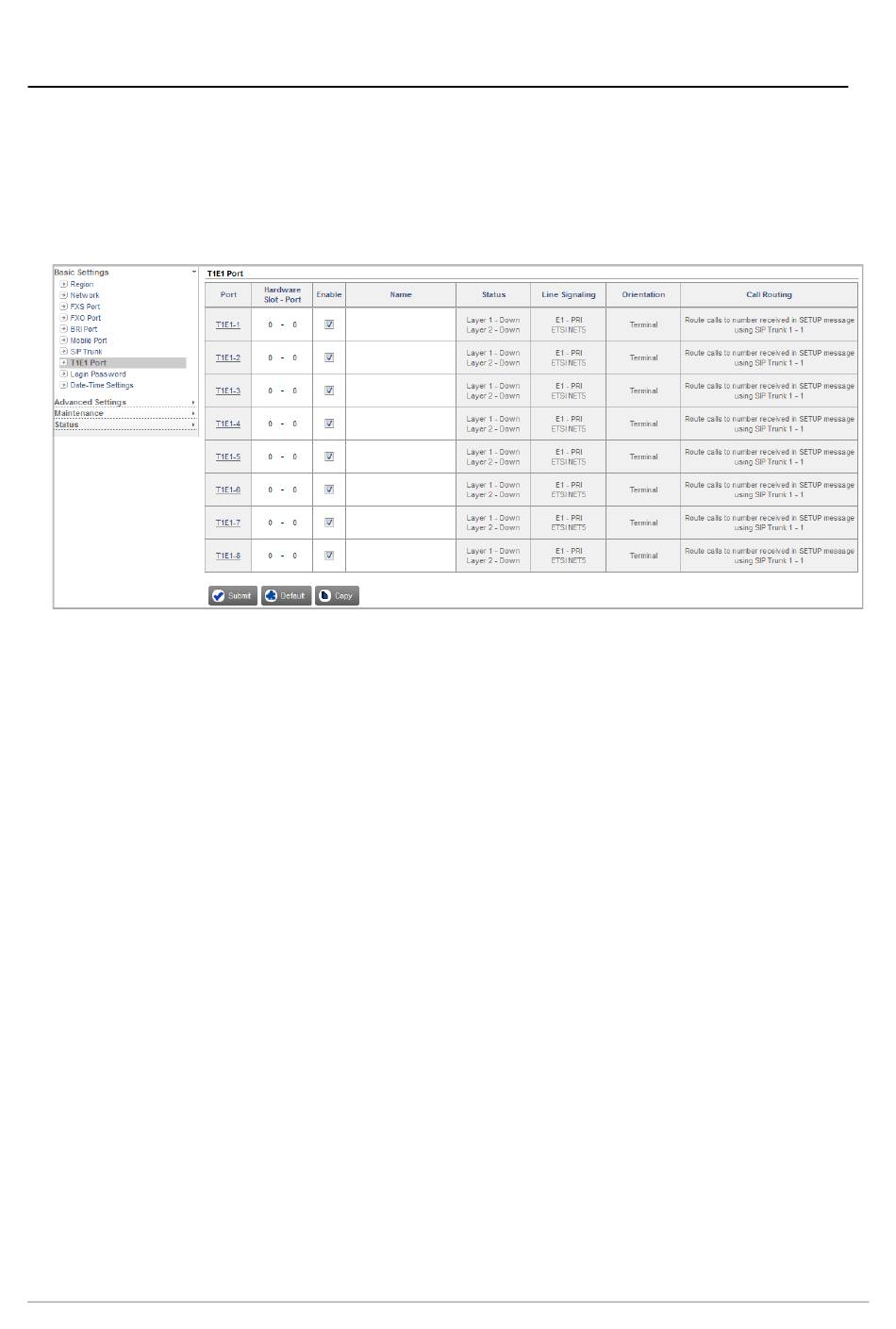

The T1E1 Port page displays the following parameters:
• Port: It displays the T1E1 Port numbers. Click on the desired T1E1 Port number to configure the Port
Parameters.
• Hardware Slot-Port: The SARVAM UMG can automatically detect and assign the Hardware Slot and Port
numbers to the T1E1 software ports. However, if required you may change the Hardware Slot and Port
assigned to the T1E1 software port. In this case, enter the desired Hardware Slot and Port number.
• Enable: Keep the T1E1 Ports enabled. Clear the T1E1 Port Enable check box, only if you do not want to
use the respective port. Default: Enabled.
• Name: Assign a Name to the T1E1 Port for identification. The Name can be a maximum of 24 characters.
• Status: This displays the status of Layer 1 and Layer 2, that is, Up or Down.
• Line Signaling: It displays the Carrier Type, Signaling Type and the ISDN Switch Variant you select.
• Orientation: It displays the type of orientation you select — Network or Terminal.
• Call Routing: It displays the Call Routing Method you select.
To configure the T1E1 Port,
• Click T1E1-1.
