SIP Trunk

SARVAM UMG supports 250 SIP Trunks. You can register all SIP Trunks with the same ITSP or with different
ITSPs. These SIP Trunks may be configured as Proxy or Peer-to-Peer (non-proxy).
• Click the Basic Settings link to expand.
• Click the SIP Trunk link.

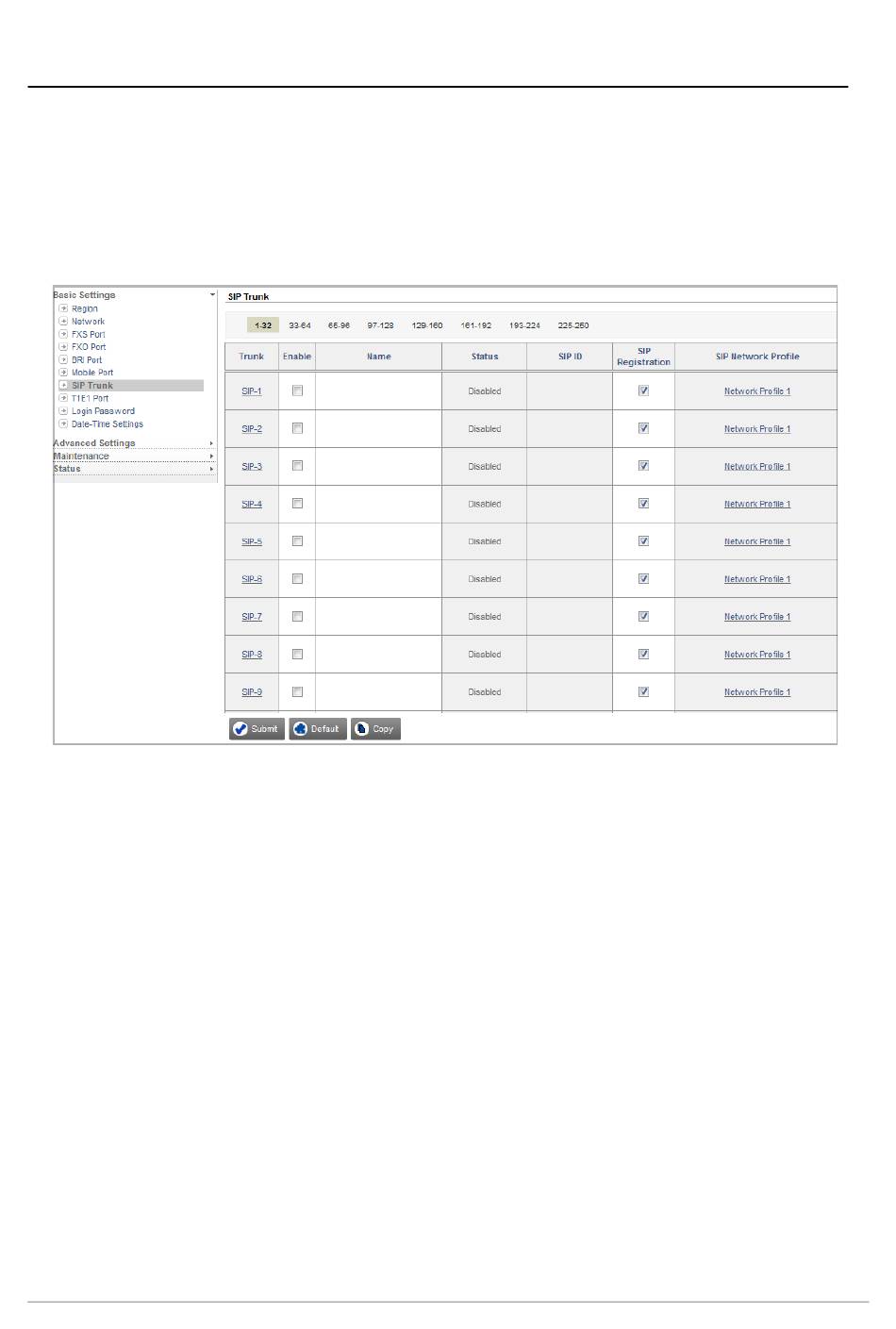

The SIP Trunk page displays the following parameters:
• Trunk: It displays the SIP Trunk numbers. Click on the desired SIP Trunk number to configure the SIP
Trunk Parameters.
• Enable: Click the check box to enable the SIP Trunk.
• Name: Assign a Name to the SIP Trunk for identification. The Name can be a maximum of 24 characters.
• Status: This displays the status of SIP Trunk.
• SIP ID: This displays the SIP ID assigned to the SIP Trunk.
• SIP Registration: Keep the SIP Registration enabled. Clear this check box only if you do not want to
enable SIP Registration for the respective SIP Trunk. Default: Enabled.
• SIP Network Profile: It displays the Network Profile you select for the SIP Trunk. To configure the
Network Profile, click on Network Profile.
• Incoming Call Routing: It displays the Incoming Call Routing Method selected for the SIP Trunk.
