When a BRI port of another ISDN System is to be connected to the BRI port of the ETERNITY GENX, in such a
configuration, you may configure
• the BRI port of the other ISDN System in the TE mode and the BRI Port of the ETERNITY GENX in the NT
mode.
OR
• the BRI port of the other ISDN System in the NT mode and the BRI Port of the ETERNITY GENX in the TE
mode.
Also refer the topics
Types of BRI Configuration
There are two types of configurations in BRI: Point-to-Point Configuration and Point-to-Multipoint Configuration.
Each is explained below.
Point-to-Point Configuration

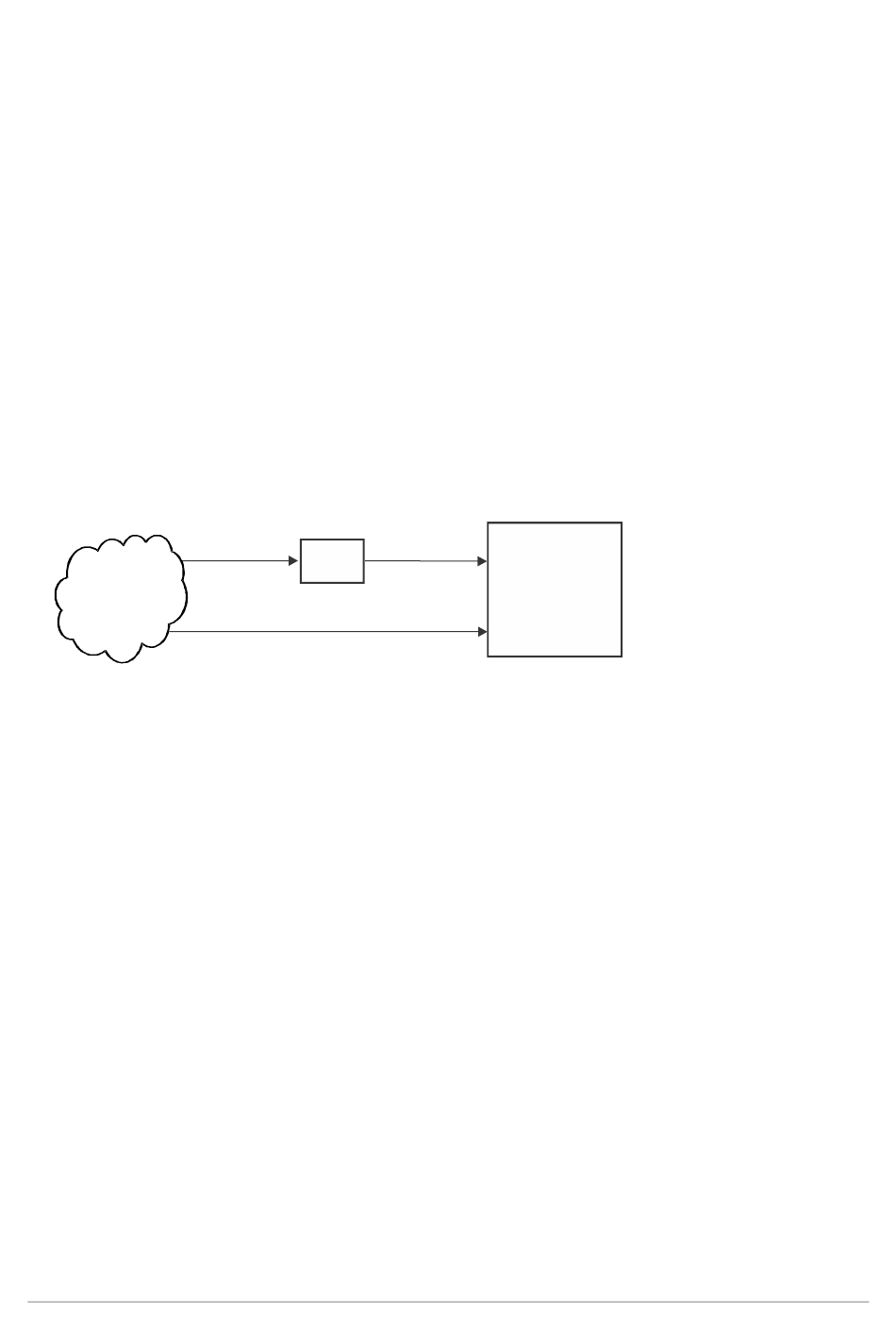

ISDN
Network
The maximum distance between the NT (Network Termination, NT1 or NT2) and a single Terminal Equipment, in
this case ETERNITY GENX, can be upto 1 kilometer.
Point-to-Multipoint Configuration
A maximum of 8 ISDN equipment can be connected on a single BRI Bus line in a Point-to-Multipoint configuration.
Further, two configurations are possible in a Point-to-Multipoint configuration:
Short Passive Bus Configuration
a.
Extended Passive Bus Configuration
b.
Matrix SARVAM UMG System Manual
"BRI Port - Network" and
NT
Upto 1 Km
"BRI Port - Terminal" to know more.
BRI Line
BRI Port
(TE Mode)
ETERNITY GENX
