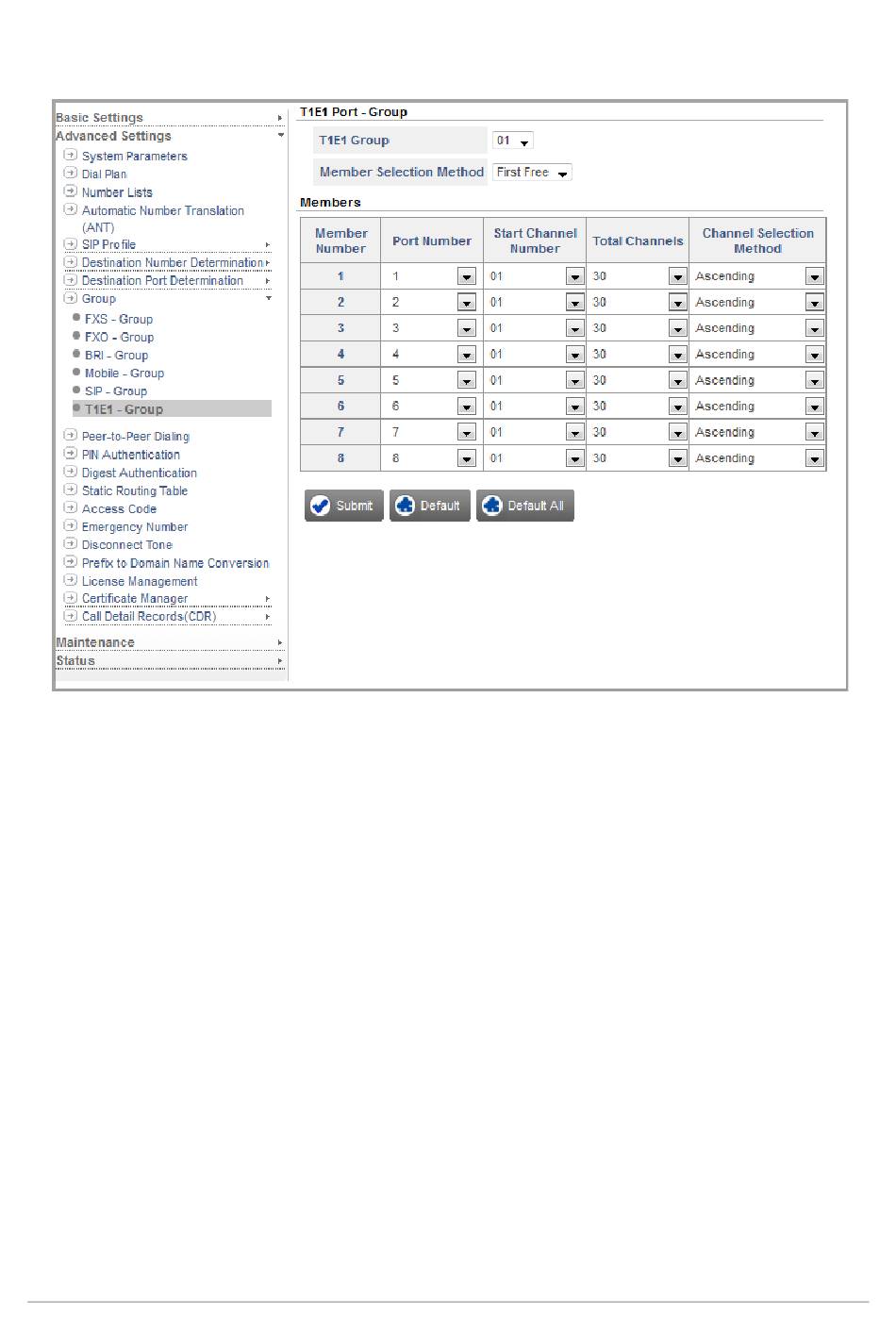

Click T1E1 - Group under Group.

You can create as many as 10 T1E1 Groups with maximum 8 members in each group.

Select a T1E1 Group Number from 1 to 10.

To configure Members in the Group,

For each Member Number, select a T1E1 Port number as Port Number. There can be upto 8 members in

Define the Member Selection Method. To route a call, the system checks availability of a free port. There

are two options for port selection, namely:

First Free: The first port which is free will be used for routing the call each time. For example, T1E1

Group Number 1 has four members T1E1 Port 1 (Member 1), 2 (Member 2), 3 (Member 3) and 6

(Member 4). For every incoming call, SARVAM UMG will check the status of Member 1 first. If free, the

call will be routed using this port else system will check status of Member 2 and so on.

Rotation: The first call will be routed through the first member port and the subsequent call through the

next member port and so on. For example, T1E1 Group Number 2 has four members T1E1 Port 3

(Member 1), 4 (Member 2), 5 (Member 3) and 6 (Member 4). For the first incoming call, SARVAM UMG

will check the status of Member 1 (T1E1 Port 3). If free, the call will be routed using this port else

system will check status of Member 2 (T1E1 Port 4) and so on.
