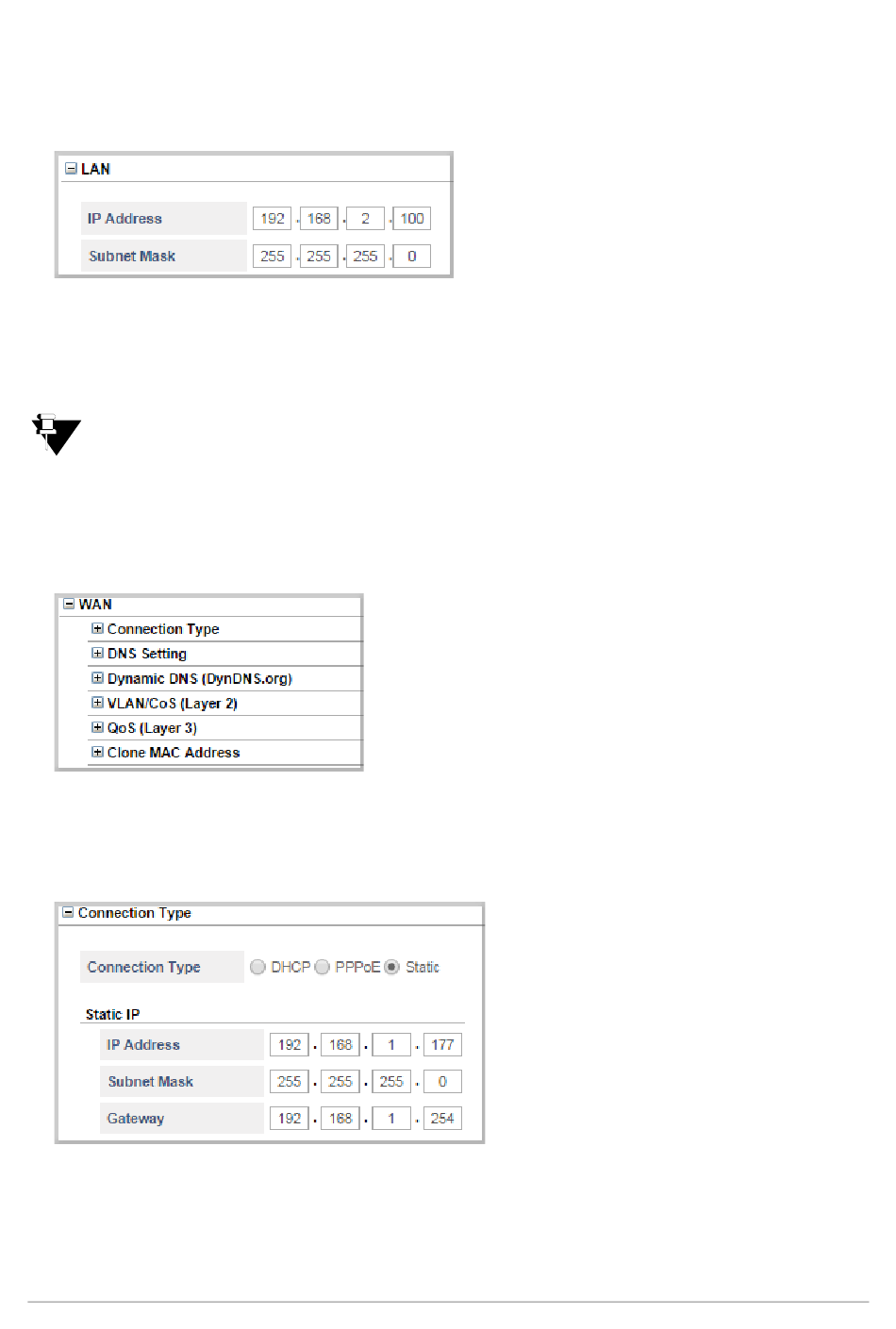

Click LAN to expand.

In IP Address, the current IP Address of the LAN Port is displayed. Default: 192.168.2.100

In Subnet Mask, the current Subnet Mask of the LAN Port is displayed. Default: 255.255.255.000

If required, you may change the LAN Port IP Address and Subnet Mask.

When your SARVAM UMG is installed in a Private Network, make sure the LAN Port and the WAN Port are

connected in different subnets.

Click WAN to expand.

Connection Type

Click Connection Type to expand.

Select the network connection type, that is, the IP Addressing Scheme used by your network to assign the

IP address to the WAN Port: Static, DHCP, PPPoE. Default: Static.

Select Static, if your network uses Static IP addressing and configure the following parameters.
