4 Repair
4.4.2 Replacing the tilthouse unit
Continued

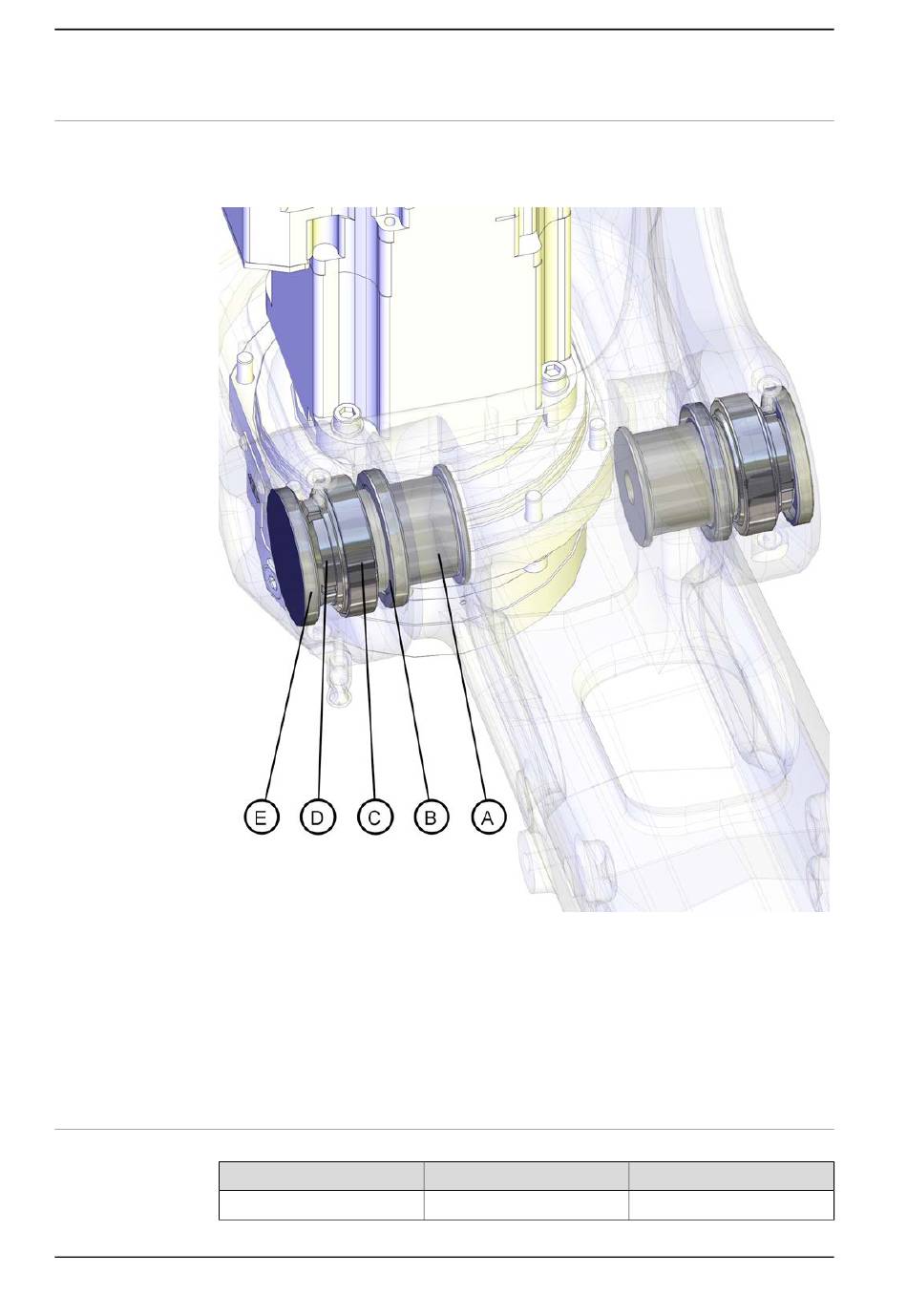

X-ray view of the assembly of the tilthouse unit

The figure shows a X-ray view of how the tilthouse unit is fitted to the upper arm.
Both sides looks the same.
xx1100000216
Required equipment
Equipment, etc.
VK cover
Continues on next page
192
A Shaft
B Radial sealing
C Bearing
D Lock nut
E VK cover 65x8
VK cover 19x6 (Inside VK cover 65x8), not shown in this figure
© Copyright 2012-2018 ABB. All rights reserved.
Art.no.
Spare parts on page 389
Note
VK 19x6 (2 pcs)
