Operating Examples
Setting Operation Mode
and Waveform Output
2 62
Now use an oscilloscope to see what type of waveform is generated. Connect the
AWG2021 to a oscilloscope using a 50 W cable and a 50 W termination as shown
in Figure 2 -51. The waveform output for this instrument is calibrated for a 50 W
load.
AWG2021
CH1
CH1
MARKER 1

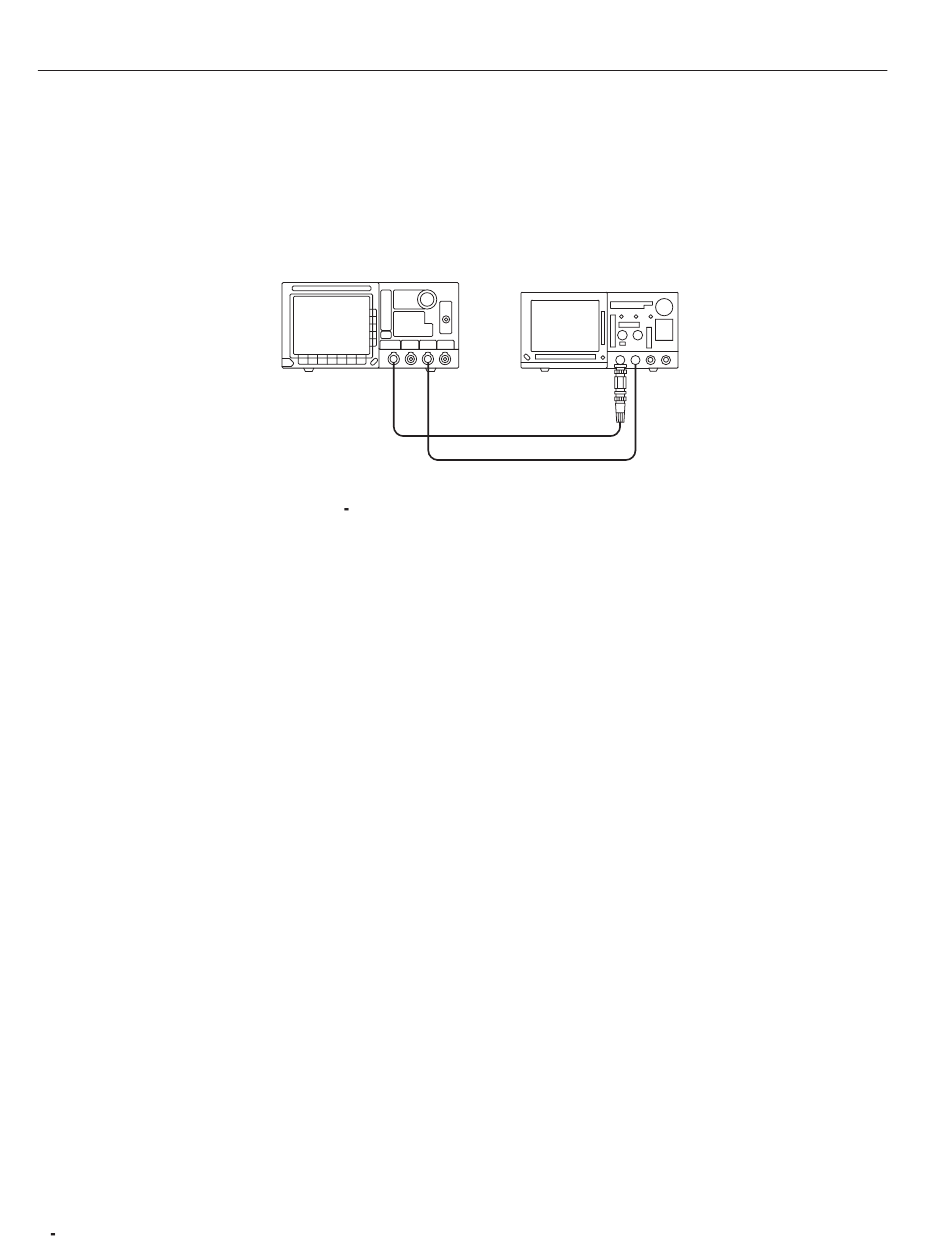

Figure 2 51: Connections for Example 3
Continuous Mode. Set the operation mode to Cont.
1. Press the MODE button in the MENU column. Figure 2 -52 shows the
MODE menu.
Oscilloscope
CH1 CH2
50 W
Termination
50 W Cable
