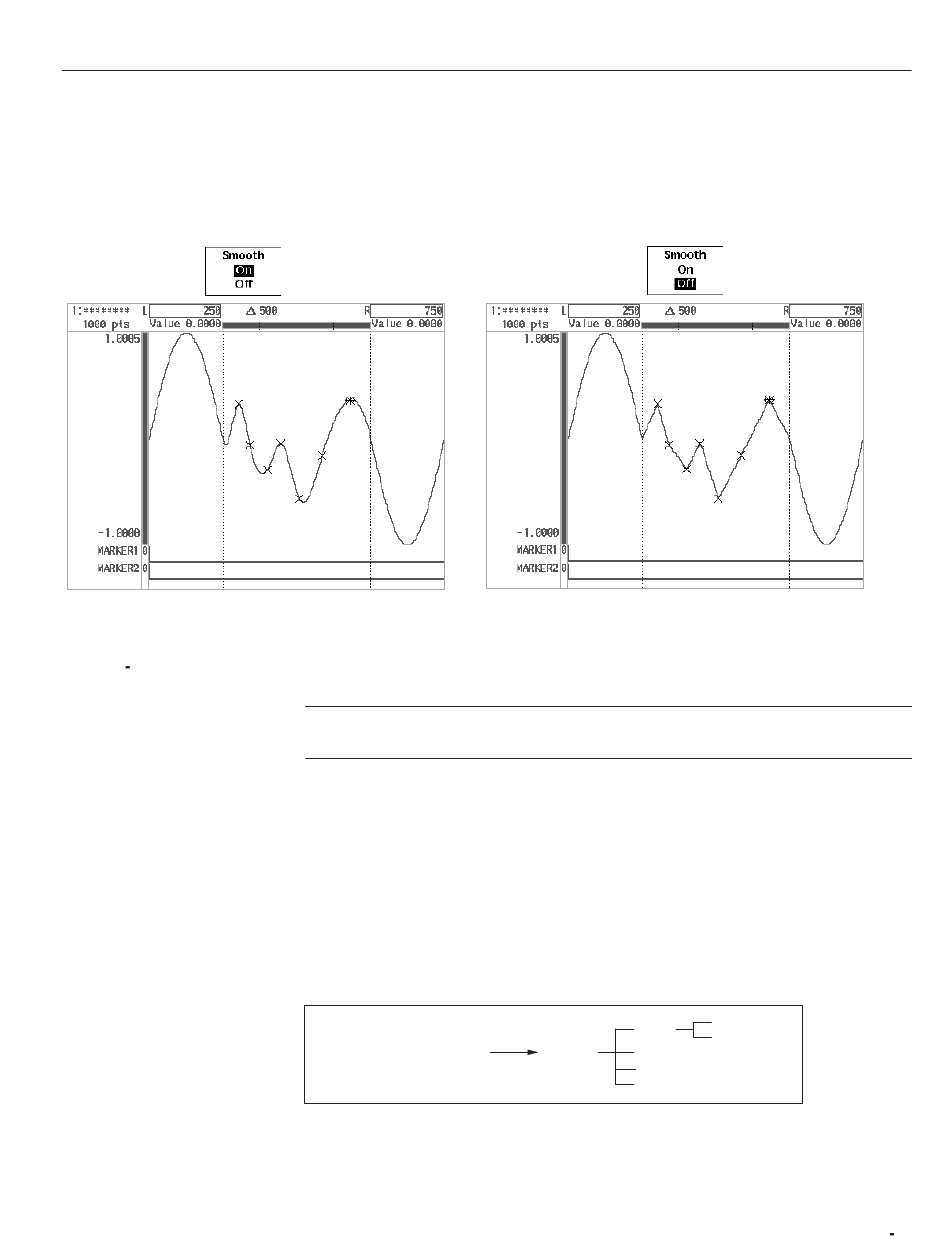

Spline Interpolated Display

Figure 3 27: Smoothing

AWG2021 User Manual

11. Select Execute from the sub-menu. The points between the vertical bar

cursors will be connected with straight lines, as shown in the right screen in

Figure 3 -27. This is called linear interpolation.

NOTE. To cancel drawing execution, select Undo from the bottom menu. The

waveform before the drawing is displayed again.

12. Select Go Back from the current sub-menu. The display moves from the

Draw... sub-menu to the side menu.

This completes the drawing procedure.

Shift Function. Use Shift... to shift the waveform data in the area specified with

the vertical bar cursors in the vertical or horizontal direction. The following

diagram shows the menu configuration for the Shift... item.

Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î

Operation (More 2 of 3)

Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î

Linear Interpolated Display
