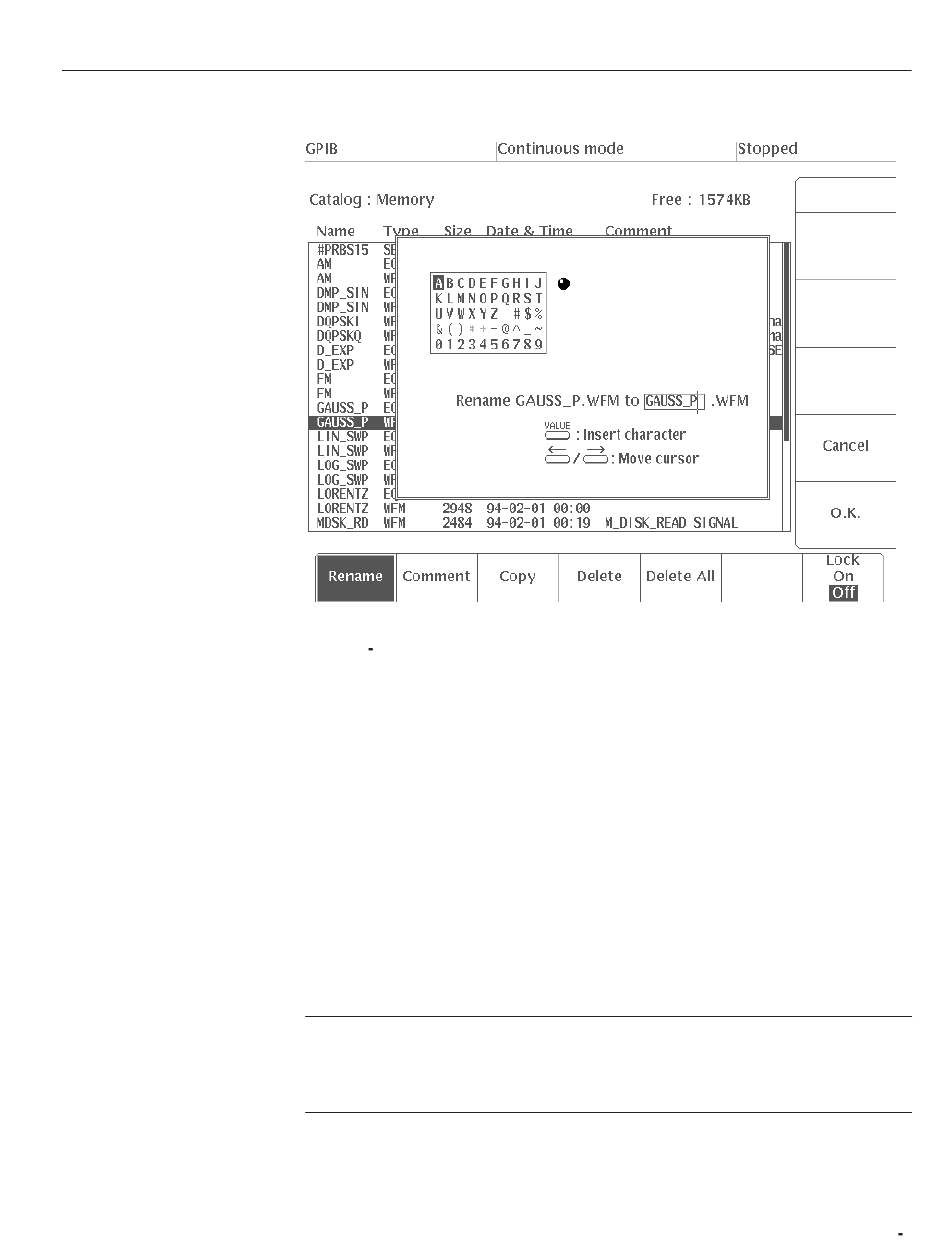

Figure 3 3: Menu Displayed When Rename is Selected
Before entering the new file name, you must delete the current file name.
3. To delete a character, press the Delete button on the front panel. This deletes
the character right before the cursor. The cursor can be moved with the front
panel z and ! buttons.
Now, input the new file name.
4. Use the general purpose knob to select a character.
5. Press the front panel VALUE button. The selected character is inserted
immediately before the cursor blinking in the file name input column.
6. Repeat Steps 4 and 5 until the entire name has been entered. Up to 8
characters can be input.
NOTE. The following cannot be used as file names: CLOCK, CON, AUX,
COM1, COM2, LPT1, LPT2, LPT3, NUL, and PRN. Also, the " ", "*", and
"+" characters in the character menu can not be used in file names and cannot
be selected.
7. To enter the file name, select O.K. To cancel that file name, select Cancel.
