Tektronix AWG2021 User Manual page 87

Operating Examples
Creating an Equation File
2 50
This procedure is used to create a waveform using an equation.
1. Select New Equation from the side menu.
Figure 2 -37 shows the equation editor menu.

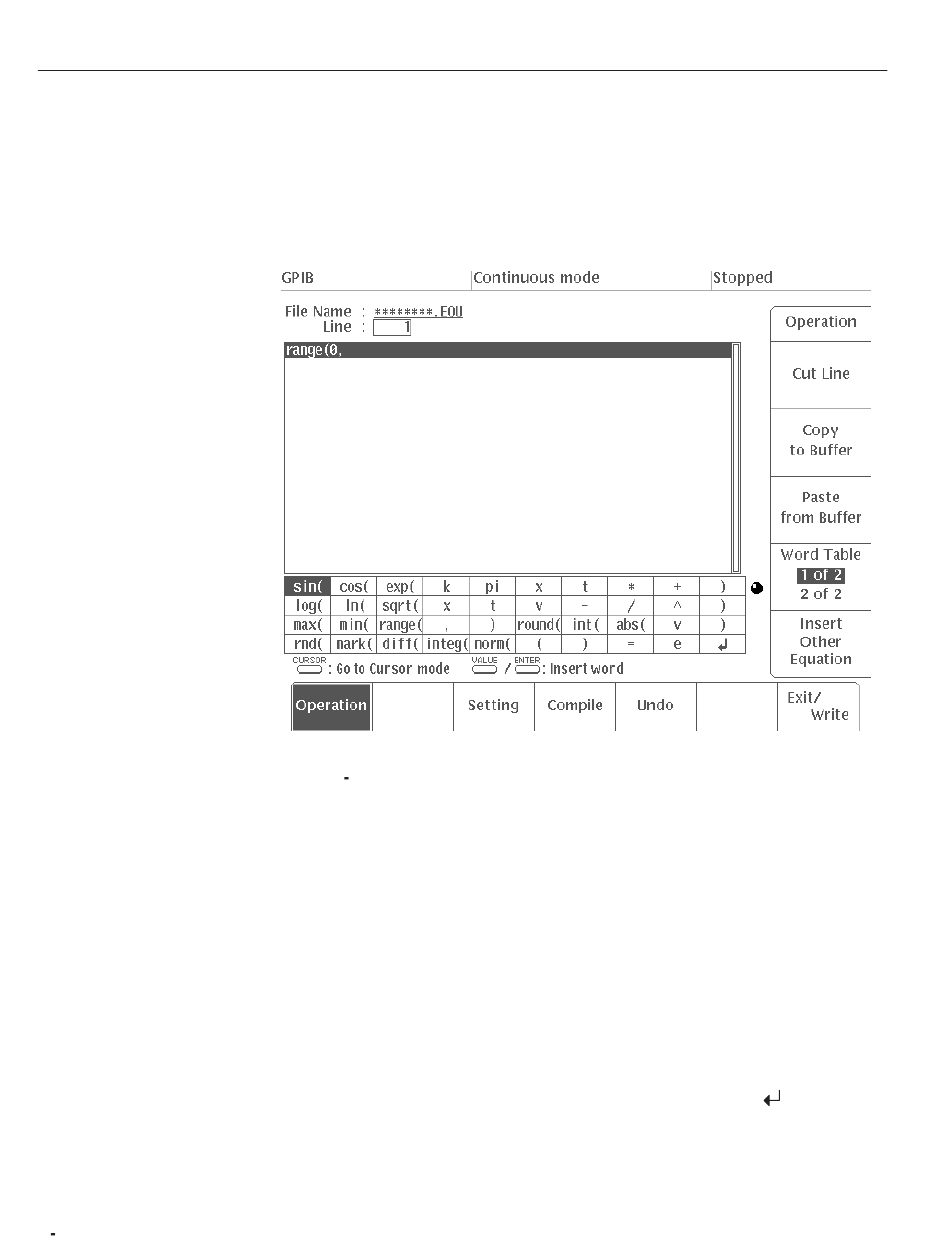

Figure 2 37: Equation Editor Menu Display
To initially define an equation, you must specify its region in time. Do this by
selecting "range(" in the component menu. When a new equation file is created,
"range(0," will automatically appear in the first line of the equation. Following
this notation, you must input the equation end time, as shown in subsequent
steps.
Select Setting from the bottom menu. When this is done, the default setting
(1000) for the number of points will appear. If the clock frequency has been set
to 1 MHz in the SETUP menu, the value will be 1 ms for each point. According-
ly, for 1000 points the waveform period will be 1 ms.
2. Select Operation from the bottom menu.
3. Set the time from 0 to 500 ms. Press the 5, 0, 0, ms, ")", and " " (carriage
return), in order, using the numeric keys and unit key or by selecting and
entering these characters from the items in the component menu.
