Table 3 23: Format Extensions (Cont.)
Format Extension
Thinkjet TJ
TIFF TIF
Selecting the Port. Use this item to select the port from which the hard copy will
be output. Three choices are available: Disk, GPIB and RS232C.

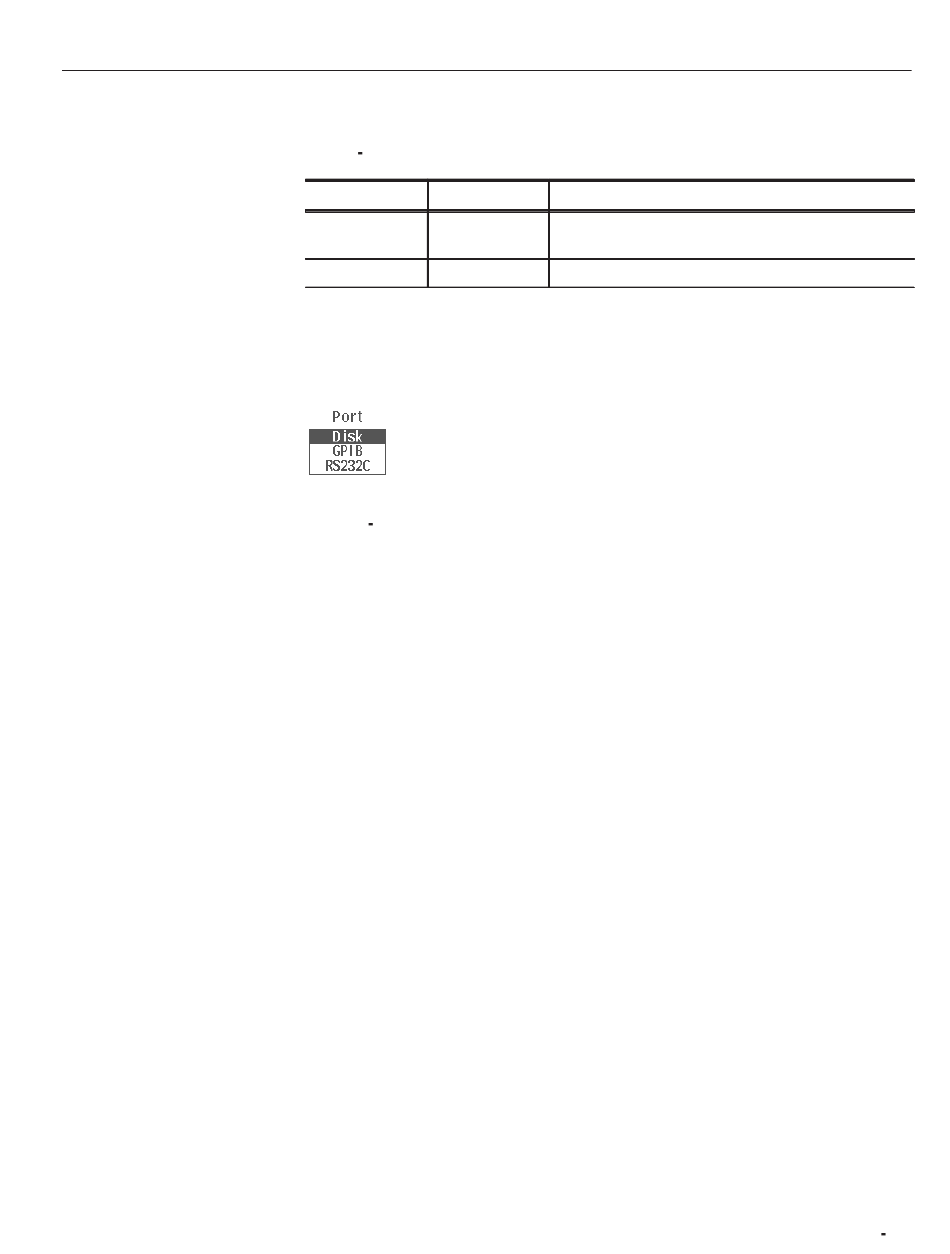

Figure 3 194: Port Selection Menu
In this example, you will print a hard copy of the SETUP menu in TIFF format
from the Disk port.
1. Select Misc from the bottom menu.
2. Select Hardcopy... from the side menu.
3. Select Format from the sub-menu.
4. Use the general purpose knob to select TIFF format.
5. Select Port from the sub-menu.
6. Use the general purpose knob to select Disc.
7. Select Go Back from the sub-menu.
8. Insert a formatted disk into the disk drive of the instrument.
9. Display the SETUP menu on the screen.
10. Press the HARDCOPY button on the front panel. A hard copy of the screen
will be printed. The following message will appear in the message area:
Hardcopy in progress.
If you want to stop printing the hard copy in mid-process, press the
HARDCOPY button again.
When the hard copy has been printed, the following message will appear:
Saved in SETUP000.TIF.
Explanation
A format used for output to HP (Hewlett Packard) inkjet
printers.
TIFF format
