EDIT Menu
3 34
editing area 2 to move the same distance. The following diagram shows the
menu configuration.
Setting (More 2 of 2)

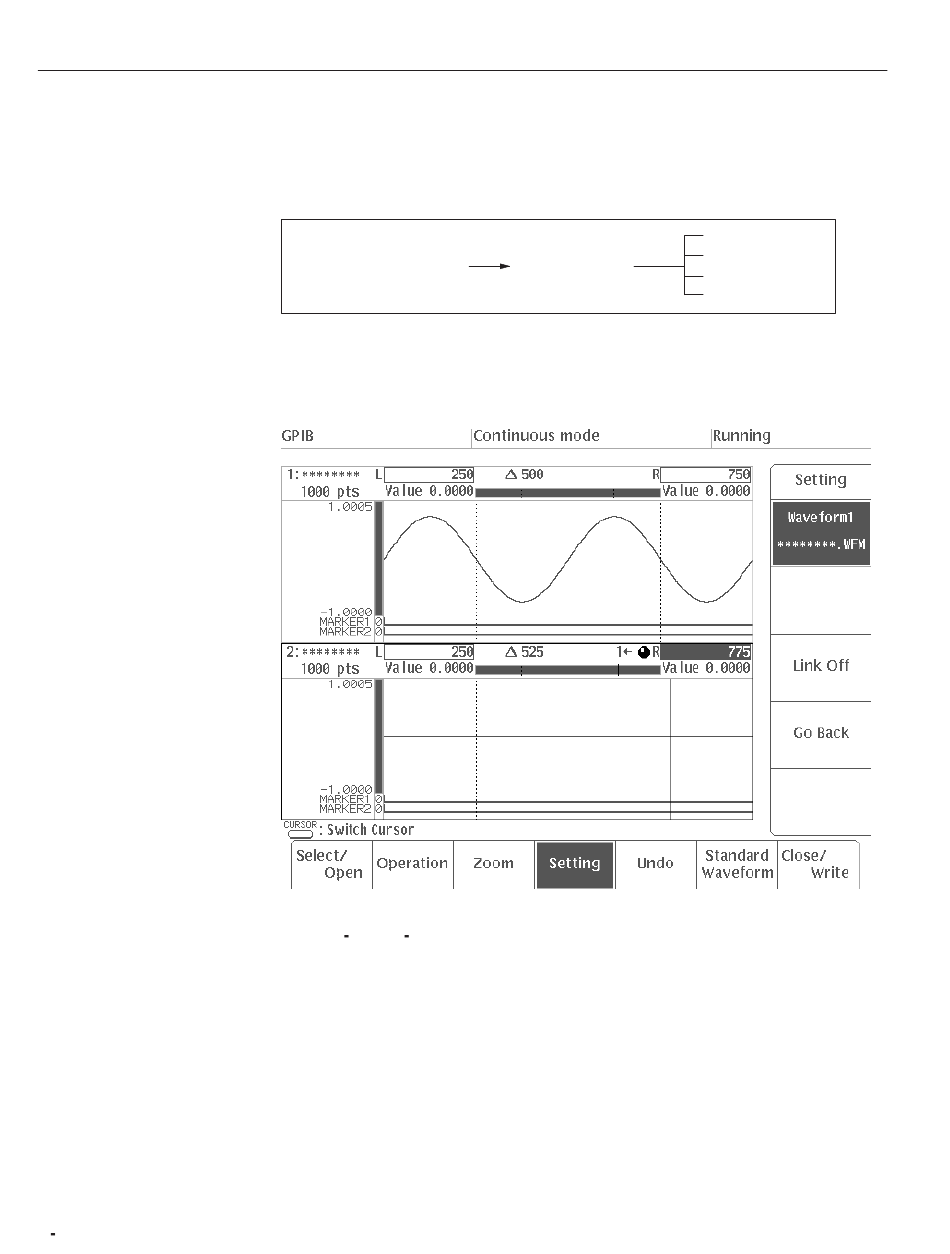

Figure 3 -18 shows a display in which two editing areas have been created and
Cursor Link to... in the sub-menu has been selected.
Figure 3 18: Sub Menu Showing Cursor Link to... Selected
The 1z at the top of editing area 2 indicates that this area has been linked to
editing area 1.
In the following procedure, you will link the vertical bar cursors in editing area 2
(Waveform2) to the ones in editing area 1 (Waveform1) while editing area 1 is
being edited.
1. Select Select/Open from the bottom menu.
Cursor Link to ...
Waveform x
Waveform xx
Link Off
Go Back
