Operating Examples
2 30

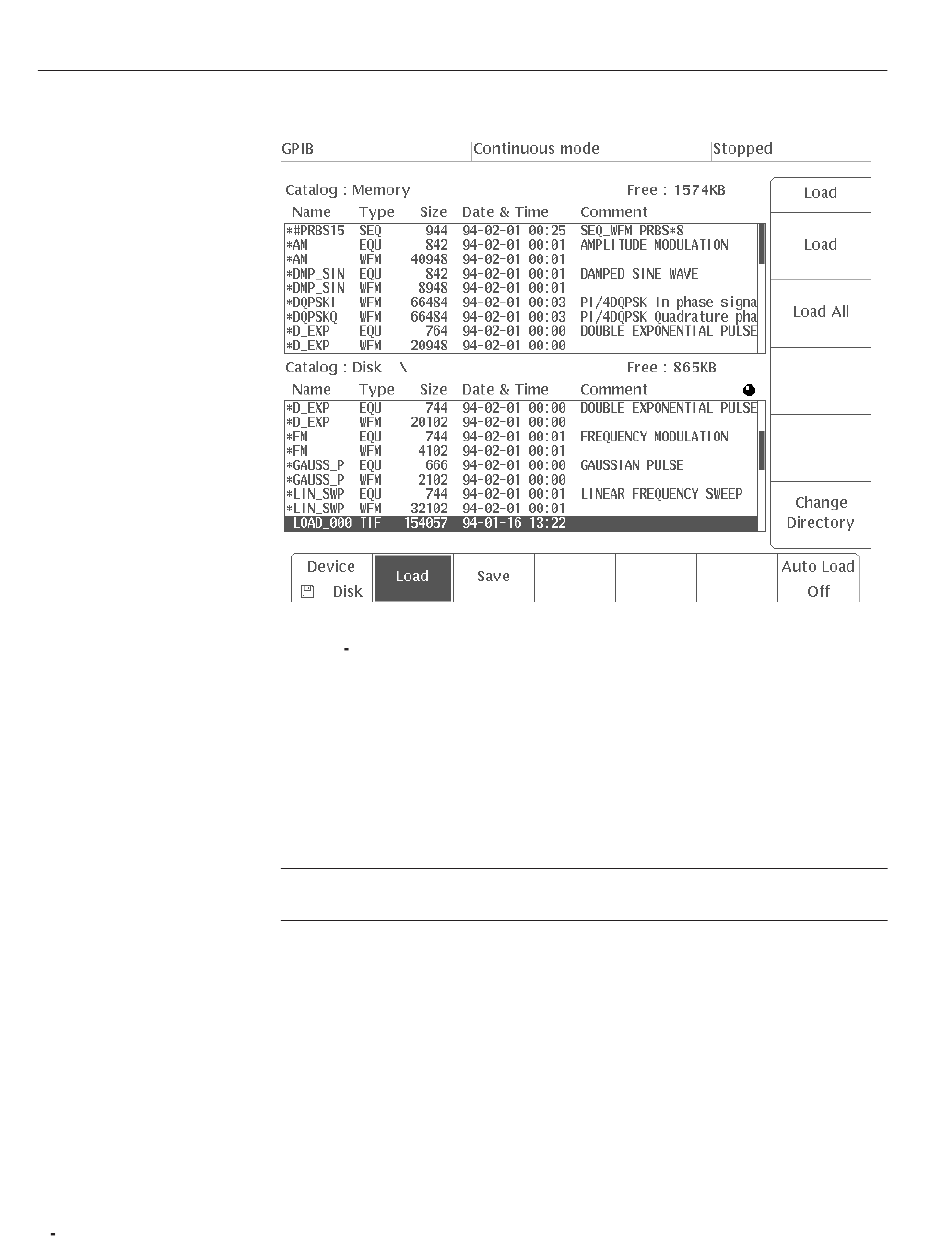

Figure 2 17: CRT Screen Display When Load All is Selected
All the files in the lower box on the screen are loaded into internal memory. The
loaded files are displayed in the internal memory list in the upper box on the
screen.
Turn the general purpose knob to scroll through the list of files displayed in the
lower box on the screen. For explanations of the waveform in each file, see
Sample Waveform Library in Appendix D.
NOTE. The sample waveform library disk files are locked (and * is displayed next
to their names). You must unlock these files before you can edit them.
