Squared Sine Pulse
(SQU_SIN.WFM)
AWG2021 User Manual
Made with the equation editor.

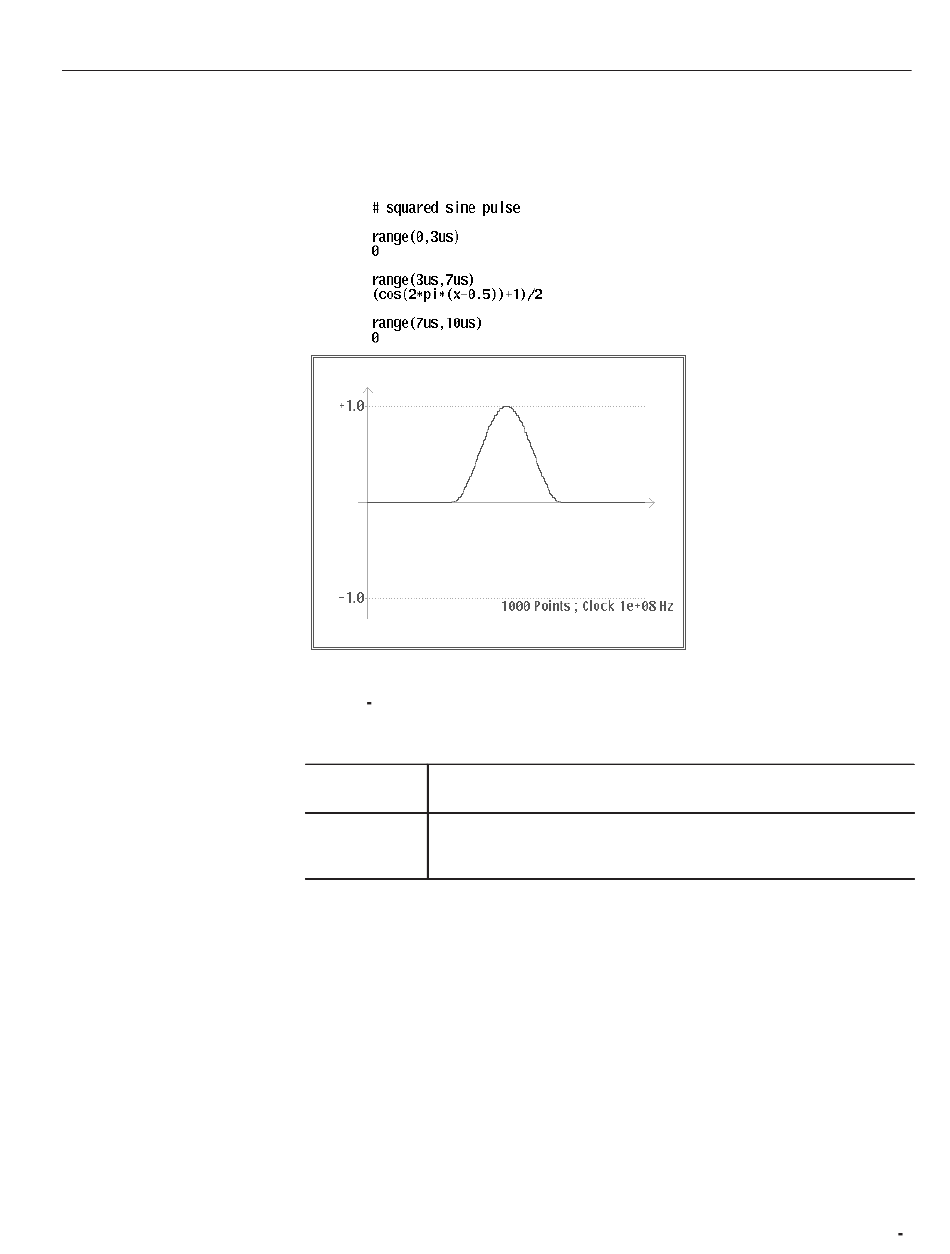

Figure D 4: Squared Sine Pulse Formula and Waveform
Description
The pulse width and peak location are set with range (). The value for x is
a value between 0 and 1 for range (a,b).
Settings
Waveform points: 1000
Clock frequency: 100 MHz
Output time: 10 ms
Appendix D: Sample Waveform Library
D 7
