Operating Examples
2 38

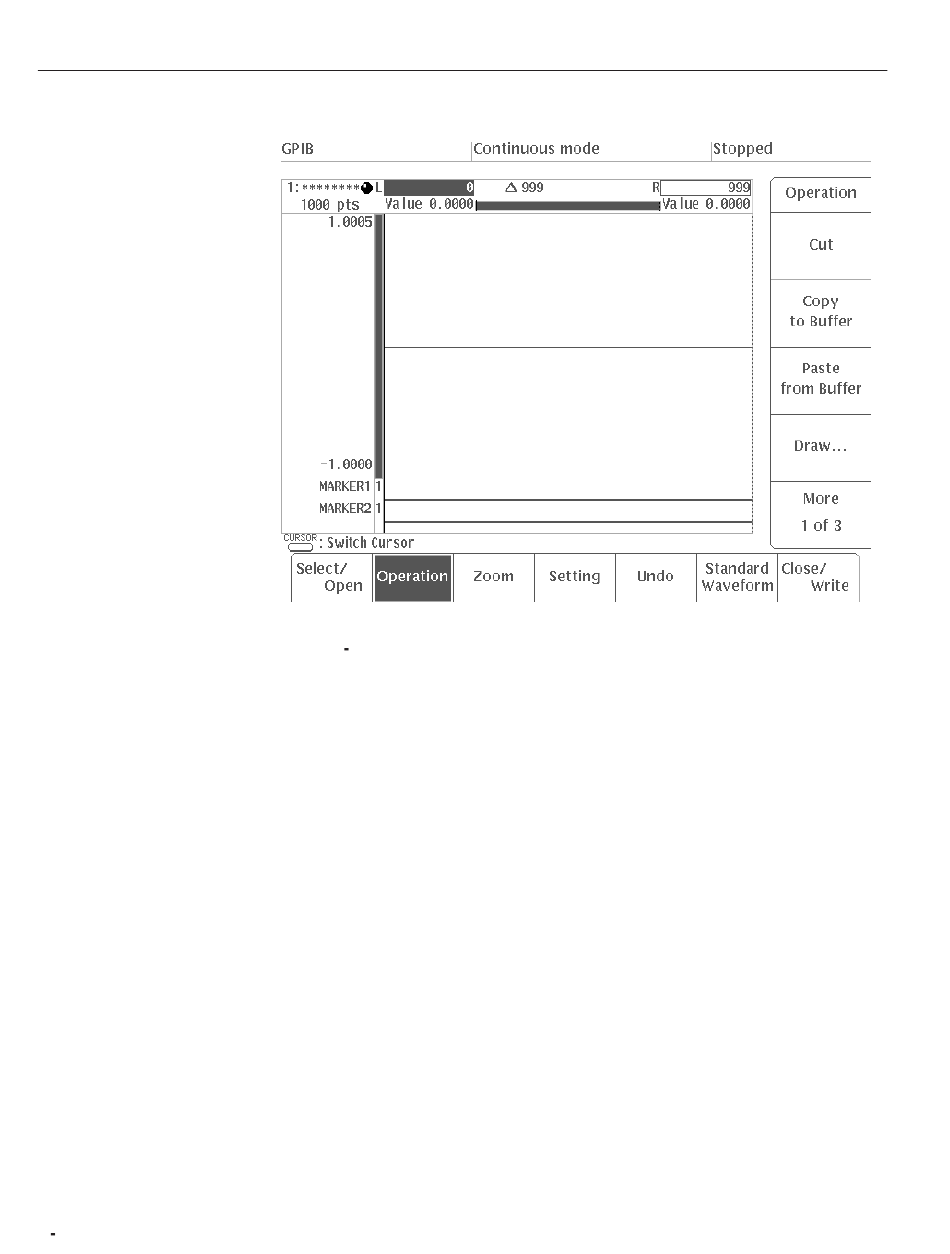

Figure 2 25: Waveform Editor Graphic Menu
3. Press the front panel CURSOR button to activate the right side vertical bar
cursor (it becomes a solid line).
Pressing the CURSOR button toggles the selected vertical bar cursor from
right to left and back again. You can move the selected cursor using the
general purpose knob or the numeric keys.
4. Press the following key sequence: 4, 9, 9, ENTER. This sets the point value
for the right side vertical bar cursor to 499 (see Figure 2 -26).
