UTILITY Menu
3 280
Setting the Display Brightness. The AWG2021 screen has three levels of
brightness. These levels are set with the Brightness menu item.
To set the screen brightness:
1. Select Misc from the bottom menu.
2. Select Display... from the side menu.
3. Select Brightness from the sub-menu.
4. Use the numeric keys or general purpose knob to input the appropriate
display brightness. The display brightness can be adjusted in steps of 1% in
the range 0 – 100%. The default display brightness is 70%.

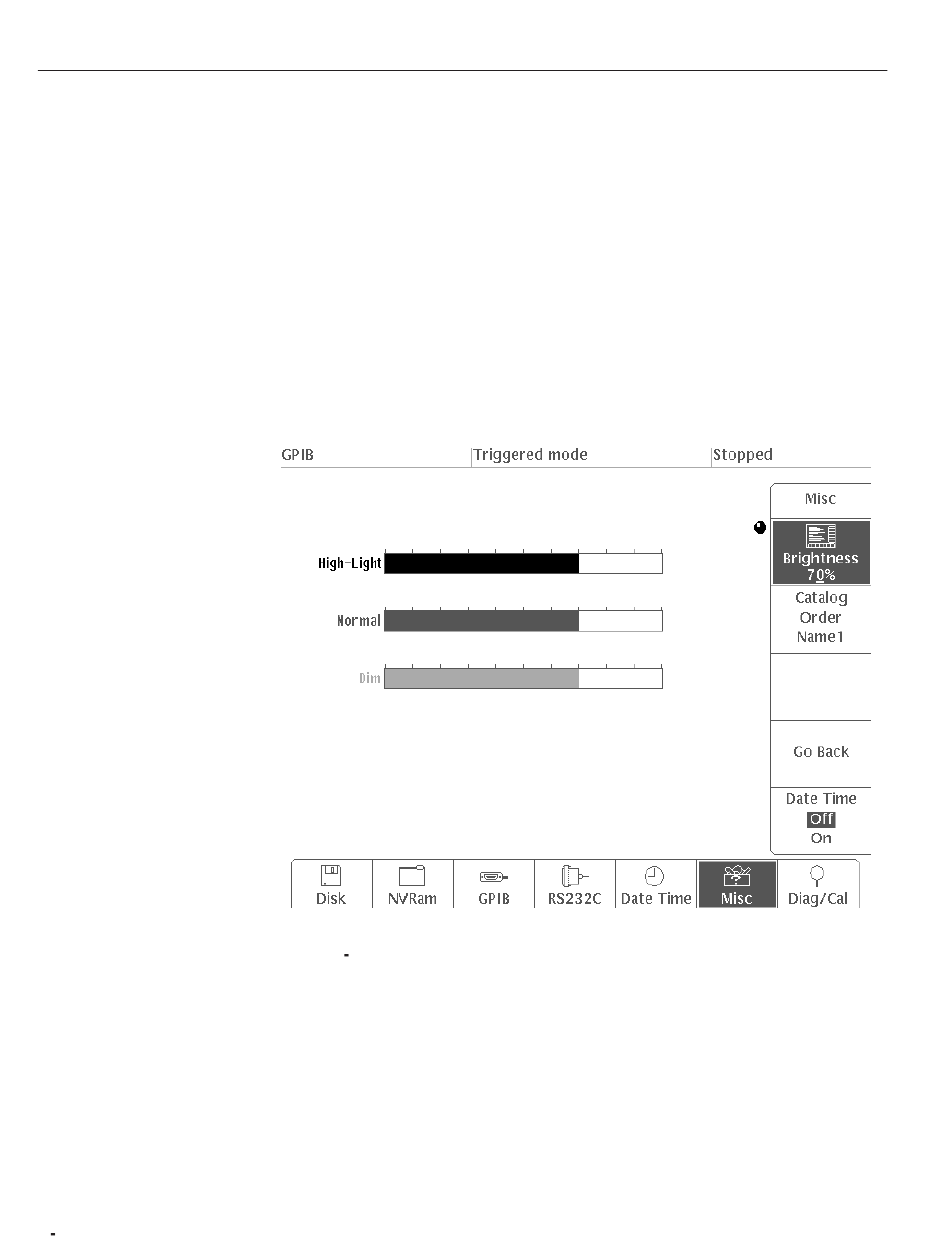

Figure 3 188: Setting the Display Brightness
Setting the Order of Files. Use this item to set the order in which files are
displayed in the catalog. You can display files sorted by file name, date and time
or file type (extension). Figure 3 -189 shows the screen when Catalog Order
has been chosen from the sub-menu.
