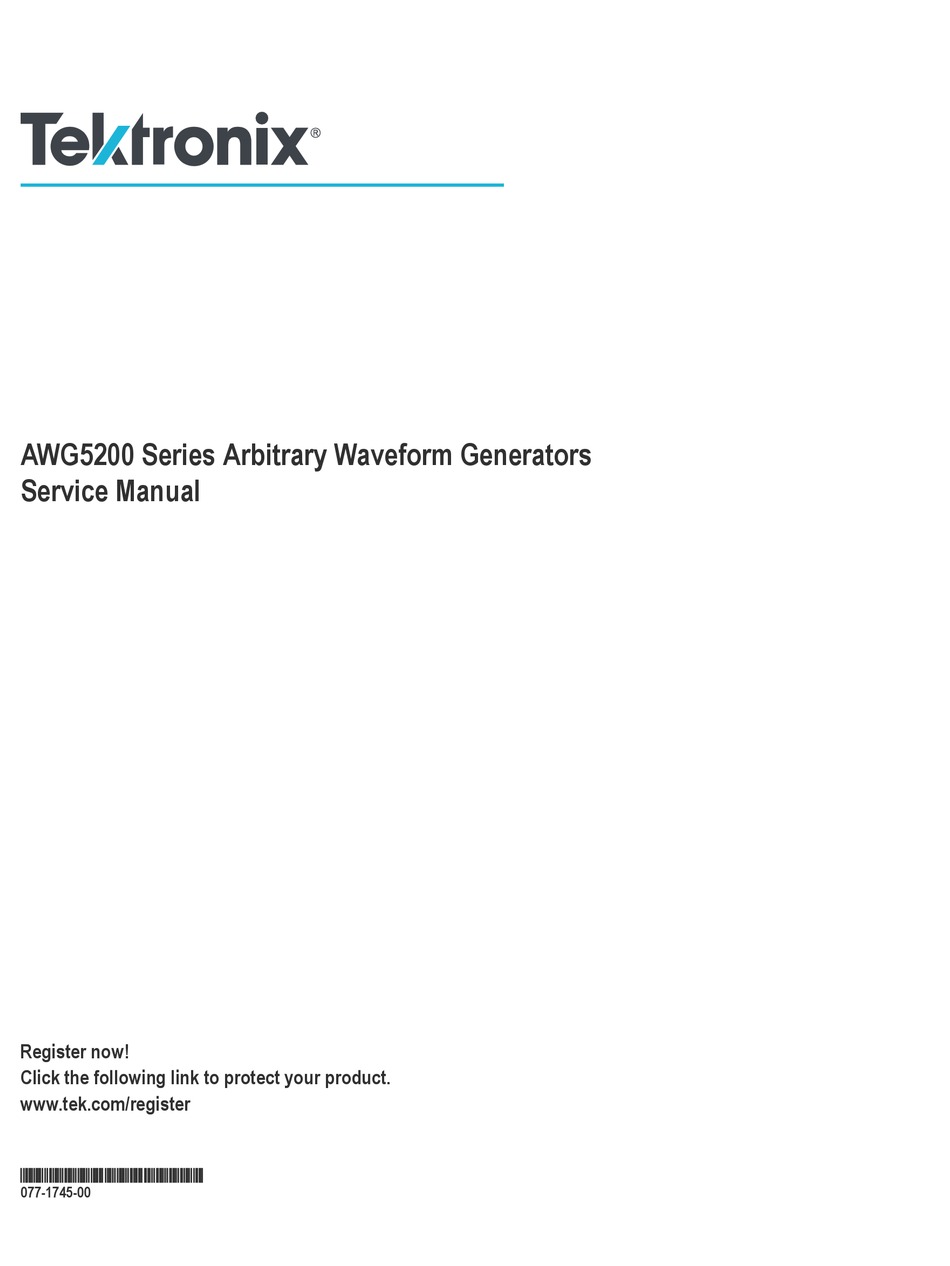

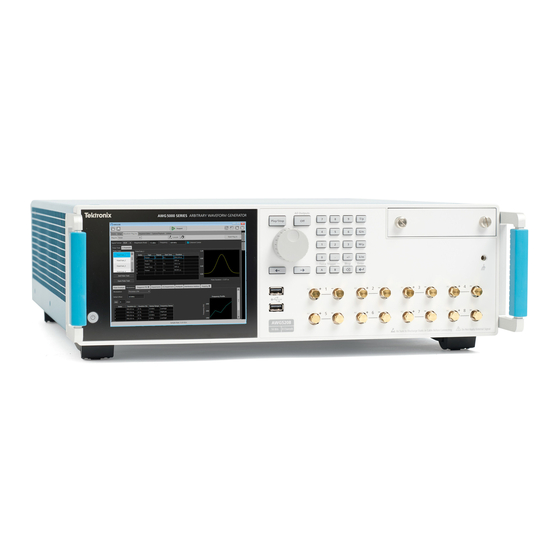

AWG5200 Series Arbitrary Waveform Generators Service Manual Register now! Click the following link to protect your product. www.tek.com/register *P 077174500 * 077-1745-00...
Using the Log directory..............................17 Files and utilities................................17 Diagnostics & Calibration window..........................17 Repackaging instructions..............................17 Replaceable parts..................................19 Parts ordering information..............................19 Module servicing.................................. 20 Abbreviations..................................20 Using the replaceable parts list............................20 Replaceable parts – external............................... 21 AWG5200 Series Arbitrary Waveform Generators Service Manual...
Use proper AC adapter Use only the AC adapter specified for this product. Connect and disconnect Do not connect or disconnect probes or test leads while they are connected to a voltage source. properly AWG5200 Series Arbitrary Waveform Generators Service Manual...
Page 5
Always place the product in a location convenient for viewing the display and indicators. environment Avoid improper or prolonged use of keyboards, pointers, and button pads. Improper or prolonged keyboard or pointer use may result in serious injury. AWG5200 Series Arbitrary Waveform Generators Service Manual...
Page 6
Warning: The product is heavy. Use a two-person lift or a mechanical aid. Use only the Tektronix rackmount hardware specified for this product. Probes and test leads Before connecting probes or test leads, connect the power cord from the power connector to a properly grounded power outlet.
(This symbol may also be used to refer the user to ratings in the manual.) The following symbols may appear on the product: AWG5200 Series Arbitrary Waveform Generators Service Manual...
Example: The Replaceable parts section includes an exploded view diagram. Safety Symbols and terms related to safety appear in the General safety summary. Product documentation The following table lists additional documents for the AWG5200 Series Arbitrary Waveform Generators. Table 1: Product documentation Document Tektronix PN...
Page 9
AWG5200 Series Arbitrary Waveform Generators into a standard 19-inch equipment rack. AWG5200 Series 077-1338-xx This document provides www.tek.com/downloads Declassification and Security instructions for clearing and Instructions sanitizing the instrument for declassification and securuty purposes. AWG5200 Series Arbitrary Waveform Generators Service Manual...
This section describes the electrical operation of the AWG5200 Series Arbitrary Waveform Generators. System overview The AWG5200 Series Arbitrary Waveform Generators provide various models with different sample rates and numbers of channels. System block diagram The picture below is a basic block diagram for a single AWG5200 arbitrary waveform generator channel.
Introduction This section contains information for technicians to service some parts of the AWG5200 Arbitrary Waveform Generators. If further service is required, send the instrument to a Tektronix Service Center. Service prerequisites To prevent personal injury or damage to the instrument, ensure the following before servicing this instrument: •...
CAUTION: To prevent getting moisture inside the instrument during external cleaning, use only enough liquid to dampen the cloth or applicator. 3. Remove remaining dirt with a lint-free cloth dampened in a general-purpose detergent and water solution. Do not use abrasive cleaners. AWG5200 Series Arbitrary Waveform Generators Service Manual...
There is no periodic lubrication required for this instrument. Remove and replace This section contains procedures for removal and installation of customer-replaceable modules in the AWG5200 series generator. All parts listed in the Replaceable Parts section of this manual is a module.
Page 14
Note: The encoder knob is a push-button knob. You must leave at least 0.050 inches of clearance between the back face of the knob and the front panel. 1. To remove the encoder knob, loosen the set screw. Do not remove the spacer and nut under the knob. AWG5200 Series Arbitrary Waveform Generators Service Manual...
The factory calibration must be performed after any procedure module that opens the front panel or rear panel. This calibration can only be performed by Tektronix personnel. If the front panel or rear panel is opened, a full factory calibration must be performed by Tektronix.
Restore factory cal button. This loads the original calibration data shipped with the instrument. Diagnostics This section contains information designed to help troubleshoot the AWG5200 series instruments to the module level. Component-level repair is not supported. Use the instrument diagnostics to help troubleshoot these instruments.
Repackaging instructions Use the following instructions to prepare your instrument for shipment to a Tektronix, Inc., Service Center: AWG5200 Series Arbitrary Waveform Generators Service Manual...
Page 18
There should be three inches of tightly packed cushioning on all side of the instrument. 3. Seal the carton with shipping tape, industrial stapler, or both. AWG5200 Series Arbitrary Waveform Generators Service Manual...
• Instrument modification number, if applicable If you order a part that has been replaced with a different or improved part, your local Tektronix field office or representative will contact you concerning any change in part number. AWG5200 Series Arbitrary Waveform Generators Service Manual...
Replaceable parts Module servicing Modules can be serviced by selecting one of the following three options. Contact your local Tektronix Service Center or representative for repair assistance. Module exchange. In some cases, you may exchange your module for a remanufactured module. These modules cost significantly less than new modules and meet the same factory specifications.
SCREW, MACHINE, 10-32X.500 PANHEAD T25, WITH BLUE NYLOK PATCH 211-1645-XX SCREW, MACHINE, 10-32X.750 FLATHEAD, 82 DEG, TORX 20, WITH THREAD LOCKING PATCH 407-5991-XX HANDLE, SIDE, TOP CAP 407-5992-XX SPACER, HANDLE, SIDE Table continued… AWG5200 Series Arbitrary Waveform Generators Service Manual...
Page 22
SCREW, MACHINE, 10-32X.750 FLATHEAD, 82 DEG, TORX 20, WITH THREAD LOCKING PATCH 367-0599-XX HANDLE ASSY, BASE AND GRIP, SAFETY CONTROLLED 348-1950-XX FOOT ASSEMBLY, FLIP, SAFETY CONTROLLED 348-2199-XX CUSHION; FOOT, STACKING 377-0628-XX KNOB, WEIGHTED INSERT 366-0930-XX KNOB, ASSY 214-5089-XX SPRING;KNOB RETAINER AWG5200 Series Arbitrary Waveform Generators Service Manual...
