AWG2021 User Manual
AWG2021
AWG2021

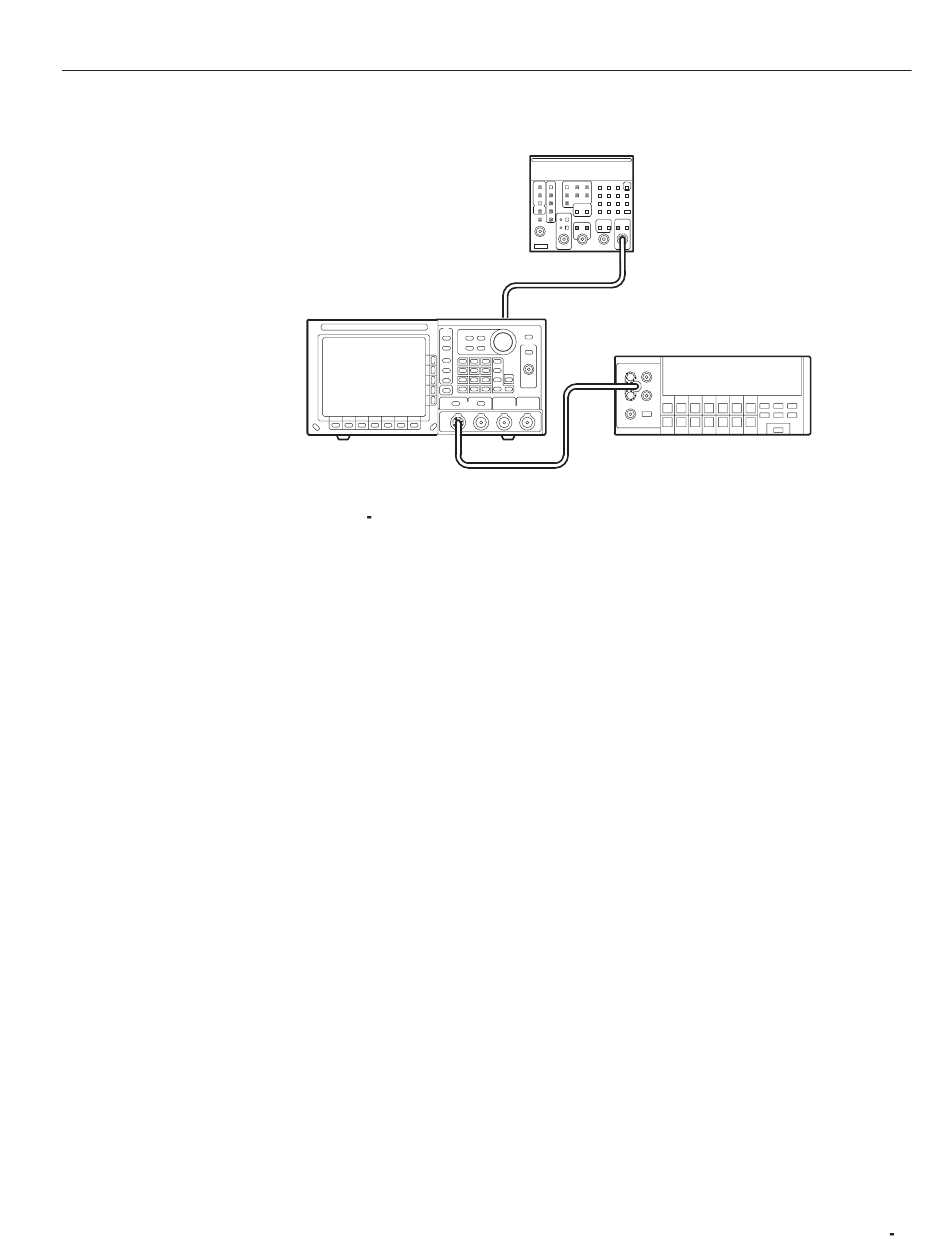

Figure C 11: External AM Operation Initial Test Hookup
c. Set DMM controls:
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .
Range . . . . . . . . . . . . . . . . . . . . . . . . . .
Inputs . . . . . . . . . . . . . . . . . . . . . . . . . .
d. Set function generator controls:
Function . . . . . . . . . . . . . . . . . . . . . . . .
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parameter
Frequency . . . . . . . . . . . . . . . . . . . .
Amplitude
Offset . . . . . . . . . . . . . . . . . . . . . . .
Output . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Set the AWG2021 controls and select the waveform file:
a. Initialize AWG2021 controls: Push UTILITY!Misc!Config...!Re-
set to Factory!O.K.
b. Modify AWG2021 default settings:
H Push MODE!Autostep.
c. Select waveform file:
H Select Select Autostep File from the side menu to choose a
waveform file for CH1.
Appendix C: Performance Verification
Function Generator
FG 5010
. . . . . . . . . . . . . . . . . . .
DMM
8842A
VDC
20
Front
Square
Continuous
1 kHz
0 V
1 V
Off
C 23
