Appendix D: Sample Waveform Library
Waveform for Magnetic
Disk Readout Signal
(MDSK_RD.WFM)
D 18
Made with the convolution waveform editor (Option 09).

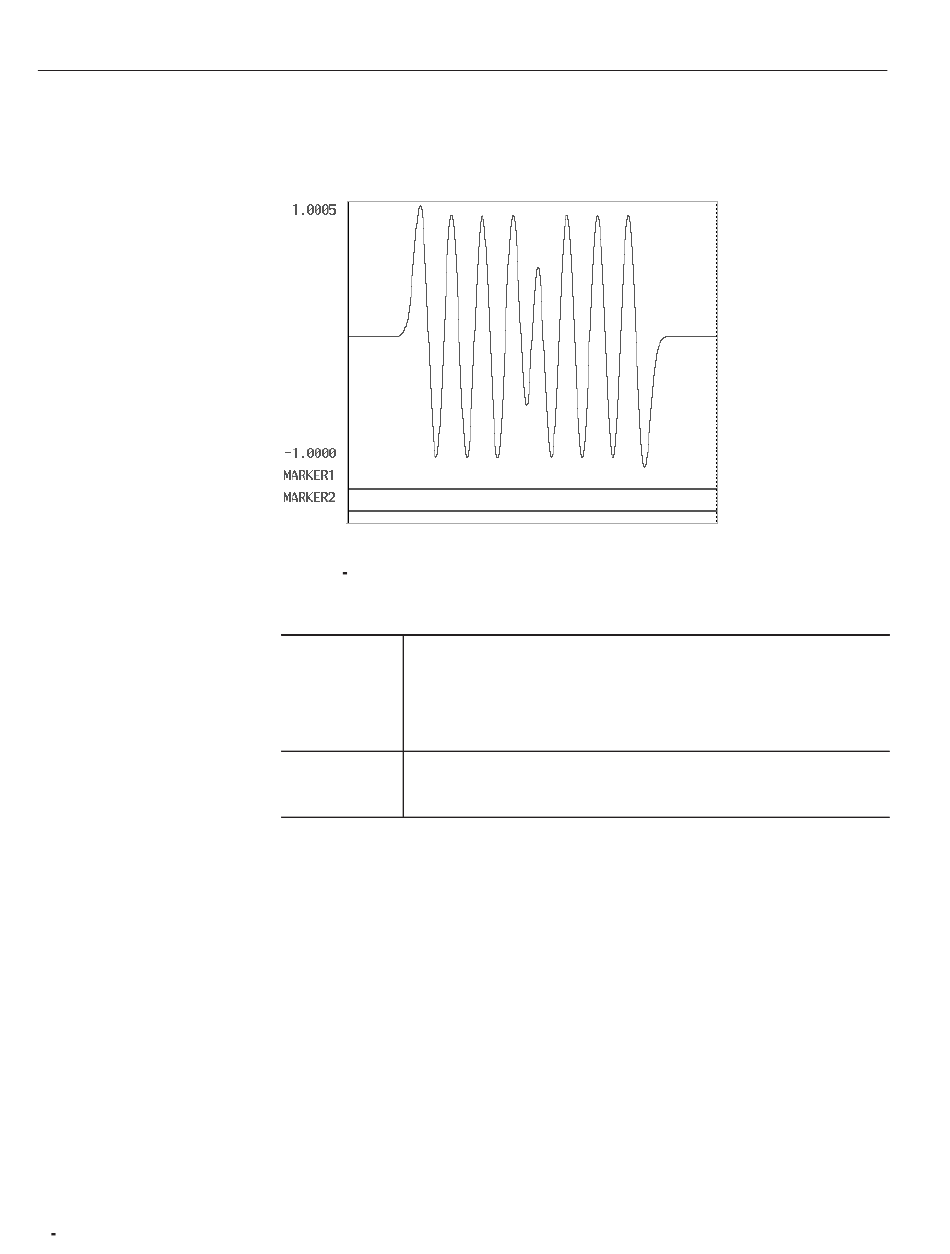

Figure D 16: Waveform for Magnetic Disk Readout Signal
Description Created using the waveform editor and the optional convolution waveform
creation function.
This is the waveform for reading stored data written with MDSK_WR.WFM.
This is a waveform created assuming a Gaussian pulse (GAUSS_P.WFM)
with a system impulse response.
Settings Waveform points: 768
Clock frequency: 100 MHz
Output time: 7.68 ms
