EDIT Menu
Table Display Screen
3 132

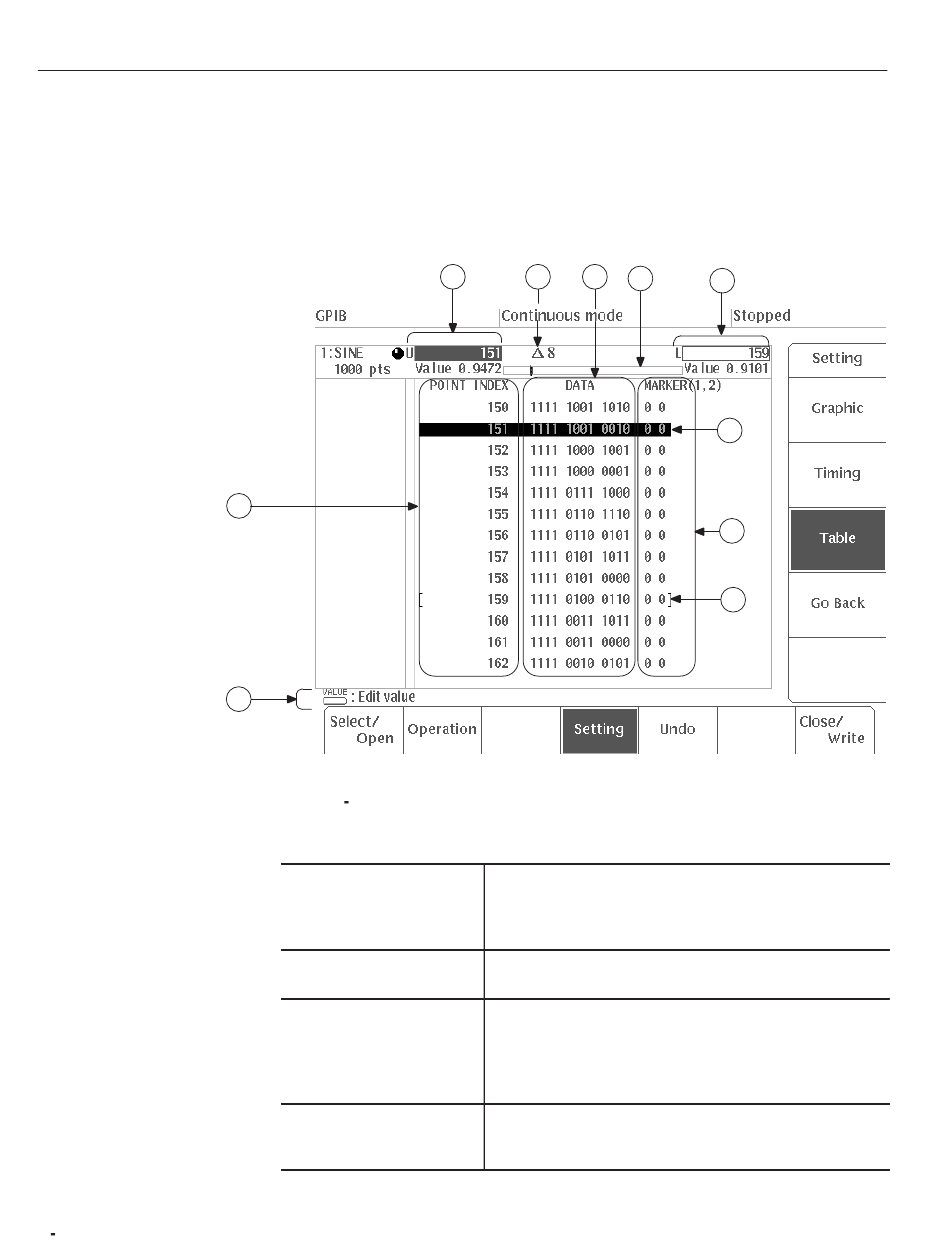

Figure 3 -94 shows the table display screen. This section will describe each
portion of the screen; however, descriptions of areas that are identical to the
graphic display will be omitted. See "Graphic Display Screen" for a description
of the graphic display.
9
10
Figure 3 94: Table Display Screen
(1) U
Value
(2) ∆
(3) Data
(4) Horizontal Scroll
Indicator
1 2
3
Shows the data value (Value) indicated by a real number and
the time or point count (U) for the current position of the upper
line cursor. The value in the displayed inverted field can be
changed using the numeric keys or the general purpose knob.
Shows the time or point count between the upper and lower
line cursors.
This shows the waveform data for the point count or time. The
waveform data can be displayed as binary, hexadecimal, or
decimal data, depending which base has been selected. If
binary numbers have been selected, the left end of the data is
the most significant bit (MSB).
Indicates which portion of the waveform is currently displayed
on the screen. The displayed inverted portion of the indicator
shows the portion of the waveform currently being displayed.
4
5
6
7
8
