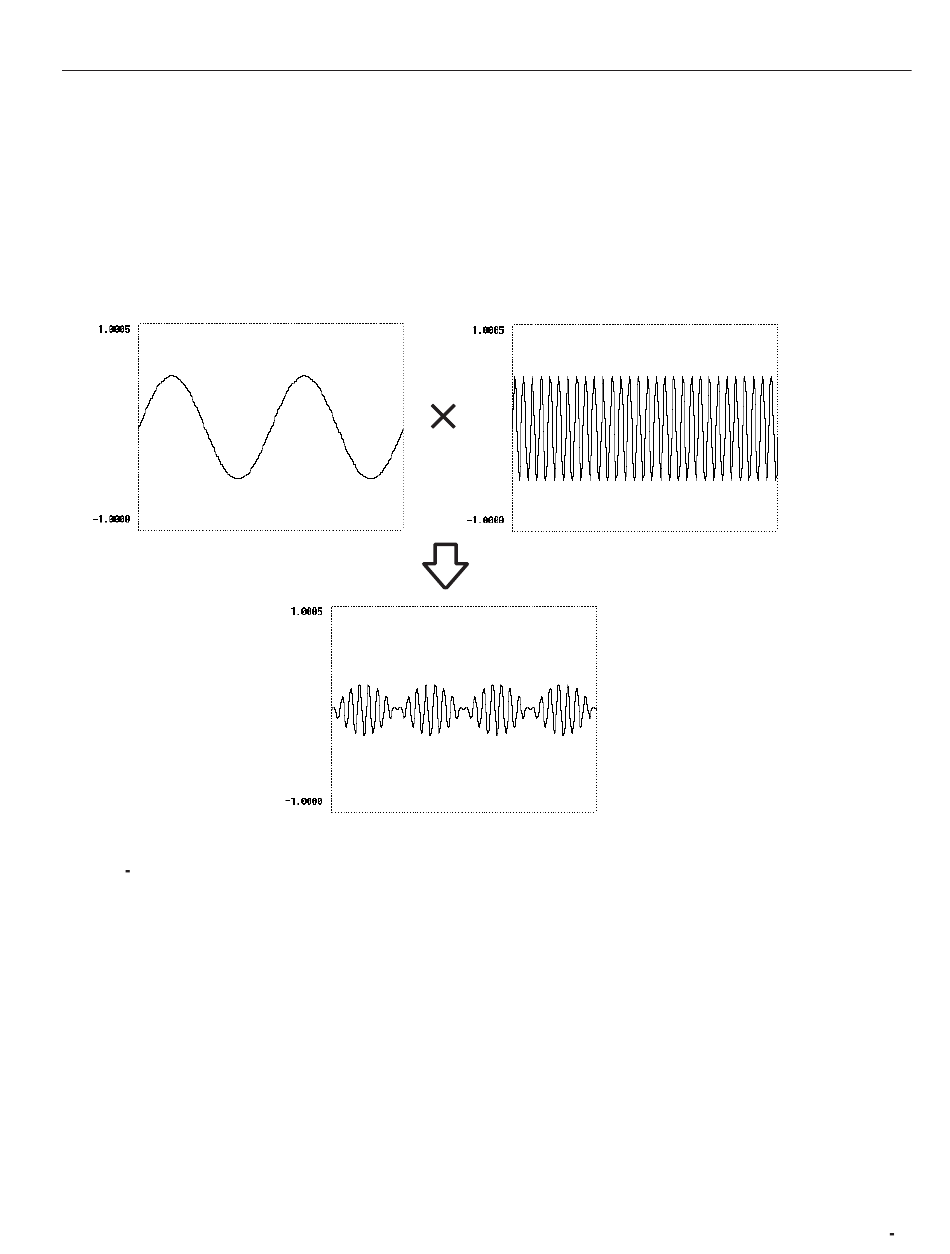

Figure 3 22: Multiplying Sine Waves
Editing Waveforms in
Graphic Display
AWG2021 User Manual
4. Select Amplitude from the side menu. Using the numeric keys or the
general purpose knob, set the p-p amplitude for the sine wave to 1.
5. Select Execute from the side menu.
When you select Execute, the sine wave between the vertical bar cursors
will be multiplied by the different frequency sine wave. See Figure 3 -22.
When Operation is selected with the waveform editor set to graphic display, it is
possible to edit the waveform data in various ways.
The side menu has three pages. Select More to switch the side menu to the next
page. The following is a list of the items in the side menu and their functions.
Cut
Copy to Buffer
Paste from Buffer
Draw...
Shift...
Scale...
Cutting waveforms
Copying waveforms
Pasting waveforms
Draw function
Shift function
Scaling function
EDIT Menu
