If smoothing is turned off, linear interpolation will be performed and the
points that have been drawn and the curve outside the area marked by the
vertical cursors will be connected using straight lines.
18. Select Execute from the sub-menu.
The points between the vertical cursors will be connected in a smooth curve
(using spline interpolation), as shown in Figure 2 -34.

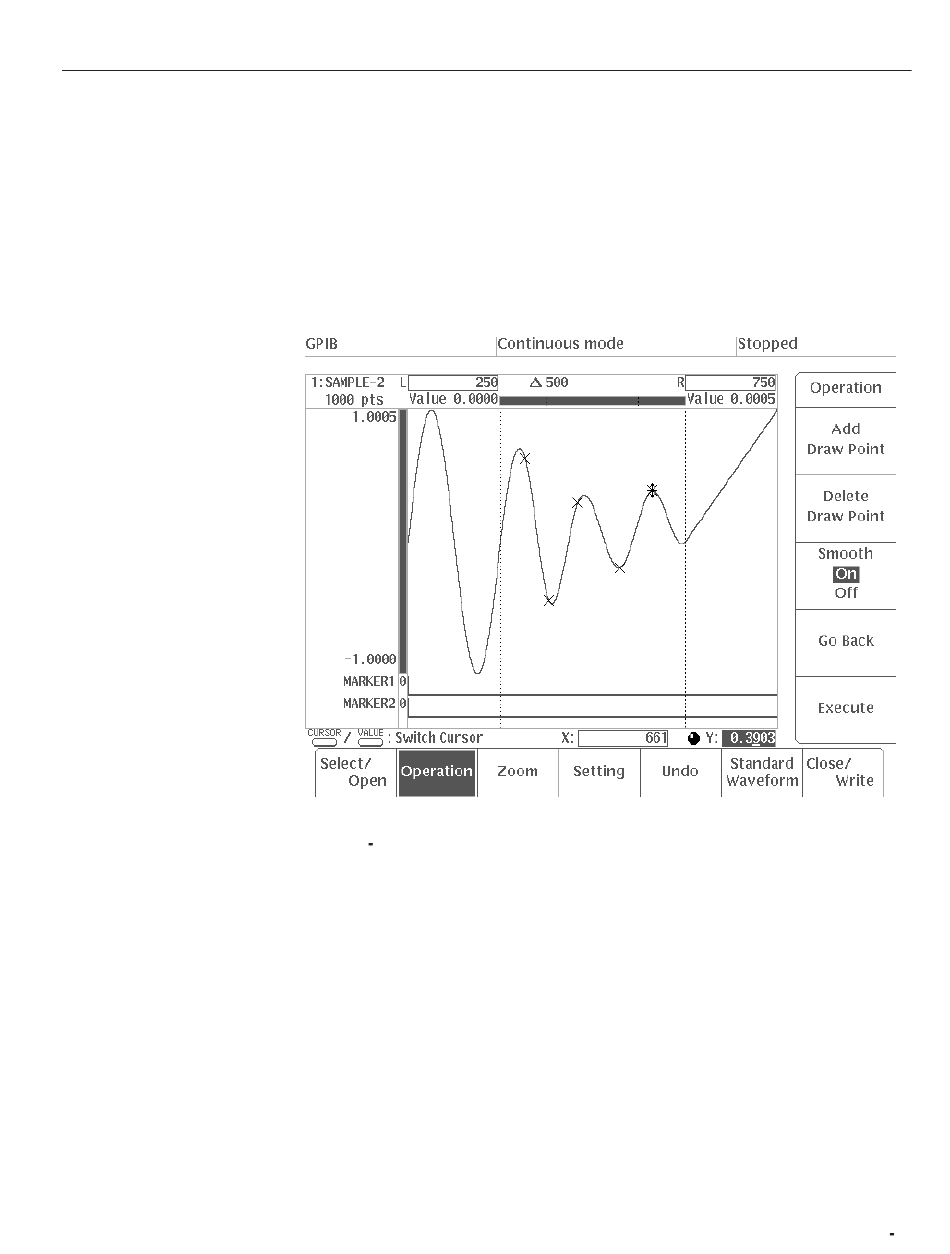

Figure 2 34: Connecting the Points
19. Select Close/Write from the bottom menu.
20. Select Write and Close from the side menu.
The data for the SAMPLE–2 waveform file will be updated and the initial
EDIT menu will reappear.
