EDIT Menu
3 64
Operation (More 3 of 3)
To derive the Absolute value for the amplitude of a sine wave between the
vertical bar cursors:
1. Create the sine wave to be subjected to Absolute calculation. Figure 3 -41
shows the sine wave before calculations are performed.

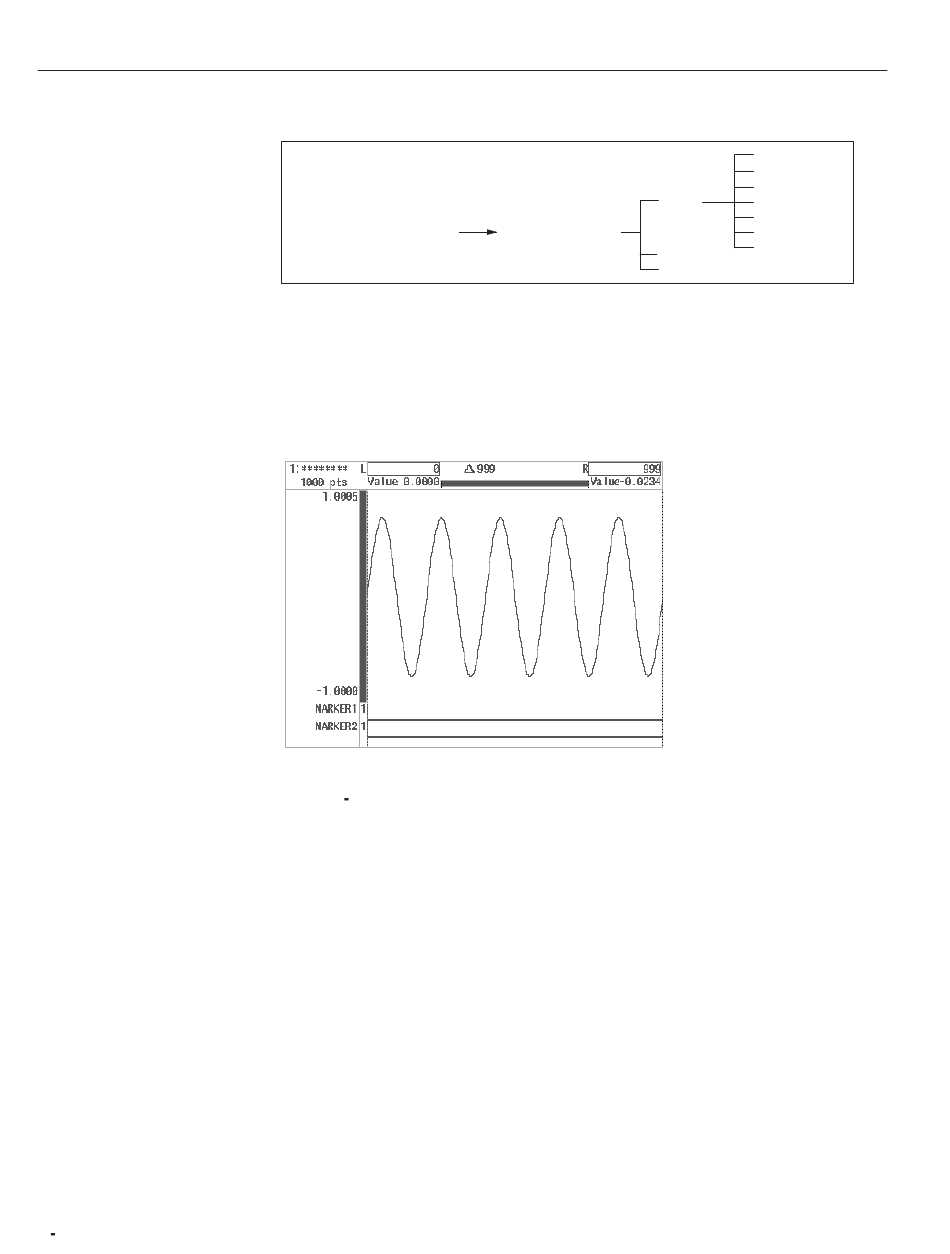

Figure 3 41: Waveform Example before Calculation
2. Press the CURSOR button on the front panel.
3. Using the general purpose knob, move the left and right vertical bar cursors
to define the area for calculation.
4. Select Single Waveform Math... from the third page of the side menu
(More 3 of 3).
5. Press the Type button in the sub-menu and select Absolute.
6. Select Execute from the sub-menu. The absolute value will be derived for
the section of the waveform located between the vertical bar cursors.
Figure 3 -42 shows the waveform after calculation.
Type
Single Waveform
Math...
Go Back
Execute
Absolute
Square
Cube
Square Root
Normalize
Integral
Differential
