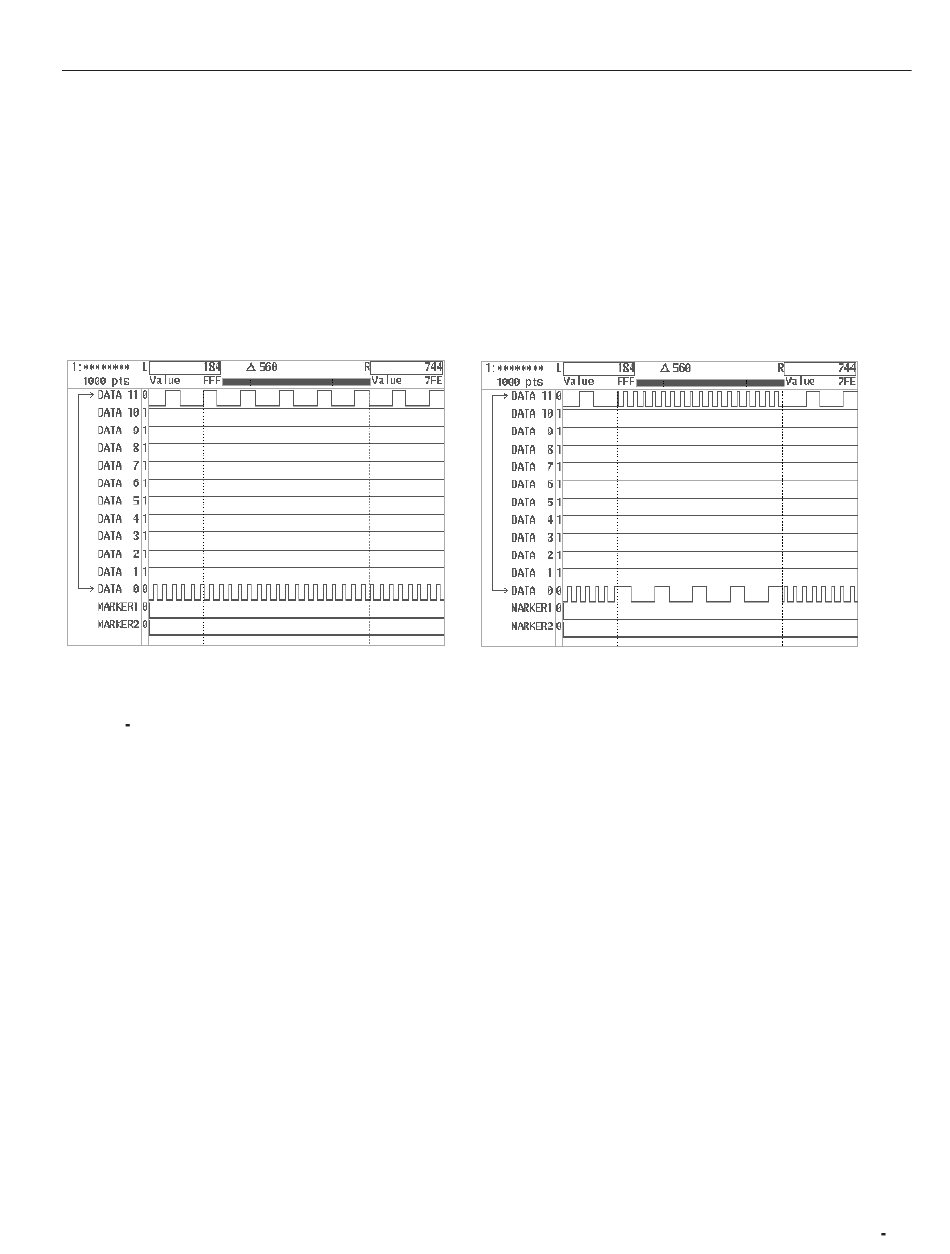

Figure 3 87: Exchanging Lines
Applying Logical
Operations to Lines
AWG2021 User Manual
2. Select Source from the sub-menu. Turning the general purpose knob, select
one of the data lines or marker for data interchange.
3. Select Destination from the sub-menu. Turning the general purpose knob,
select the other data line or marker for data interchange.
4. Select Execute from the sub-menu. The data will be exchanged as desig-
nated. Figure 3 -87 shows the screen before and after the data on line DATA
0 is exchanged with the data on line DATA 11.
Before
5. Select Go Back from the current sub-menu. The system returns from the
Exchange Line... sub-menu to the previous side menu.
Use Logical Function... to apply a logical operation to the data between the
vertical bar cursors on one data line with the data on another line and replace the
data on the designated line with the result. The following diagram shows the
menu configuration for the Logical Function... item.
EDIT Menu
After
3 121
