EDIT Menu
3 84
0

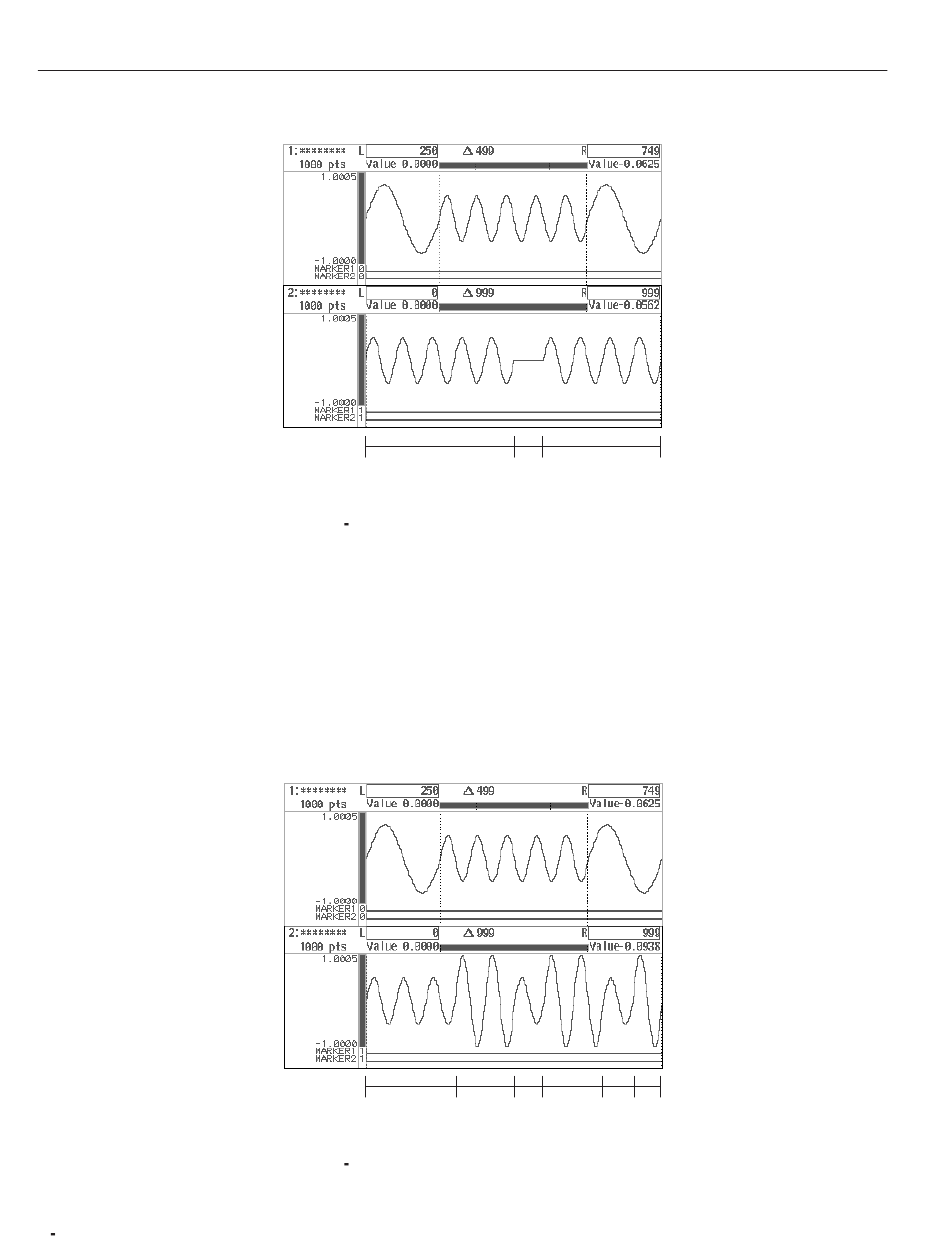

Figure 3 65: Waveform Copying (number of points in waveform < Interval value)
If the number of points in the waveform between the vertical bar cursors in the
copy source is greater than the value set for Interval, the overlapping portion
will be added to the waveform. Figure 3 -66 shows an example in which the
waveform point size has been set to 500 and the Interval value has been set to
300. The copied waveform will be pasted at intervals of 300, starting from points
0, 300, 600 and 900, and so the waveform will overlap in phase between points
300 – 499, 600 – 799 and 900 – 999. As a result, the amplitude in these areas
will be doubled.
300
0
Figure 3 66: Waveform Copying (number of points in waveform > Interval value)
500 600 999
500 600 800 900 999
