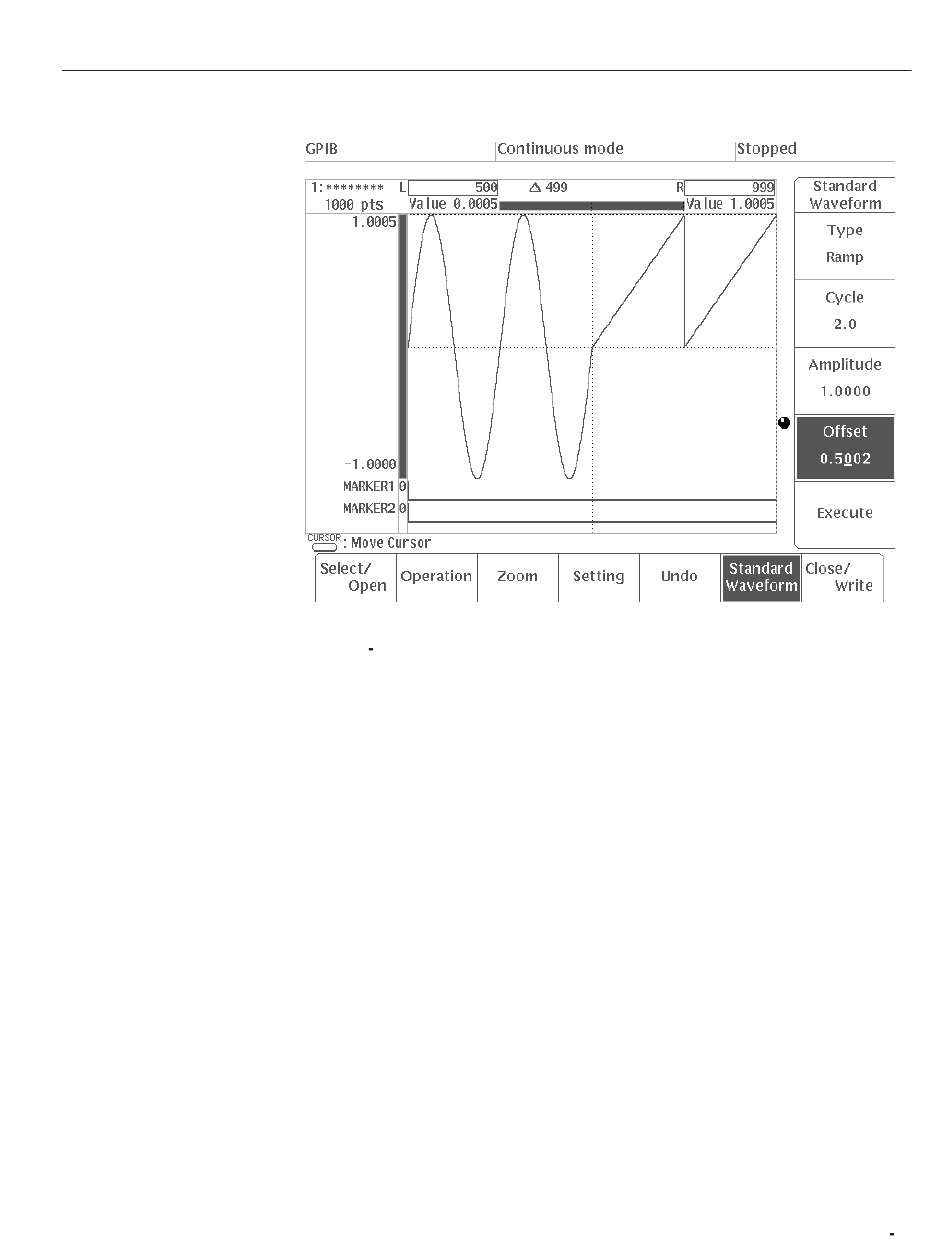

Figure 2 28: Creating a Ramp Waveform
This completes the waveform creation. Next, name the waveform file and exit
the waveform editor.
22. Select Close/Write from the bottom menu.
23. Select Write and Close from the side menu.
The display used to enter the file name will appear.
24. Input SAMPLE–1 as the file name. Use the general purpose knob to select S
from the character menu.
Then press the VALUE button. S is inserted into the file name input column.
In the same manner, input A, M, P, L, E, –, 1 (see Figure 2 -29).
