Waveform for Magnetic
Disk Writing Signal
(MDSK_WR.WFM)
AWG2021 User Manual
Made with the waveform editor.

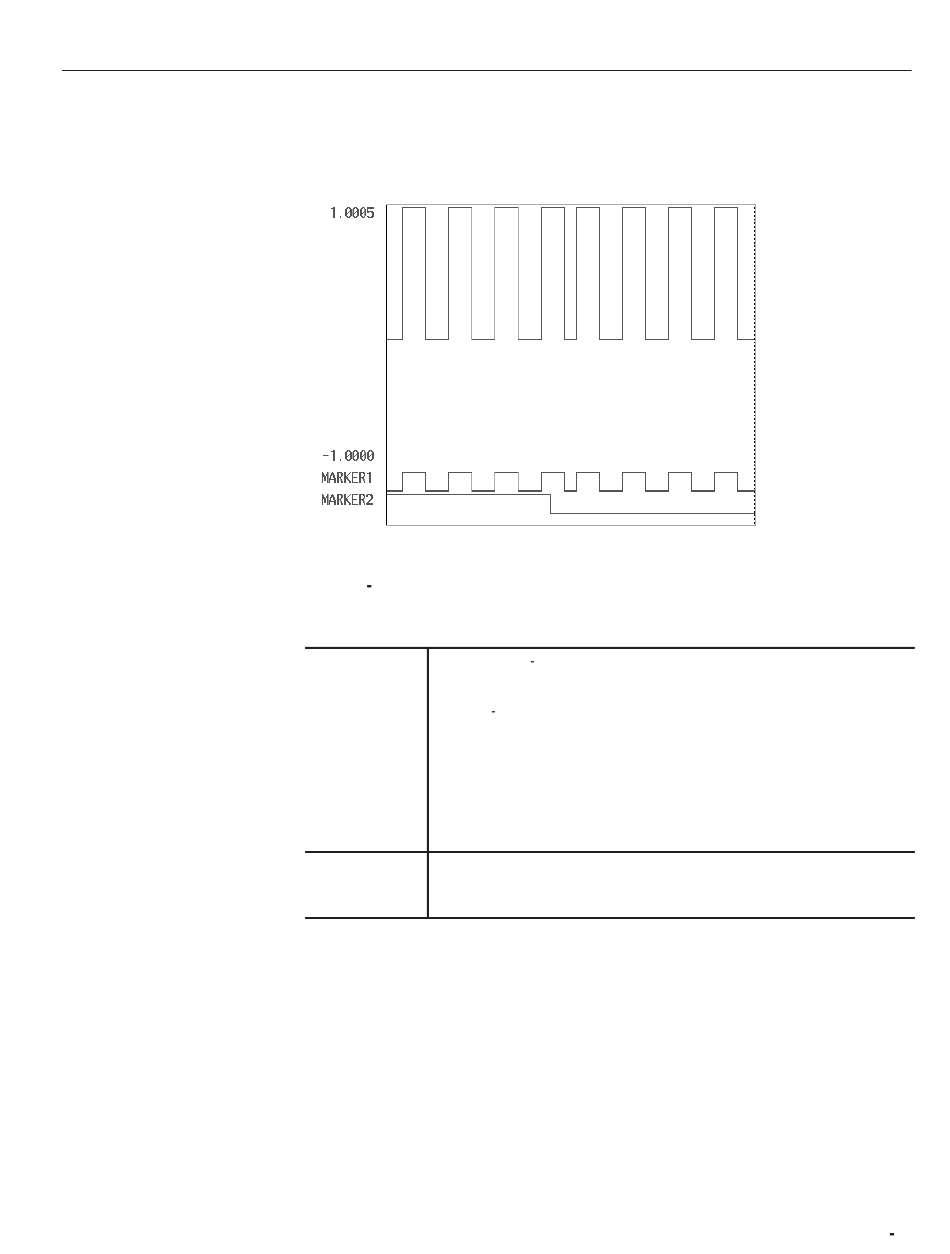

Figure D 17: Waveform for Magnetic Disk Readout Signal
Description Created a worst case pattern with NRZI modulation using the bit set
function of the waveform editor timing display.
*Worst case pattern (0101010110101010)
Pattern length = 32
Points/step = 8
The encoding is NRZI
A signal with the same pattern is set for the MARKER1 as well.
Settings Waveform points: 512
Clock frequency: 100 MHz
Output time: 5.12 ms
