AWG2021 User Manual

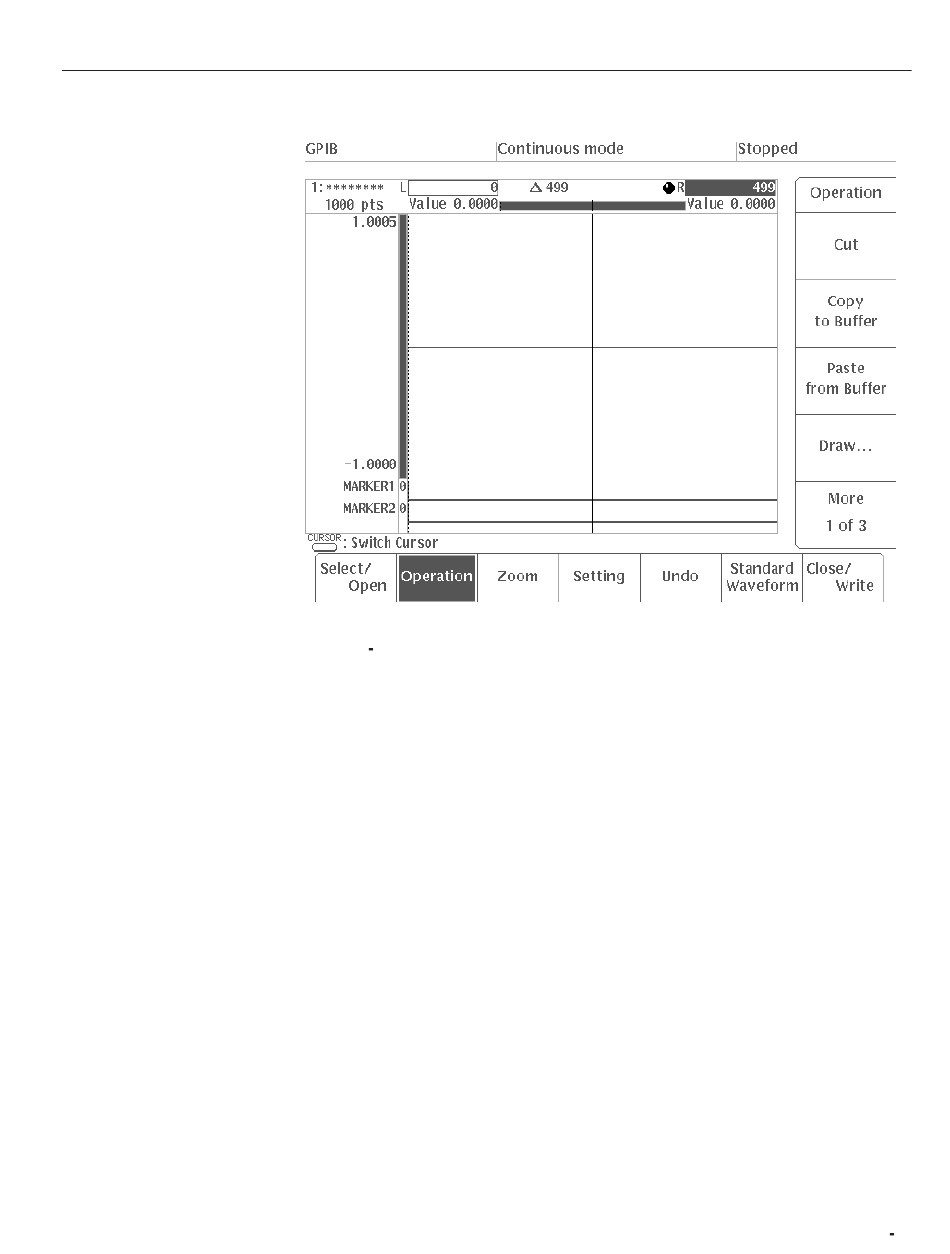

Figure 2 26: Setting the Point Value for the Right Side Vertical Bar Cursor
5. Select Standard Waveform from the bottom menu.
6. Select Type from the side menu.
7. Turn the general purpose knob to select Sine.
8. Select Cycle from the side menu.
9. Press "2" and ENTER in that order to set the number of cycles for the sine
wave to 2.
10. Select Execute from the side menu.
A two-cycle sine waveform is created between the vertical bar cursors (see
Figure 2 -27).
Operating Examples
2 39
