Convolution Waveform
Editor Menu Display
AWG2021 User Manual

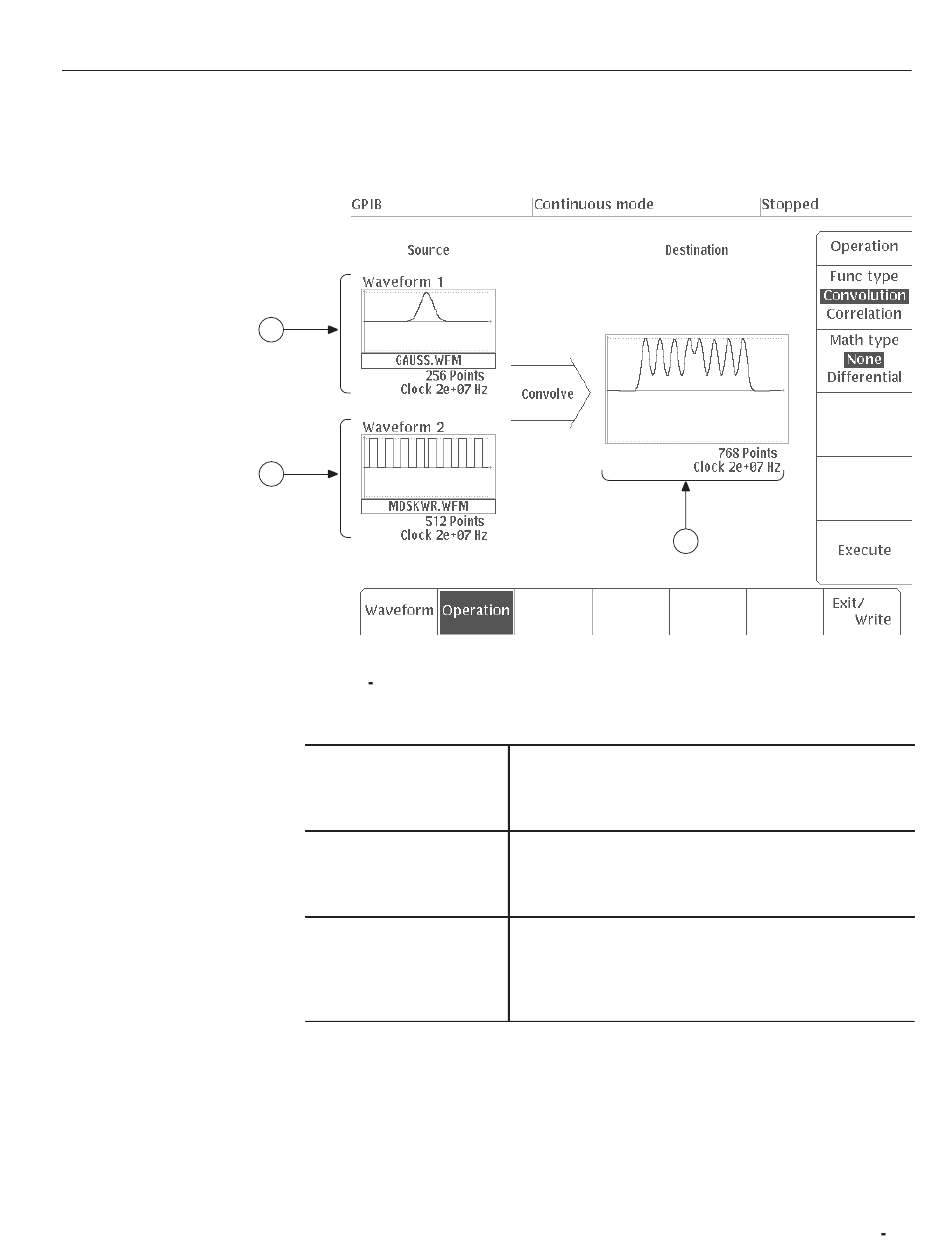

Figure 3 -137 shows the general convolution waveform editor display.
1
2
Figure 3 137: Convolution Waveform Editor CRT Display
(1) Source Waveform1
Display Area
(2) Source Waveform2
Display Area
(3) Destination Waveform
Display Area
3
When the waveform file for operation is selected from internal
memory, the waveform for that file will be displayed in this area
along with the file name, clock frequency and number of points
making up the waveform.
When the other waveform file for operation is selected from
internal memory, the waveform for that file will be displayed in
this area along with the file name, clock frequency and number
of points making up the waveform.
The result of operations for Waveform1 and Waveform2 will
be displayed in this area as a waveform. The waveform point
size will be the sum of the point sizes for Waveform1 and
Waveform2. When the data is saved, the clock frequency for
Waveform1 will be saved to that file.
