AWG2021 User Manual
8. Using the general purpose knob, select Add Noise.
9. Select Amplitude from the side menu.
10. Press ".", "3", and ENTER in that order.
11. Select Execute from the side menu.

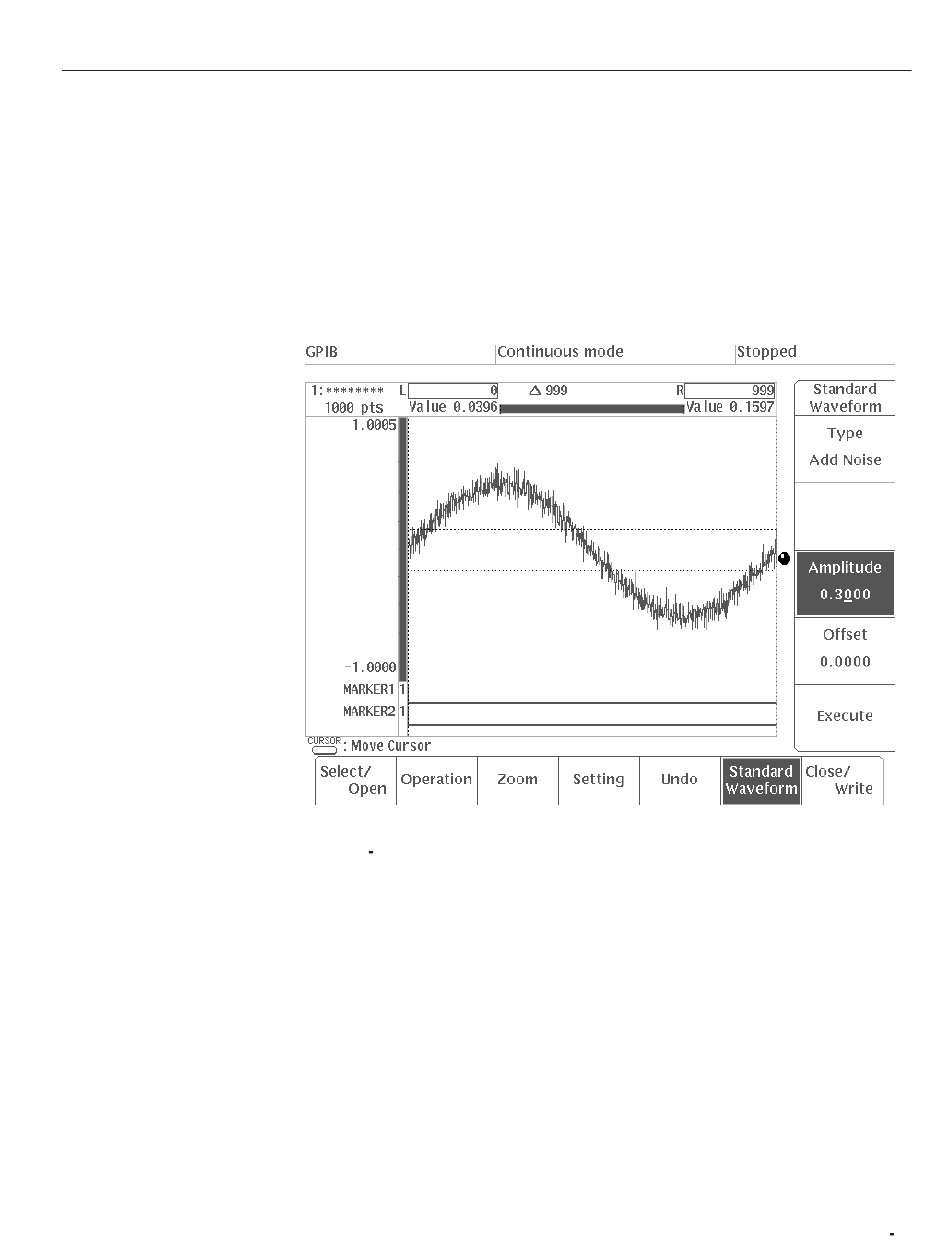

Noise will be added to the sine wave, as shown in Figure 2 -36.
Figure 2 36: Sine Wave With Noise Added
12. Select Close/Write from the bottom menu.
13. Select Write and Close from the side menu.
14. Make SAMPLE–3 the file name. See Step 24 in the waveform file creation
procedure for instructions on how to enter the file name.
Operating Examples
2 49
