5. Repeat Steps 2 through 4 to enter SAMPLE–4.WFM in the second line of
the Destination list. The repetition count for this file should be set to 1;
since this is the default value, there is no need to change it.

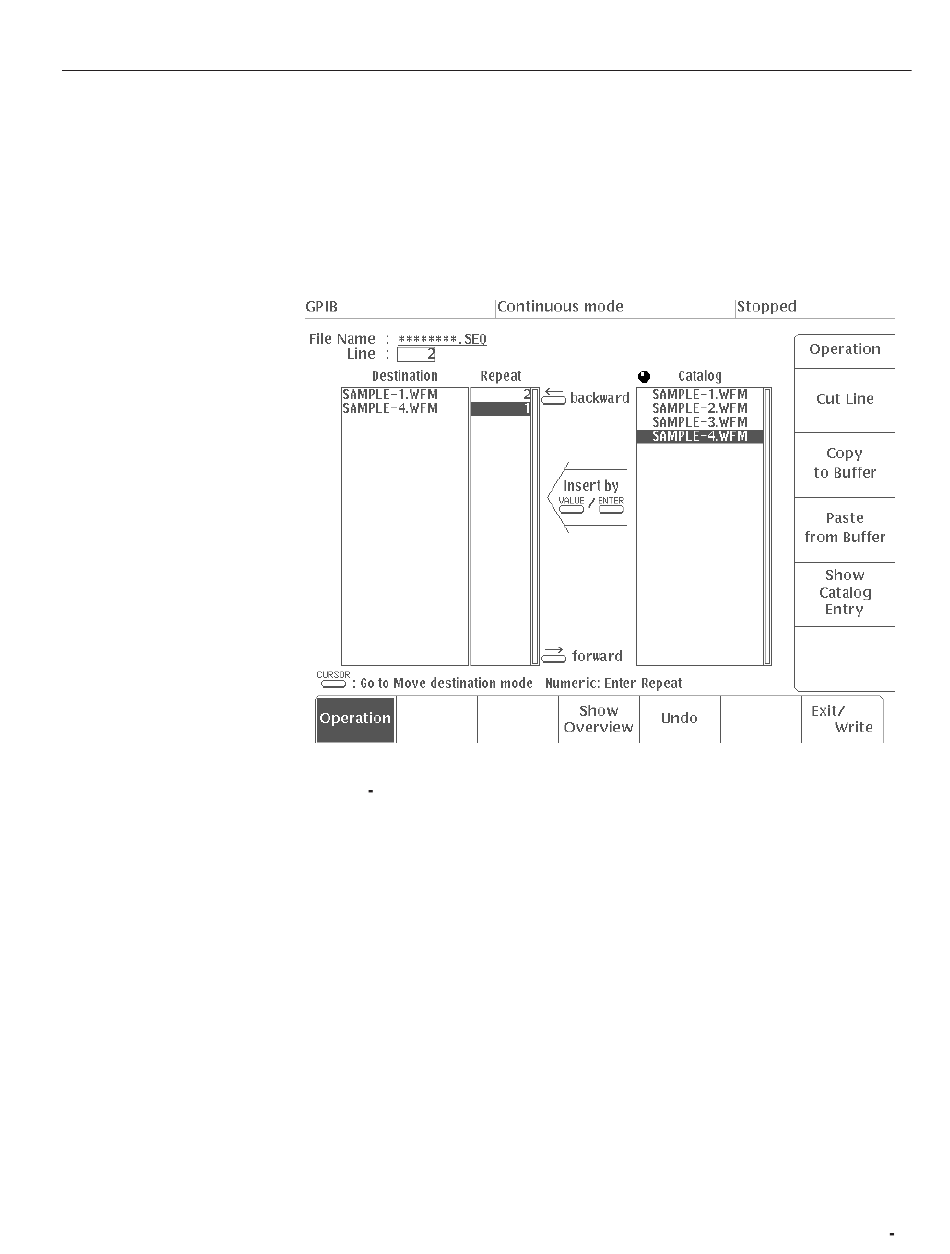

This completes the creation of the waveform sequence file. Figure 2 -42 shows
the resultant display.
Figure 2 42: Sequence Example
6. Select Show Overview from the bottom menu to verify the sequence
waveform.
The sequence waveform is combined as the sequence: SAMPLE–1.WFM
twice and SAMPLE–4.WFM once. See Figure 2 -43.
