EDIT Menu
3 168
Catalog File Waveform Display. Use this item to observe the waveforms of the
files being assembled into the sequence.
1. Select Operation from the bottom menu.
2. Use the general purpose knob to select the file you want to observe from the
Catalog.
3. Select Show Catalog Entry from the side menu.
The waveform is displayed and the file name, the vertical axis voltage, the
number of waveform points, and the clock frequency data are shown.

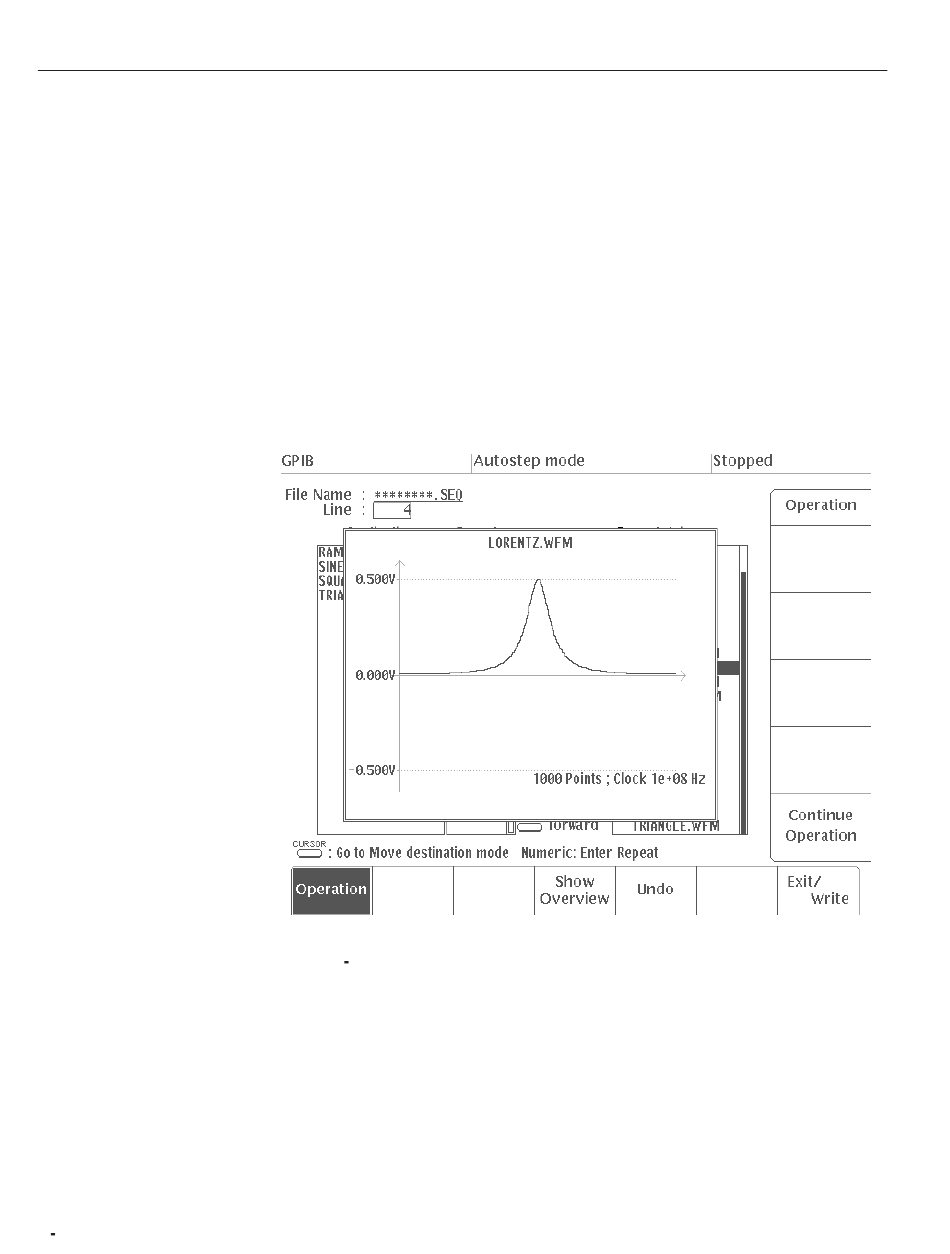

Figure 3 -122 is an example of waveform display for when Show Catalog
Entry is selected.
Figure 3 122: Example of Waveform Display When Show Catalog Entry is Selected
4. After observing the waveform, select Continue Operation from the sub
menu to return to the sequence editor.
Inserting a Sequence File. Select a sequence file in the Catalog to display the
Insert Contents of Sequence item in the side menu. When this item is selected,
the contents of the sequence file are developed and inserted into the Destination
list.
