LOAD/SAVE Menu
Selecting Instruments
Made by Other
Manufacturers
3 256
created with the name shown in the "Loaded as" column. Figure 3 -175
shows the GPIB Source list.

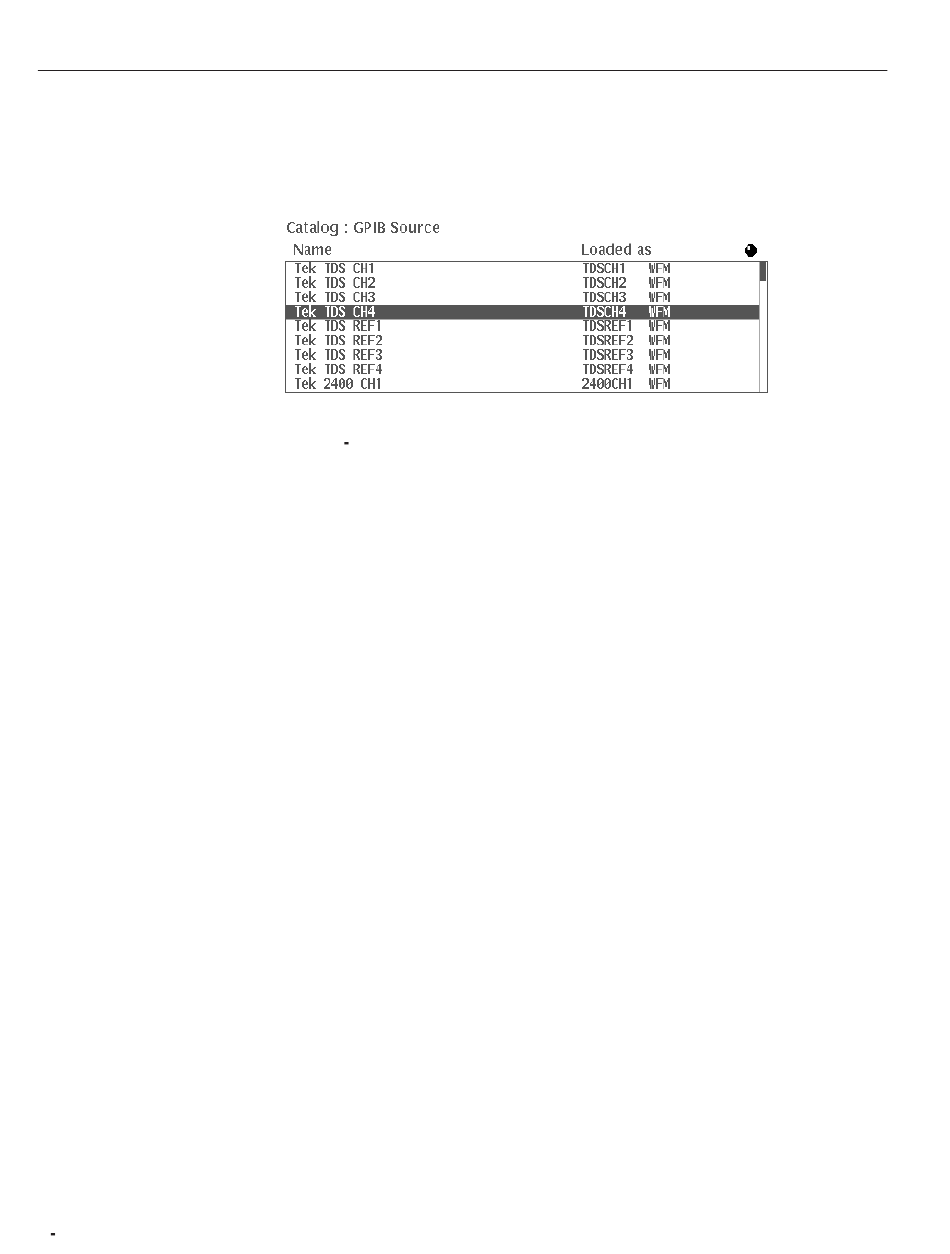

Figure 3 175: GPIB Source List
7. Choose Select Source Address from the side menu and, using the general
purpose knob, select the GPIB address for the instrument from which data is
to be loaded.
8. Select Load from the side menu.
Data transfer will begin and the transferred file will be added to the list of
files stored in internal memory at the top of the screen, under the name
shown in the "Loaded as" column.
Data transfers can include not only waveform data but output settings such
as clock frequency and amplitude as well. When the clock frequency and
amplitude exceed the allowable setting range in the SETUP menu, these
values will be replaced with the nearest allowable value (in other words, the
maximum or minimum value).
When Load Without Preamble from the side menu is selected, waveform
data is loaded by itself, i.e. without output settings. In such cases, the output
parameters are set to their default values.
The following procedure is used to select digital storage oscilloscopes made by
other manufacturers. The procedure up to Step 5 is the same as that for "Loading
waveform data", above.
1. Using the general purpose knob, select Others... from the GPIB Source list.
2. Press the Load button in the side menu. A list of models will appear.
